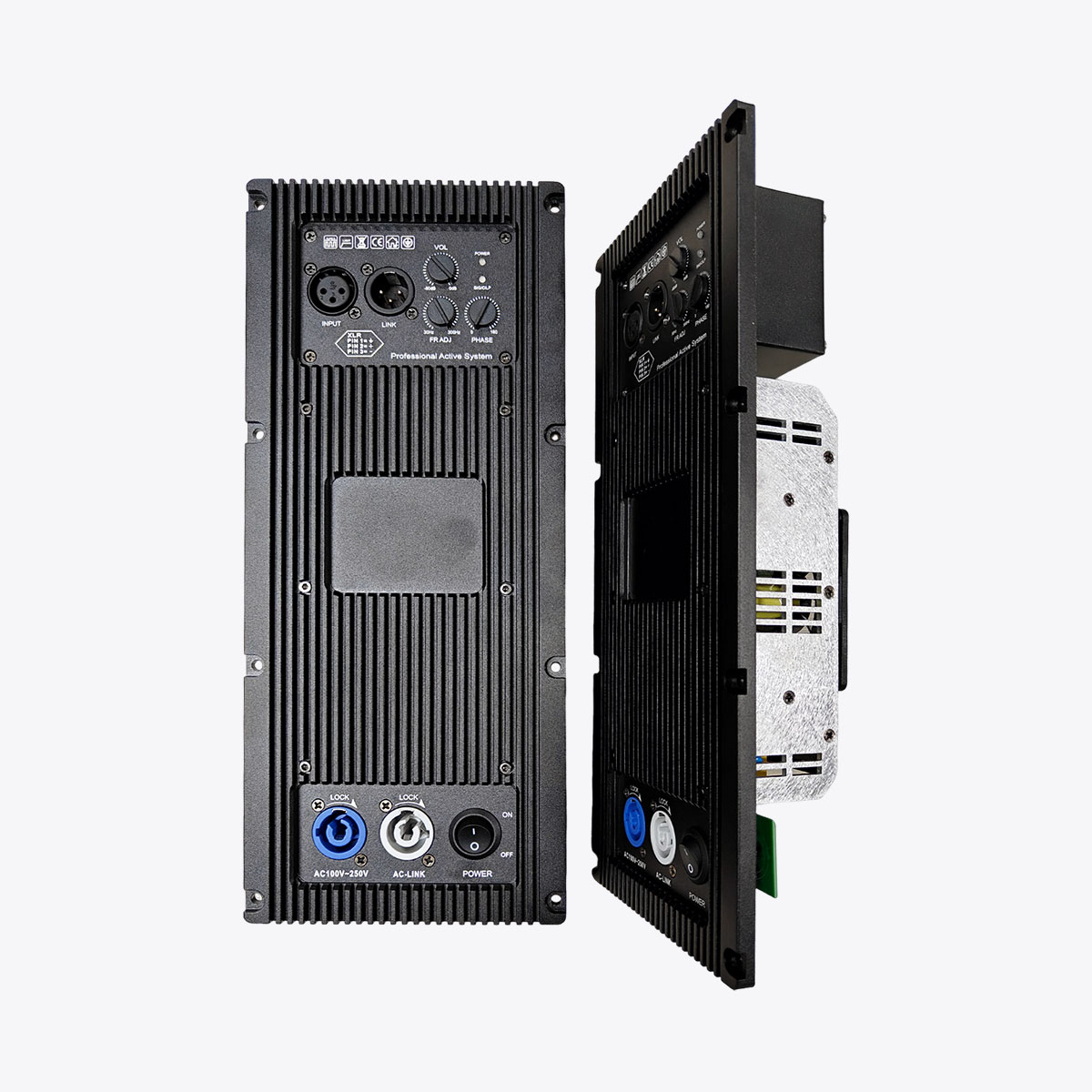

SUB II Series

Pure Amplifier Active Speaker Amplifier Module for Single&Double Subwoofer

  • 600W 800W 900W 1200W 1500W 2000W 2*1000W optional.
  • Widely used Single&Double Subwoofer 12", 15", 18", 2*15", 2*18".
  • Professional-grade audio class D amplifier circuit.
  • A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection.

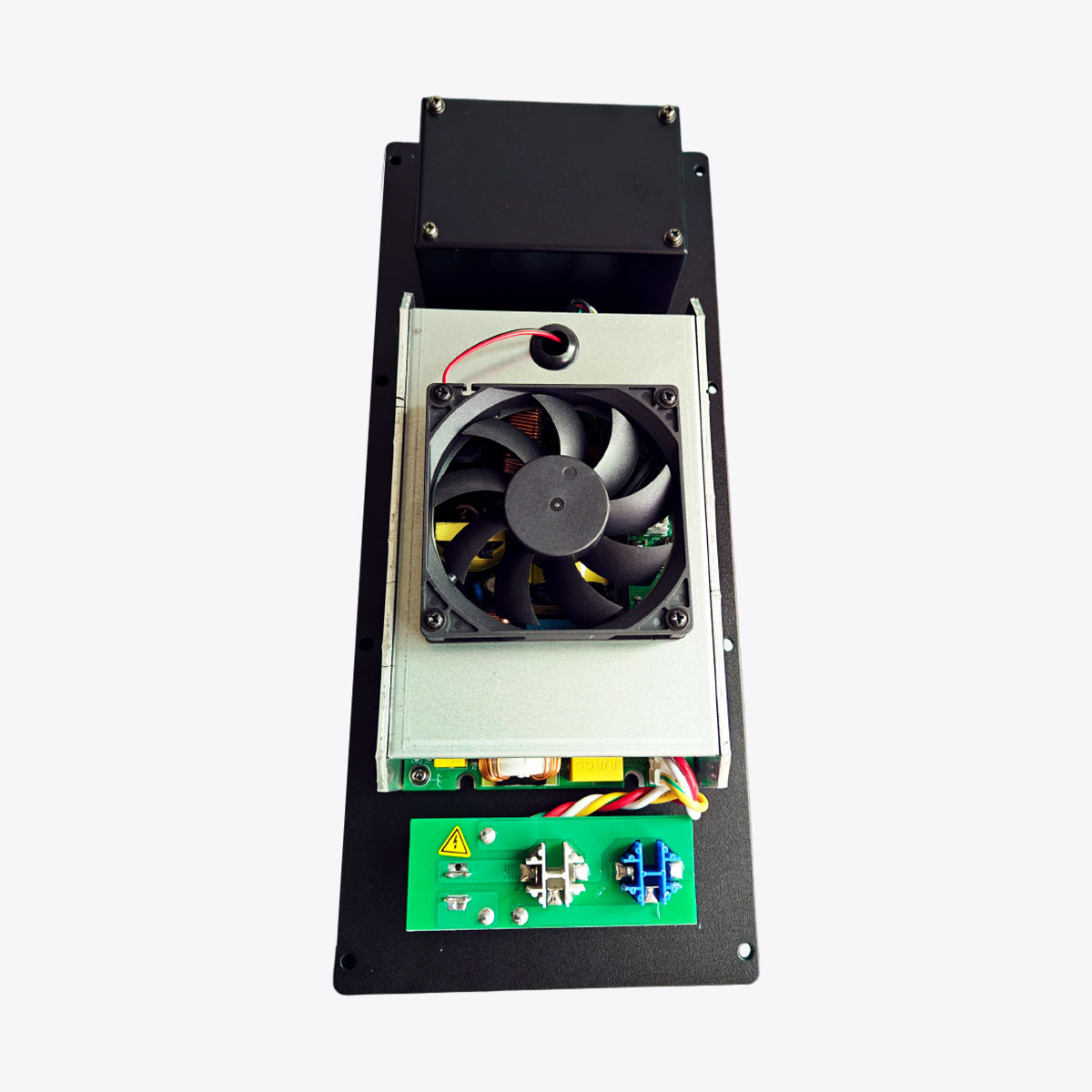

  • Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
  • Compact design, easy integration.
  • OEM, ODM and customized services are available.
Categories: Module Amplifiers SUB-II F-II&LA-F Series Single Channel Dual Channel Single Subwoofer Double Subwoofer
Request For Quotation
Technical Details :
Models SUB600-II, SUB800-II, SUB1200-II, SUB1500-II, SUB2000-II
DSP Type \
RMS SUB600-II: 600W @8Ω, 900W @4Ω
SUB800-II: 800W @8Ω, 1200W @4Ω
SUB1200-II: 1200W @8Ω, 2000W @4Ω
SUB1500-II: 1500W @8Ω, N/A @4Ω
SUB2000-II: 2*1000W @8Ω, N/A @4Ω
Output Circuitry Class D
Frequency Response 30Hz-600Hz(±0.5dB)
Total Harmonic Distortion ≤0.05%
Slew Rate ≥40V/μs
Damping Factor ≥400
Input Impedance 10K/20K Ohms, unbalanced or balanced
S/N Ratio ≥95dB
Power Supply AC 100V-240V ~50/60Hz(Regulated Voltage, SMPS+PFC)
Input Sensitivity SUB600-II: 1.1V
SUB800-II: 1.3V
SUB1200-II: 1.25V
SUB1500-II: 1.4V
SUB2000-II: 1.4V
Input/Output Connector XLR
Dimension(W*H*D) 142*332*89mm
Logistics Information:
Packing Size 42*22*19cm
Shipping Weight 3.5kg
* Testing Standard: EIA, 1kHz sine wave, 40ms, 220V.
* Features and specifications are subject to change without prior notice.
