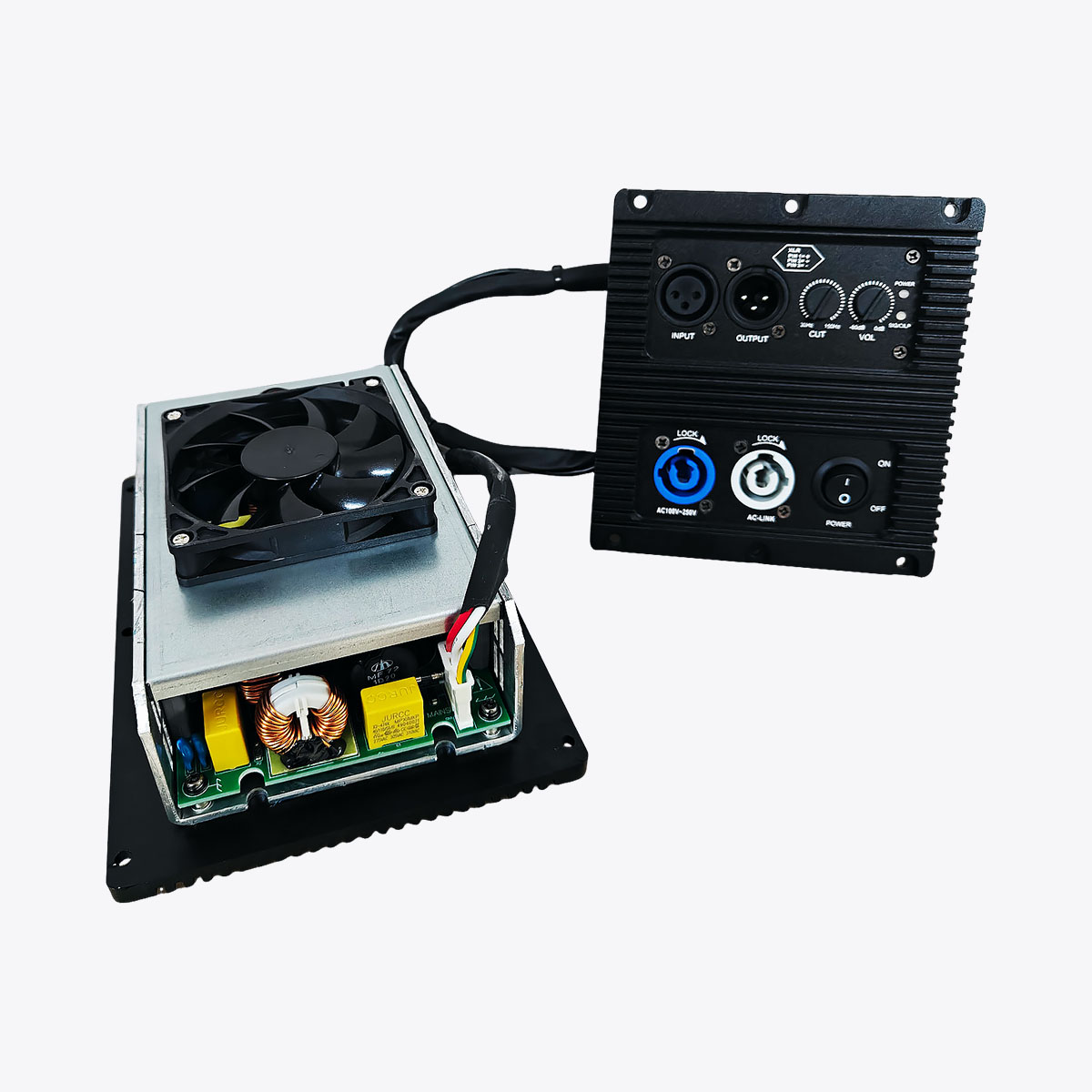

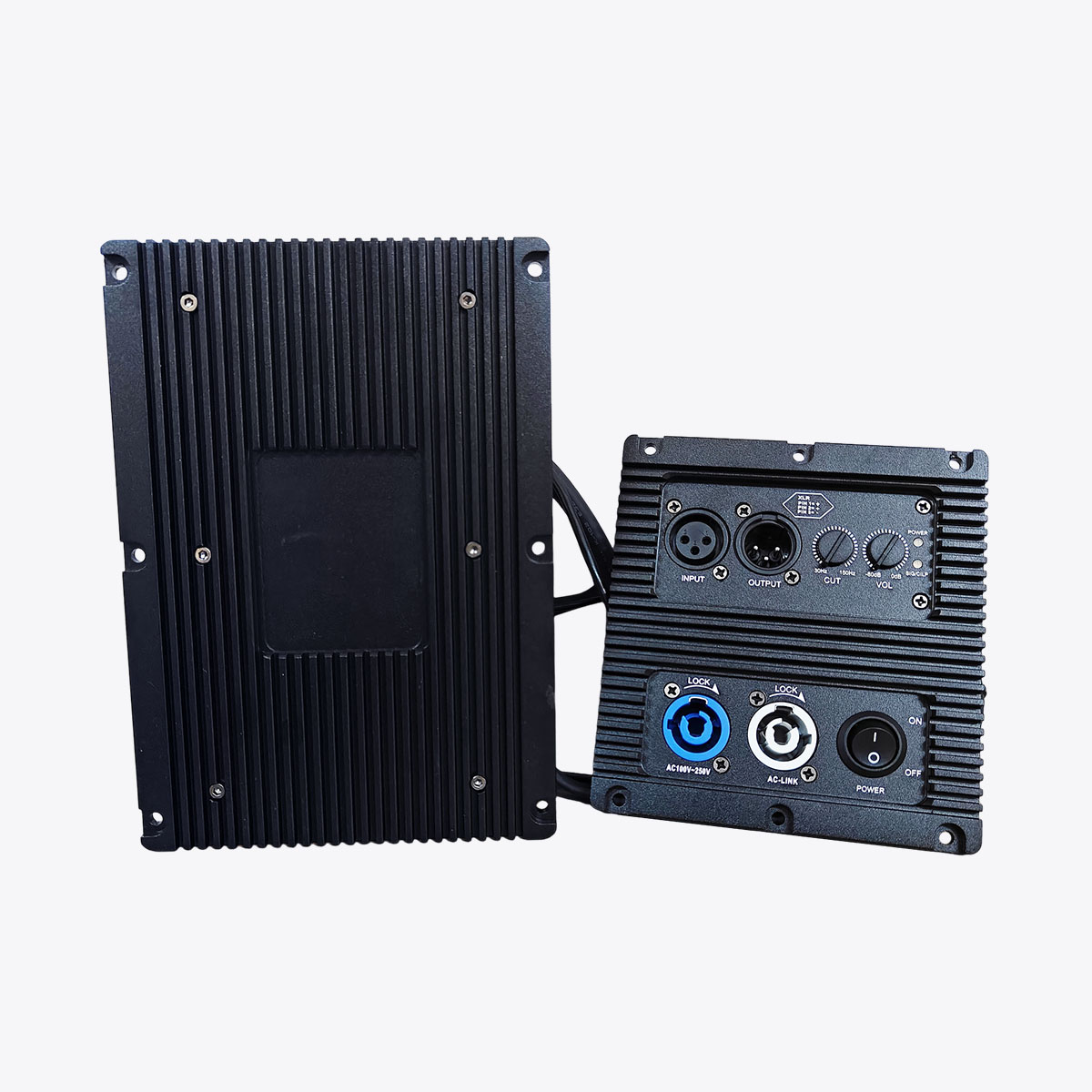

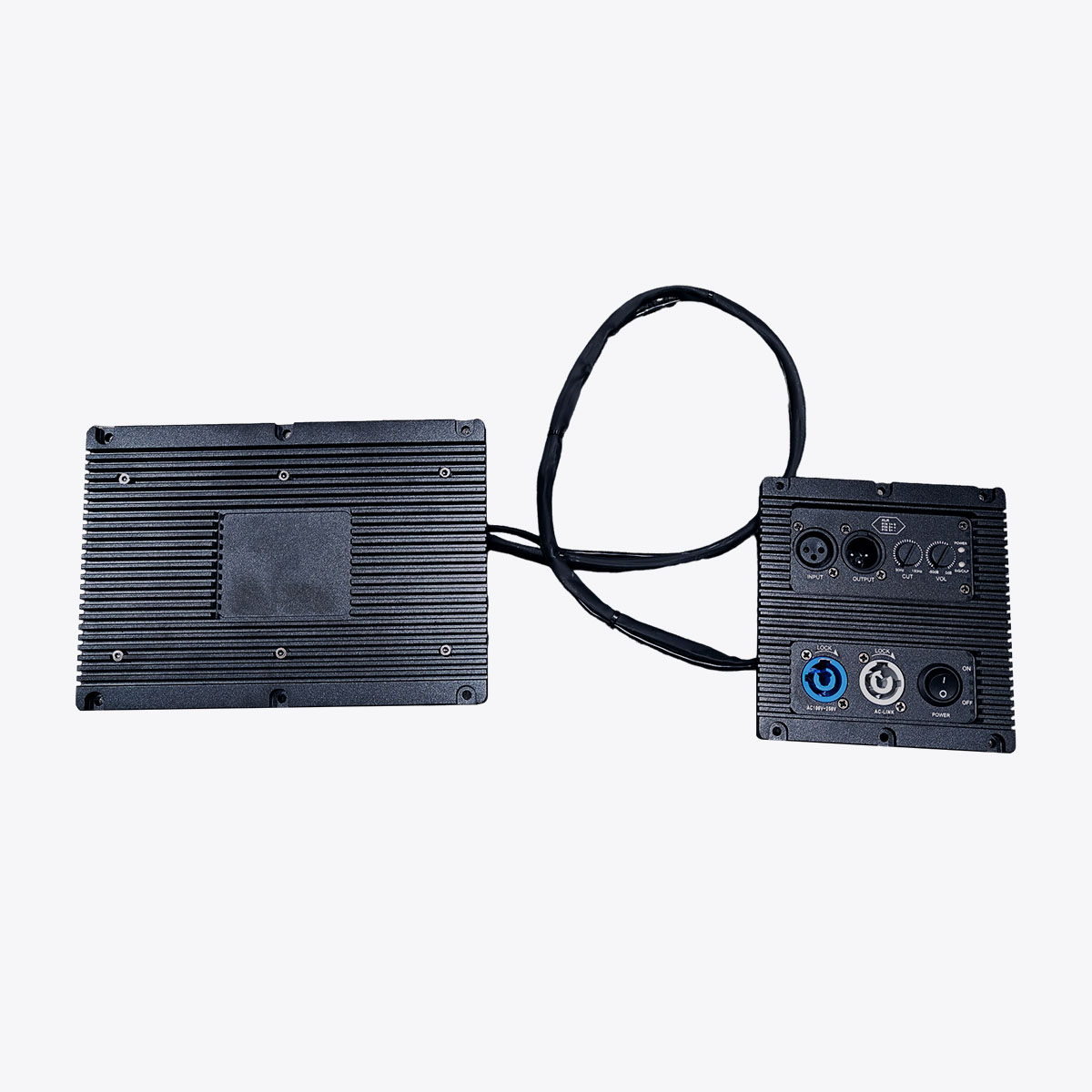

LA F Series

Active Speaker Amplifier Module 400W~2000W Pure Amplifier

  • 400W 600W 800W 900W 1200W 2000W optional.
  • Widely used in 2-way Speaker, Line Array System 8", 10", 12", 15", 2*15".
  • Professional-grade audio class D amplifier circuit.
  • A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection.
  • Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
  • Compact design, easy integration.
  • OEM, ODM and customized services are available.
Categories: Module Amplifiers SUB-II F-II&LA-F Series Single Channel
Request For Quotation
Technical Details :
Models LA400F, LA600F, LA800F, LA1200F
DSP Type \
RMS LA400F: 400W @8Ω , 600W @4Ω
LA600F: 600W @8Ω, 900W @4Ω
LA800F: 800W @8Ω, 1200W @4Ω
LA1200F: 1200W @8Ω, 2000W @4Ω
Output Circuitry Class D
Frequency Response 20Hz-20kHz(±1dB)
Total Harmonic Distortion ≤0.05%
Slew Rate ≥40V/μs
Damping Factor ≥400
Input Impedance 10K/20K Ohms, unbalanced or balanced
S/N Ratio ≥95dB
Power Supply AC 100V-240V ~50/60Hz(Regulated Voltage)
Input Sensitivity LA400F: 0.9V
LA600F: 1.1V
LA800F: 1.3V
LA1200F: 1.25V
Input/Output Connector XLR
Dimension(W*H*D) (AMP)142*200*88mm, (PREAMP)142*130*60mm
Logistics Information:
Packing Size 42*22*19cm
Shipping Weight 4kg
* Testing Standard: EIA, 1kHz sine wave, 40ms, 220V.
* Features and specifications are subject to change without prior notice.
