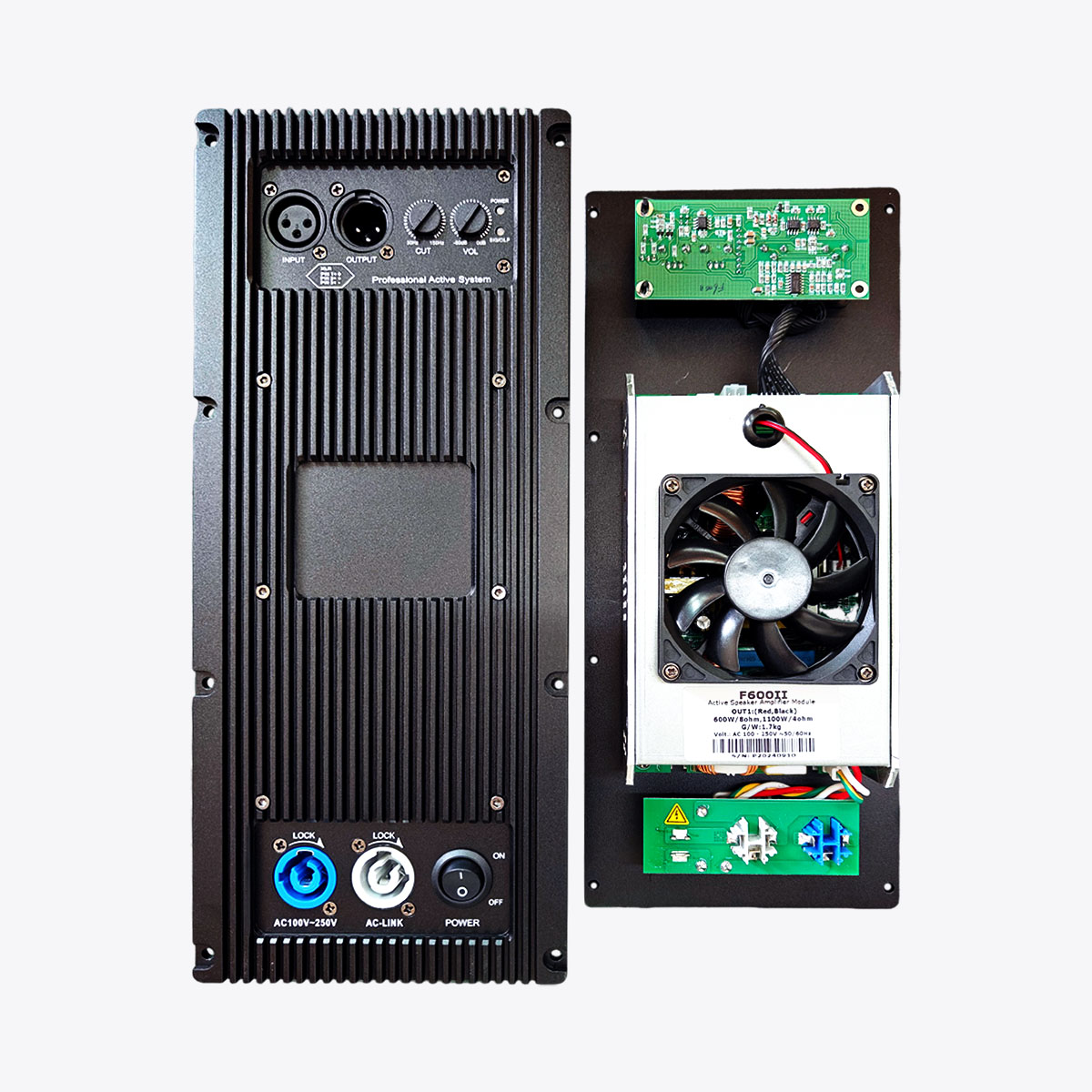

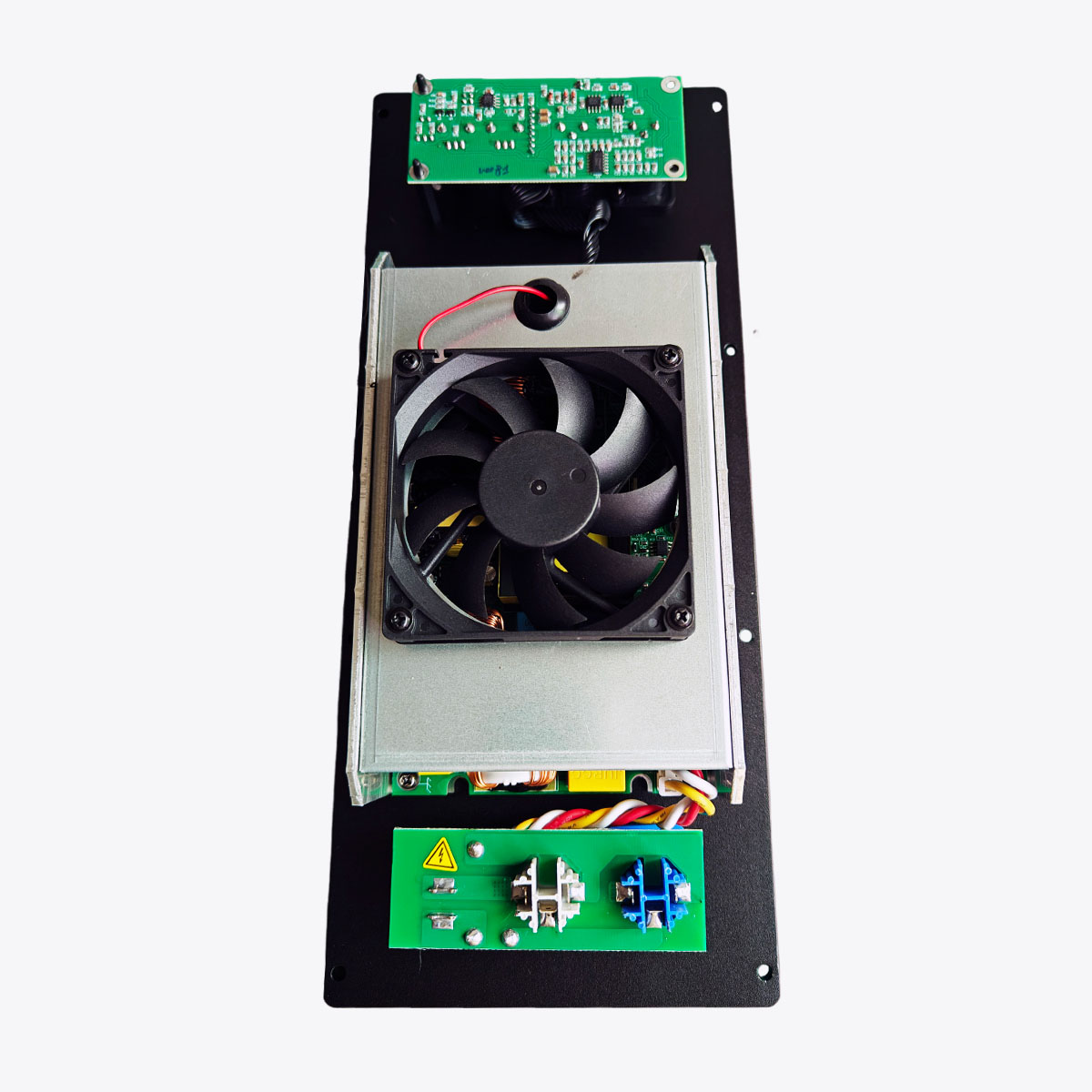

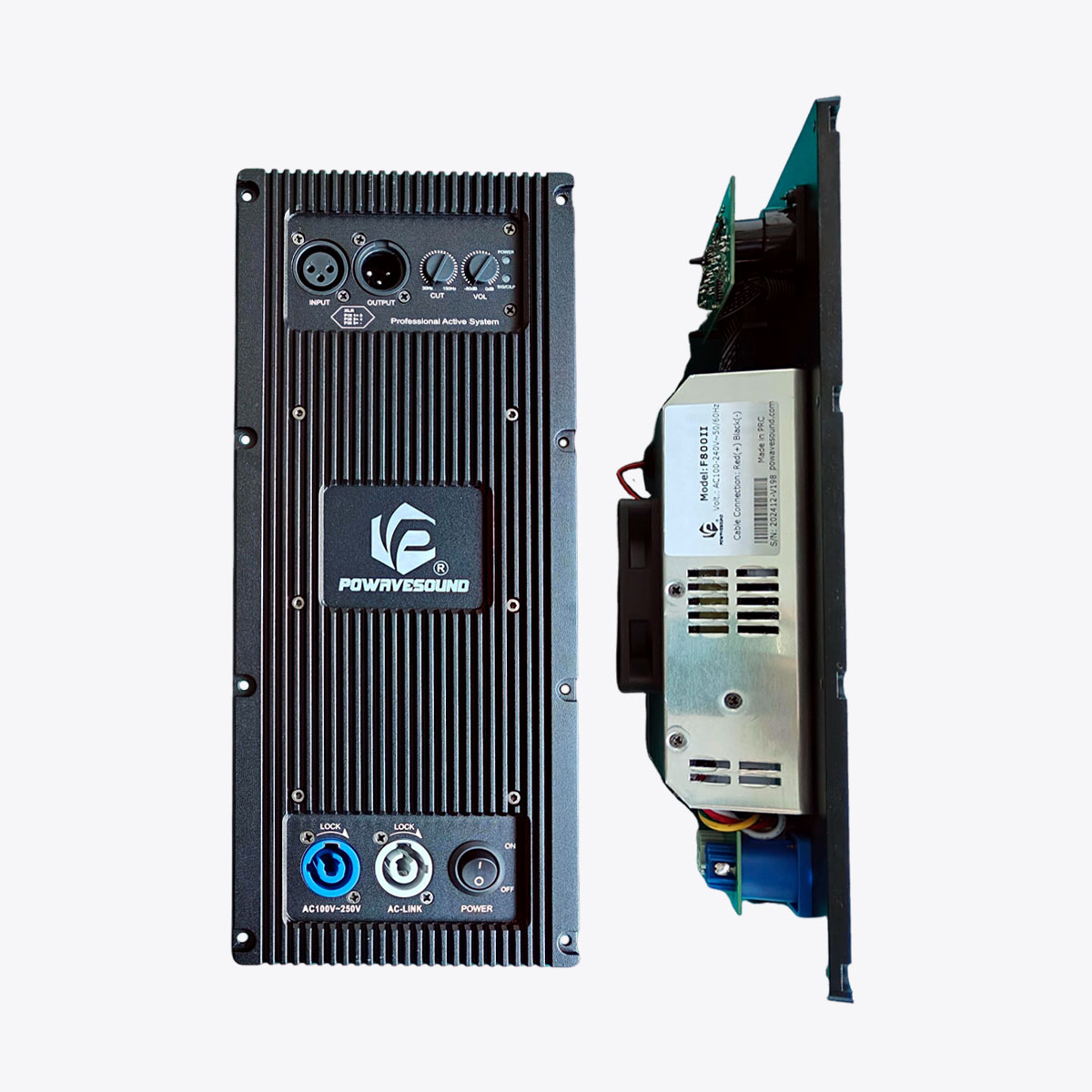

F II Series

400W~2000W Pure Amplifier Active Speaker Amplifier Module for 2-way Speaker, Line Array System

  • 400W 600W 800W 900W 1200W 1500W 2000W optional.
  • Widely used in 2-way Speaker, Line Array System 8", 10", 12", 15", 2*15".
  • Professional-grade audio class D amplifier circuit.
  • A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection.
  • Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
  • Compact design, easy integration.
  • OEM, ODM and customized services are available.
Categories: Module Amplifiers SUB-II F-II&LA-F Series Single Channel 2-way Speaker Line Array System
Request For Quotation
Technical Details :
Models F400-II, F600-II, F800-II, F1200-II, F1500-II
DSP Type \
RMS F400-II: 400W @8Ω , 600W @4Ω
F600-II: 600W @8Ω, 900W @4Ω
F800-II: 800W @8Ω, 1200W @4Ω
F1200-II: 1200W @8Ω, 2000W @4Ω
F1500-II: 1500W @8Ω, N/A @4Ω
Output Circuitry Class D
Frequency Response 20Hz-20kHz(±1dB)
Total Harmonic Distortion ≤0.05%
Slew Rate ≥40V/μs
Damping Factor ≥400
Input Impedance 10K/20K Ohms, unbalanced or balanced
S/N Ratio ≥95dB
Power Supply AC 100V-240V ~50/60Hz(Regulated Voltage, SMPS+PFC)
Input Sensitivity F400-II: 0.9V
F600-II: 1.1V
F800-II: 1.3V
F1200-II: 1.25V
F1500-II: 1.4V
Input/Output Connector XLR
Dimension(W*H*D) 142*332*89mm
Logistics Information:
Packing Size 42*22*19cm
Shipping Weight 3.5kg
* Testing Standard: EIA, 1kHz sine wave, 40ms, 220V.
* Features and specifications are subject to change without prior notice.
