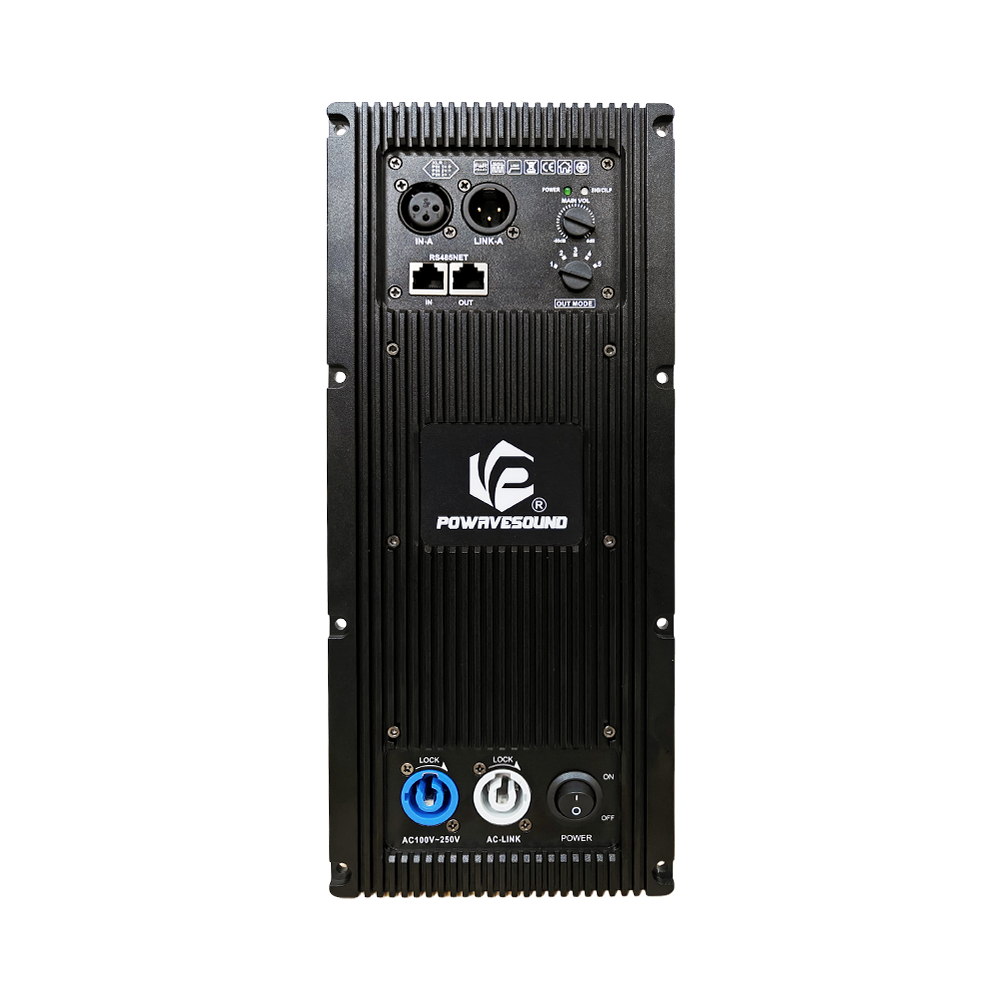

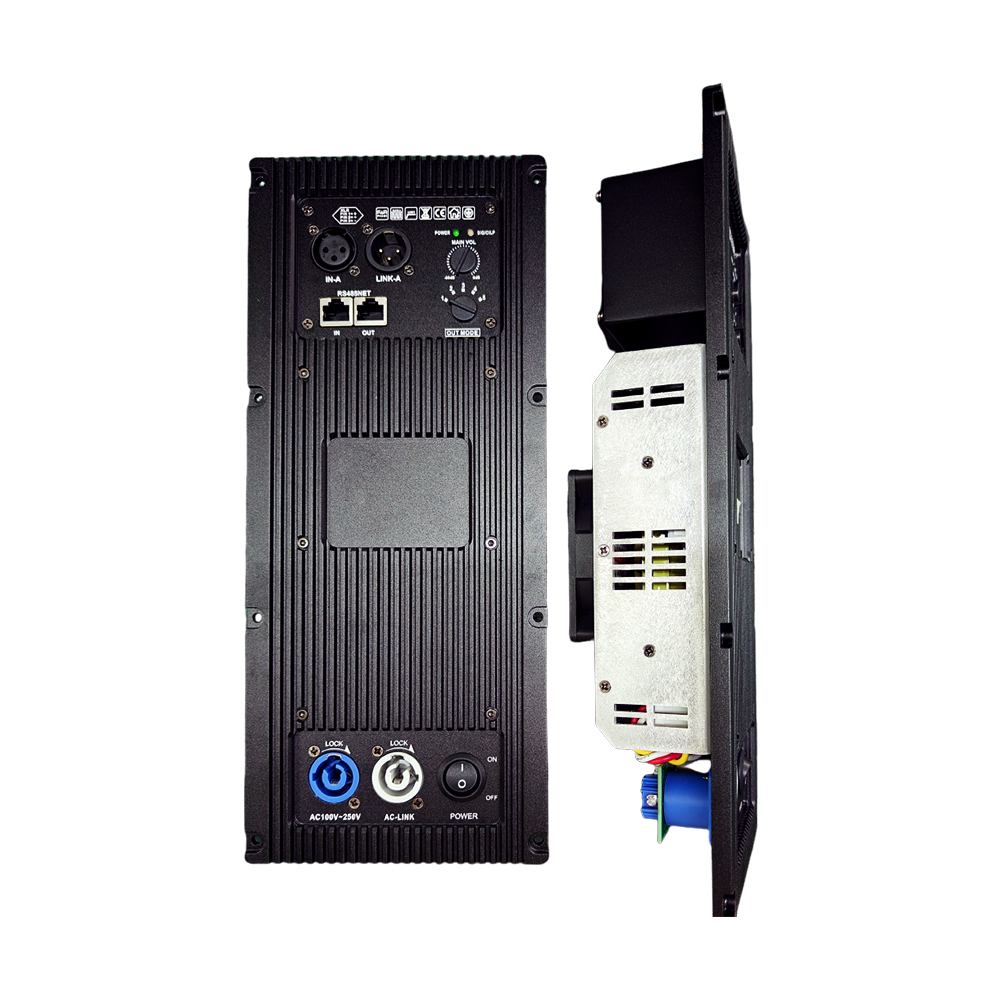

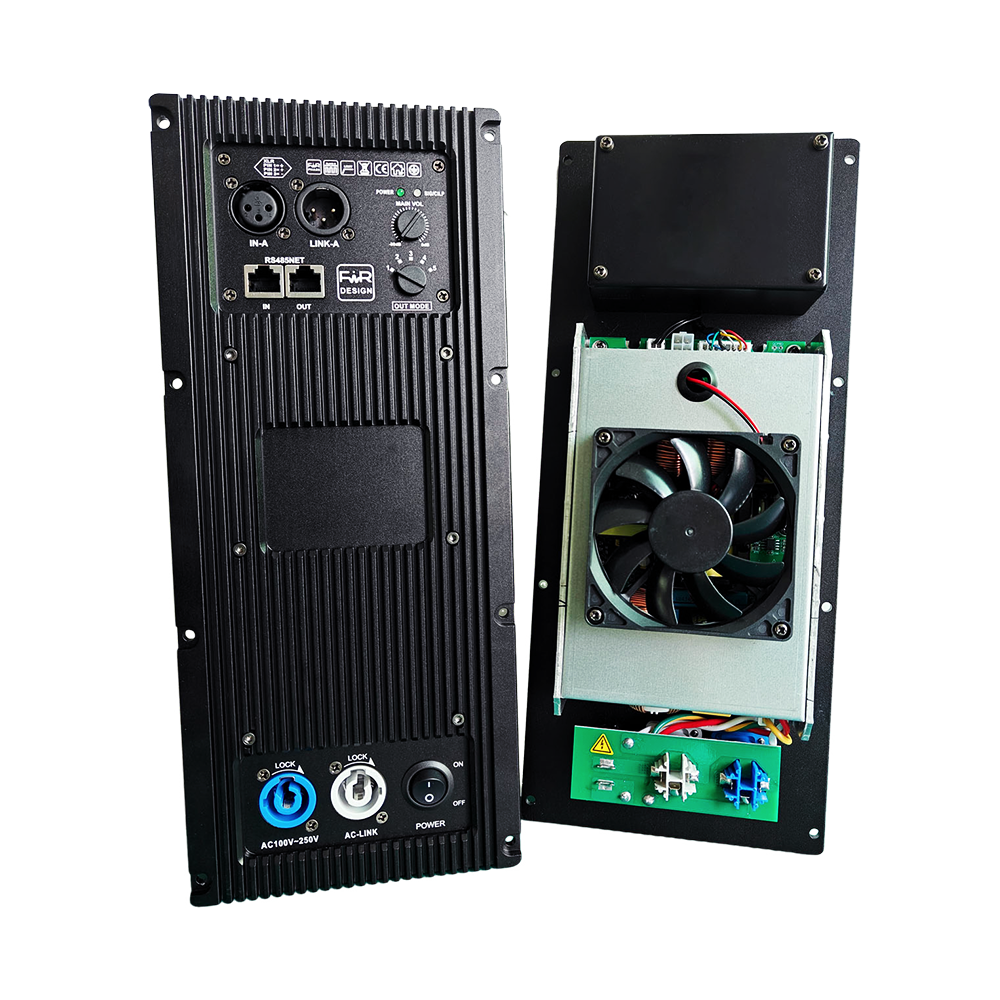

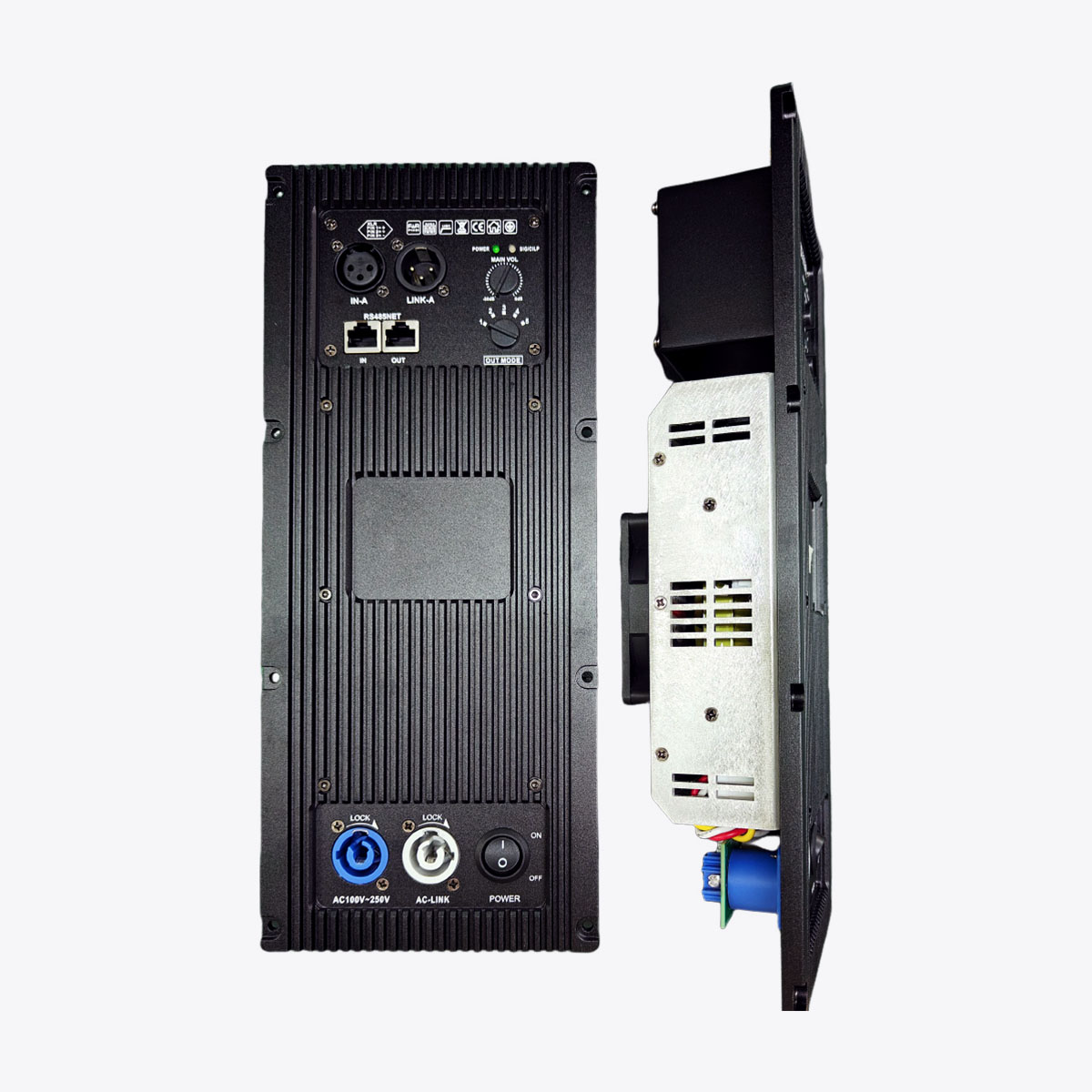

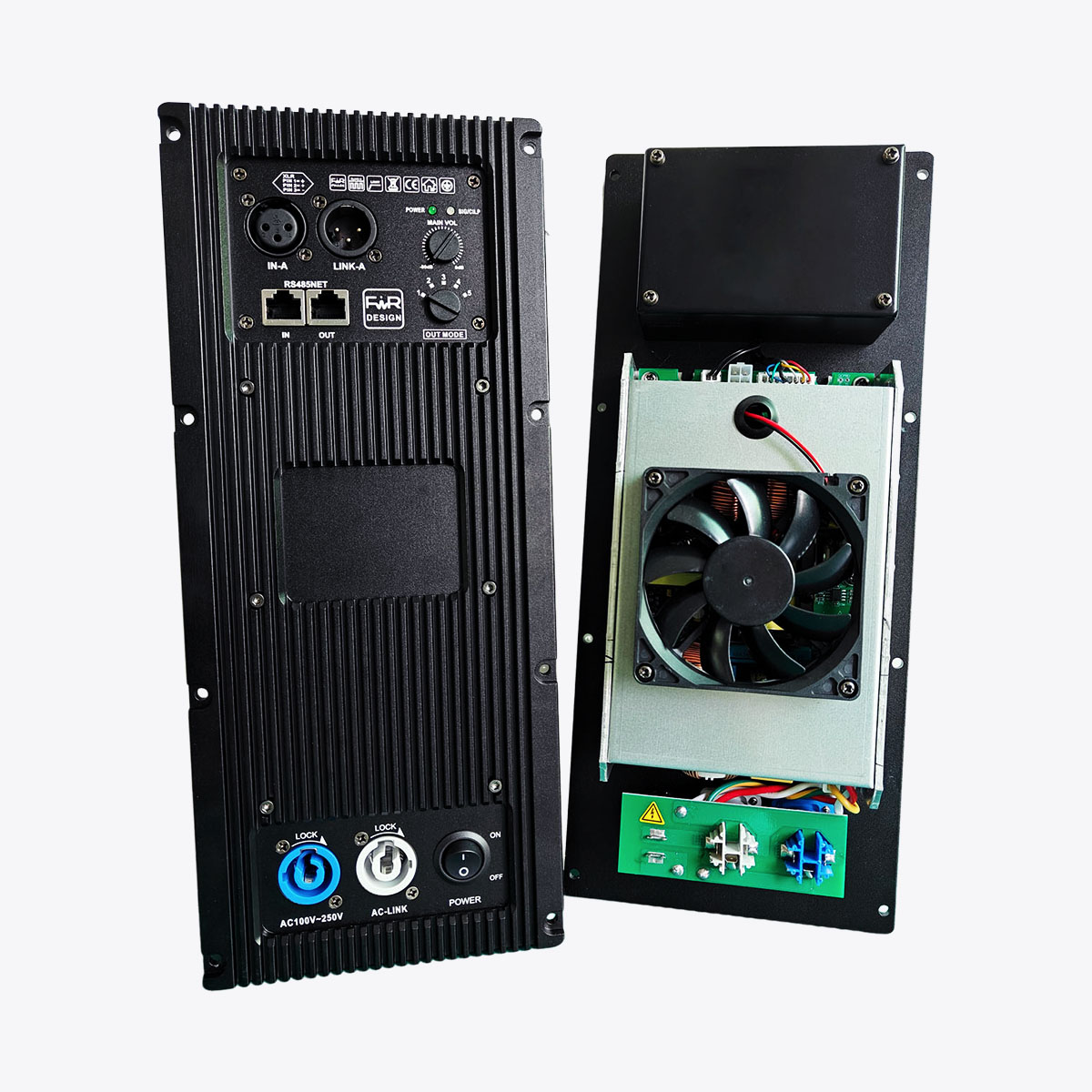

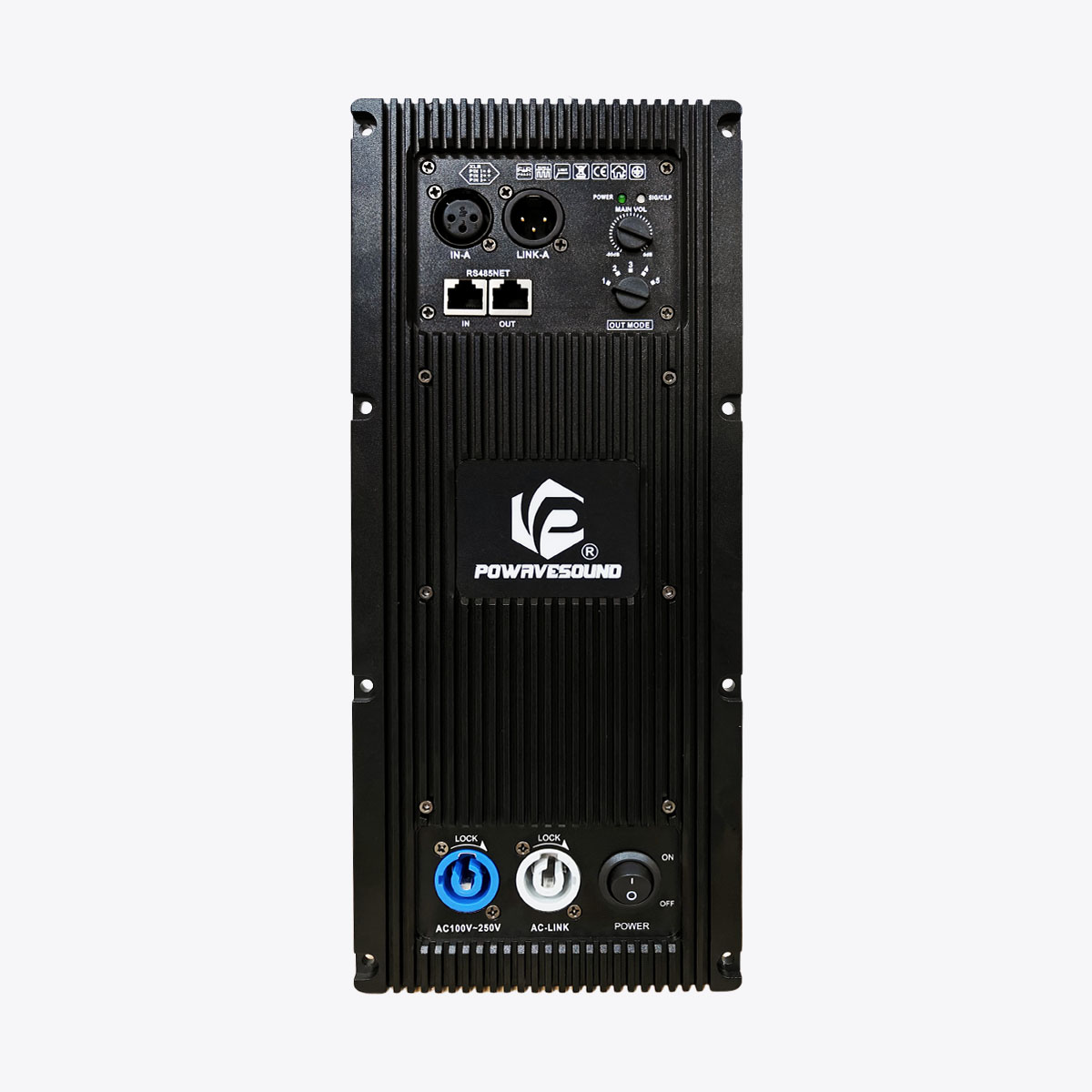

D FIR Series 1in 1out
400W~2000W Single Channel Active Speaker Amplifier Module for Single Subwoofer, 2-way Speaker
- 400W~2000W optional.
- Widely used in 2-way Speaker, Line Array System, Single & Double Subwoofer 12'', 15'', 18", 21", 2*18".
- Built-in high-performance DSP: AKM7735, 48kHz, 1in 1out, FIR designer.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).

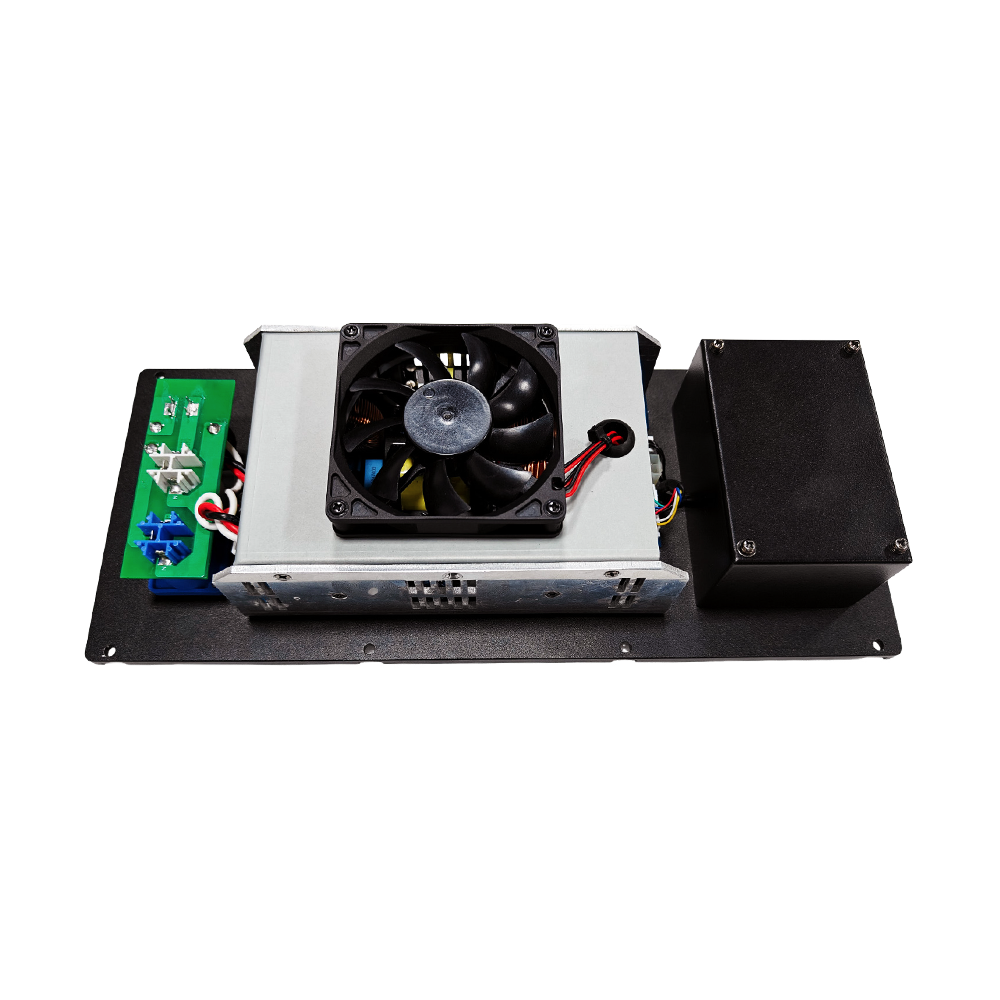

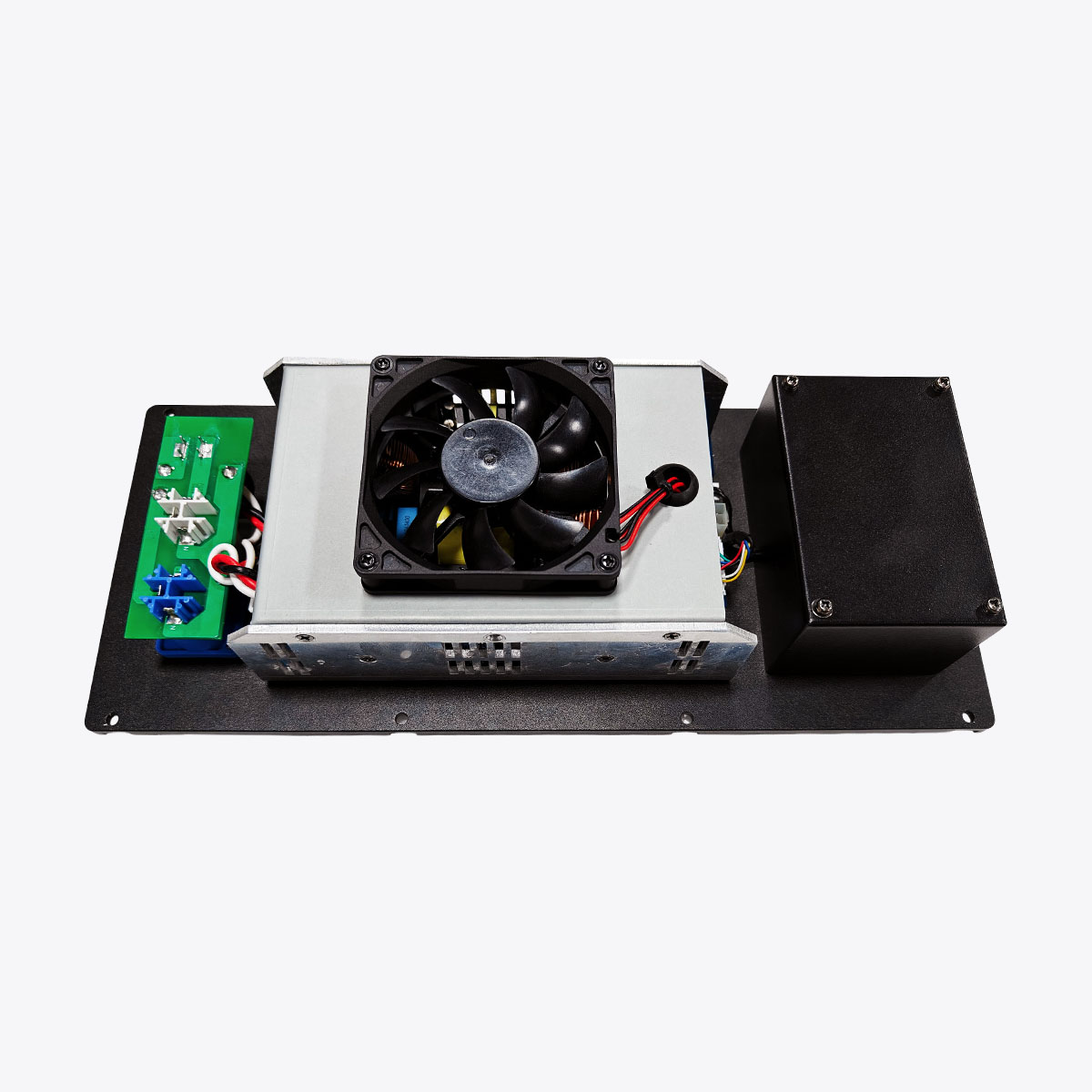

- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | D400FIR, D600FIR, D800FIR, D1200FIR, D1500FIR, D2000FIR |
| DSP Type | AKM7735, 48kHz, 1in 1out, FIR designer |
| RMS | D400FIR: 400W @8Ω , 600W @4Ω
D600FIR: 600W @8Ω, 900W @4Ω D800FIR: 800W @8Ω, 1200W @4Ω D1200FIR: 1200W @8Ω, 2000W @4Ω D1500FIR: 1500W @8Ω, N/A @4Ω D2000FIR: OUT1: 1000W @8Ω, N/A @4Ω; OUT2: 1000W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | D400FIR: 0.9V
D600FIR: 1.1V D800FIR: 1.3V D1200FIR: 1.25V D1500FIR: 1.4V D2000FIR: 1.4V (DSP Adjustable) |
| Input/Output Connector | XLR |
| Dimension(W*H*D) | 142*332*75mm |
| Logistics Information: | |
| Packing Size | 42*22*19cm |
| Shipping Weight | 4kg |
* Features and specifications are subject to change without prior notice.
