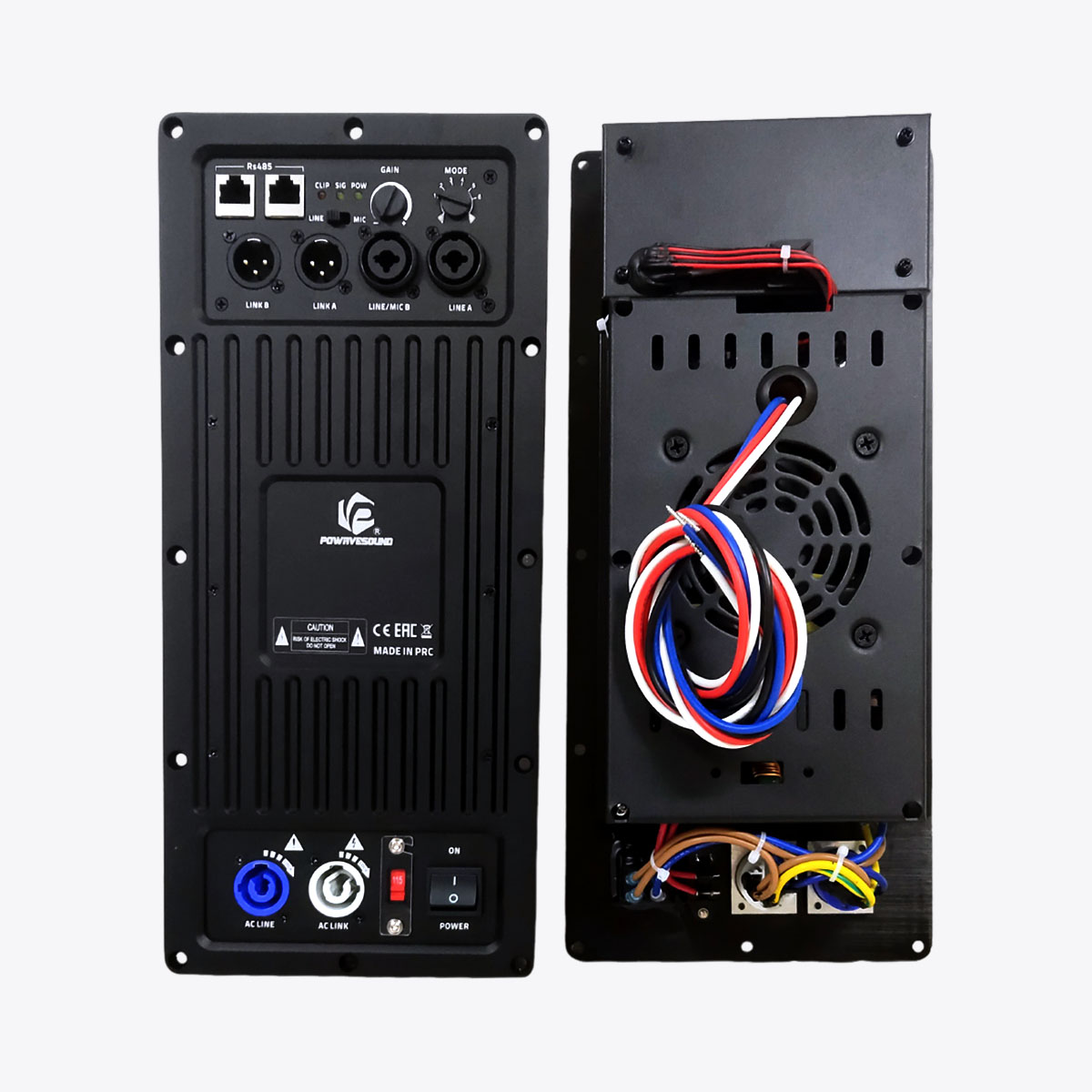

DP Series 2in 2out
Dual Channel Active Speaker Amplifier Module for Combo Active Sound System
- 100W 200W 300W 400W 500W 600W 700W optional.
- Widely used in 2-way Speaker, Line Array System 8", 10", 12", 1.1 Combo Active Sound System(Subwoofer + Full Range Speaker).
- Built-in high-performance DSP: 24bit 96kHz, 2in 2out.

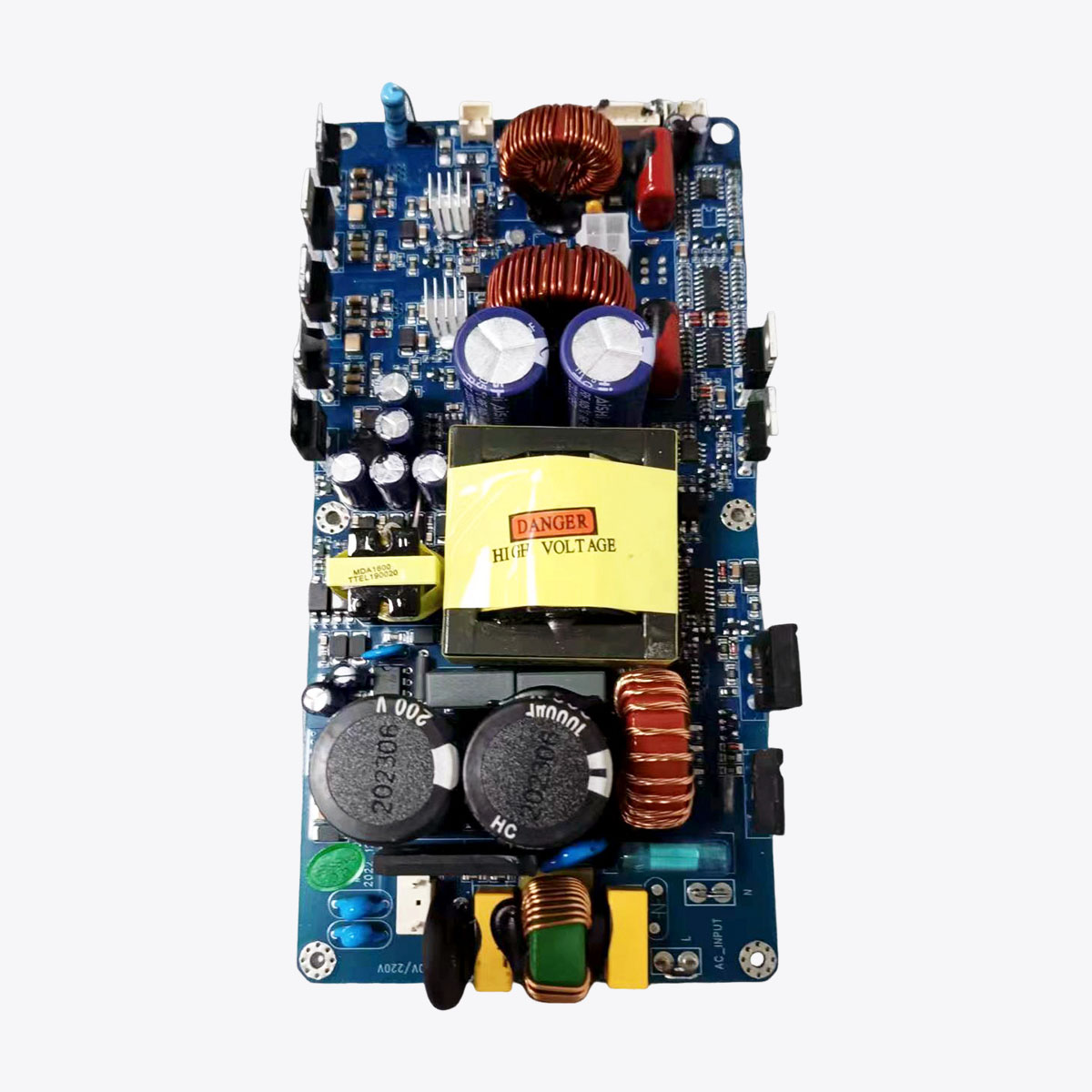

- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).

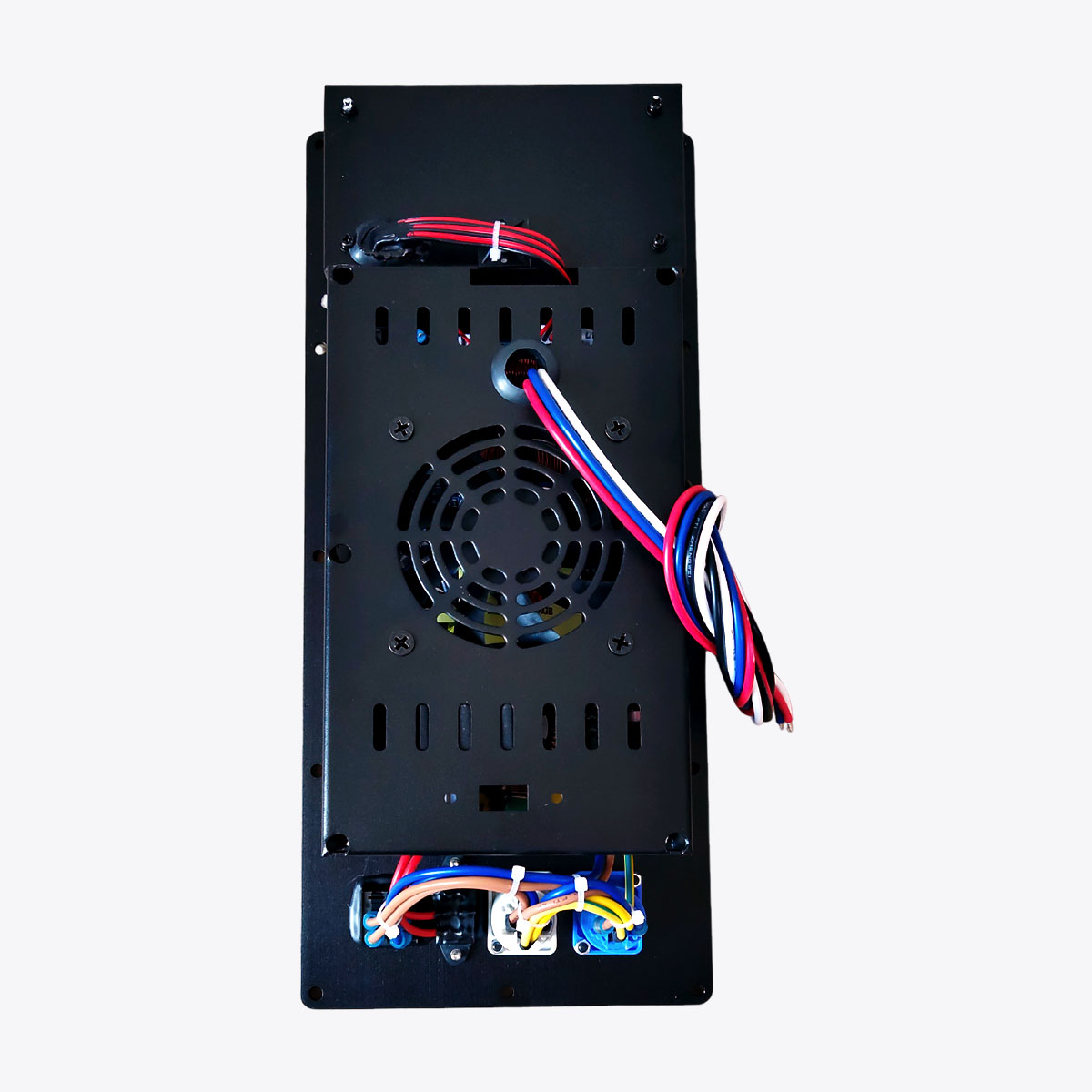

- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | DP2.13, DP2.24, DP2.5 |
| DSP Type | 24bit 96kHz, 2in 2out |
| RMS | DP2.13: OUT1: 300W @8Ω, 450W @4Ω; OUT2: 100W @8Ω, 150W @4Ω
DP2.24: OUT1: 400W @8Ω, 600W @4Ω; OUT2: 200W @8Ω, 300W @4Ω DP2.5: OUT1: 500W @8Ω, 700W @4Ω; OUT2: 500W @8Ω, 700W @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | 0.775V(DSP Adjustable) |

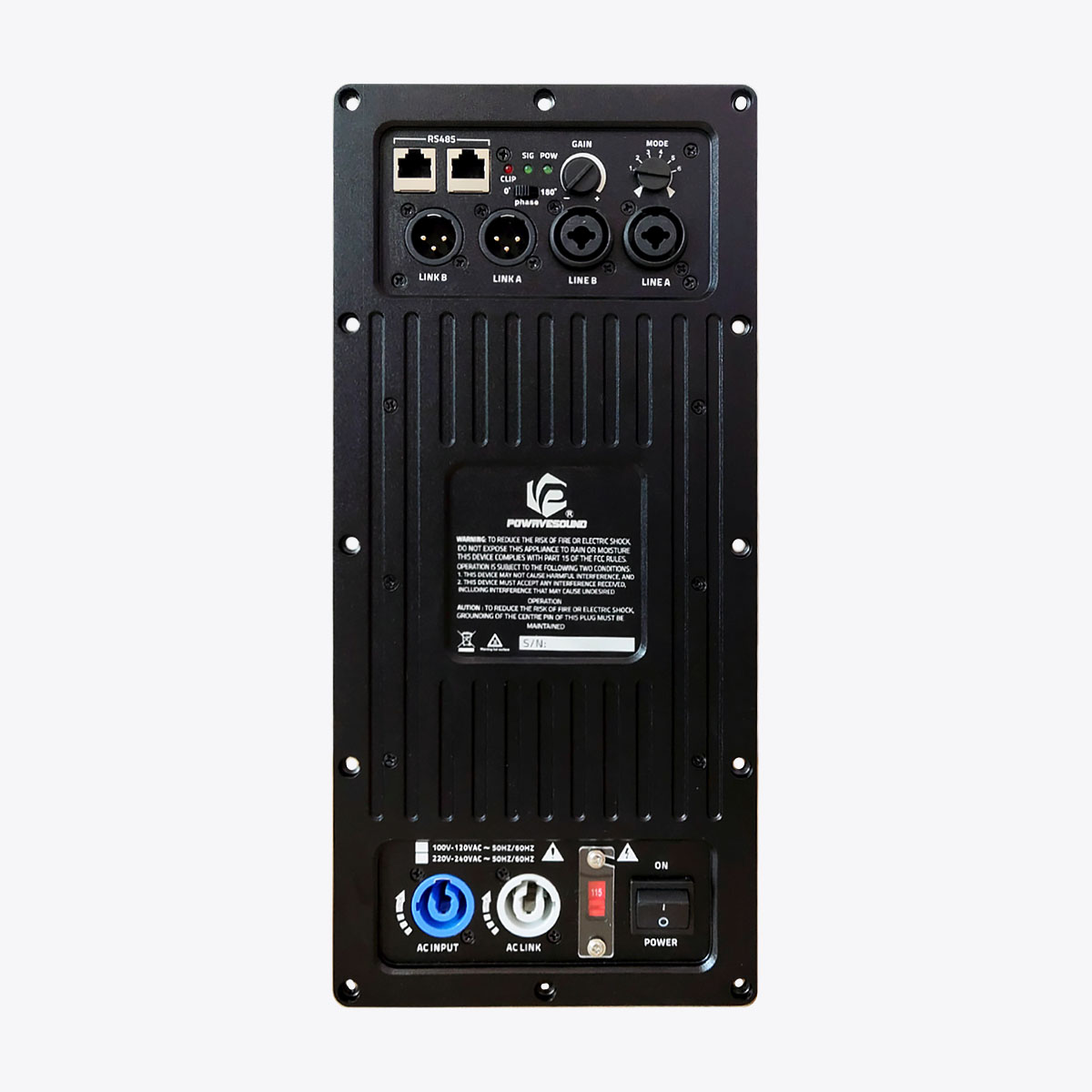

| Input/Output Connector | XLR, Combo Jack |

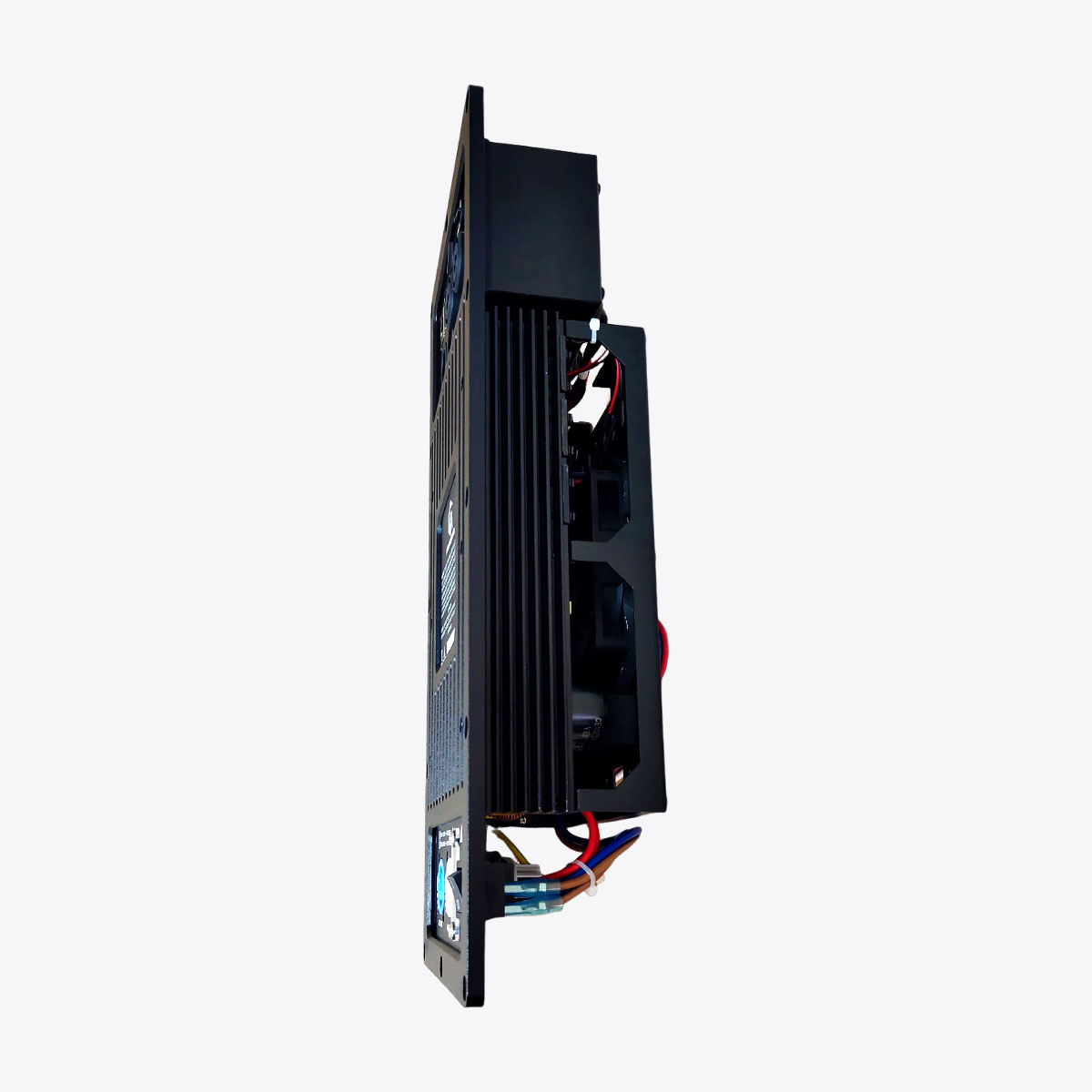

| Dimension(W*H*D) | 157.6*349.6*80mm |
| Logistics Information: | |
| Packing Size | 42*22*19cm |
| Shipping Weight | 4kg |
* Features and specifications are subject to change without prior notice.
