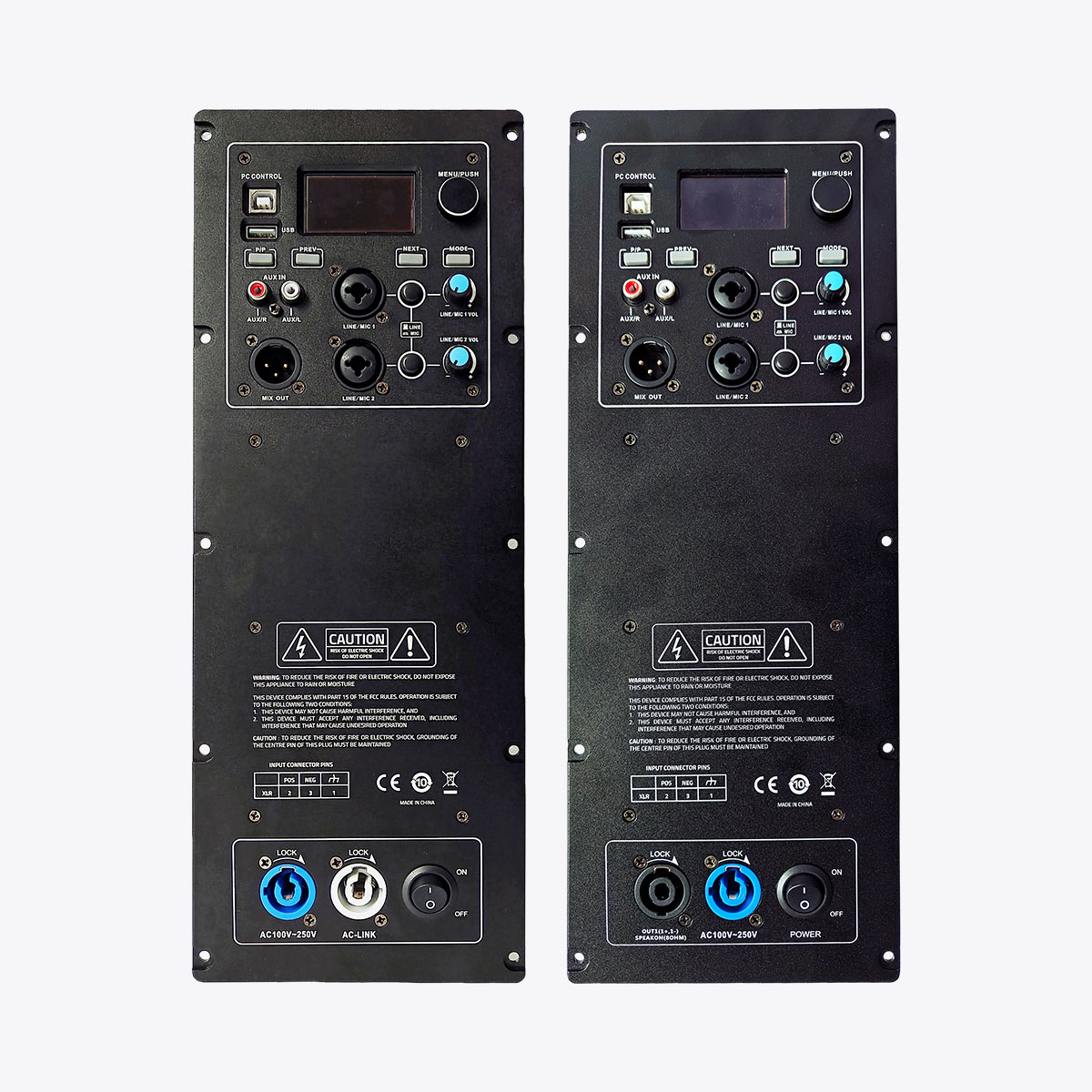

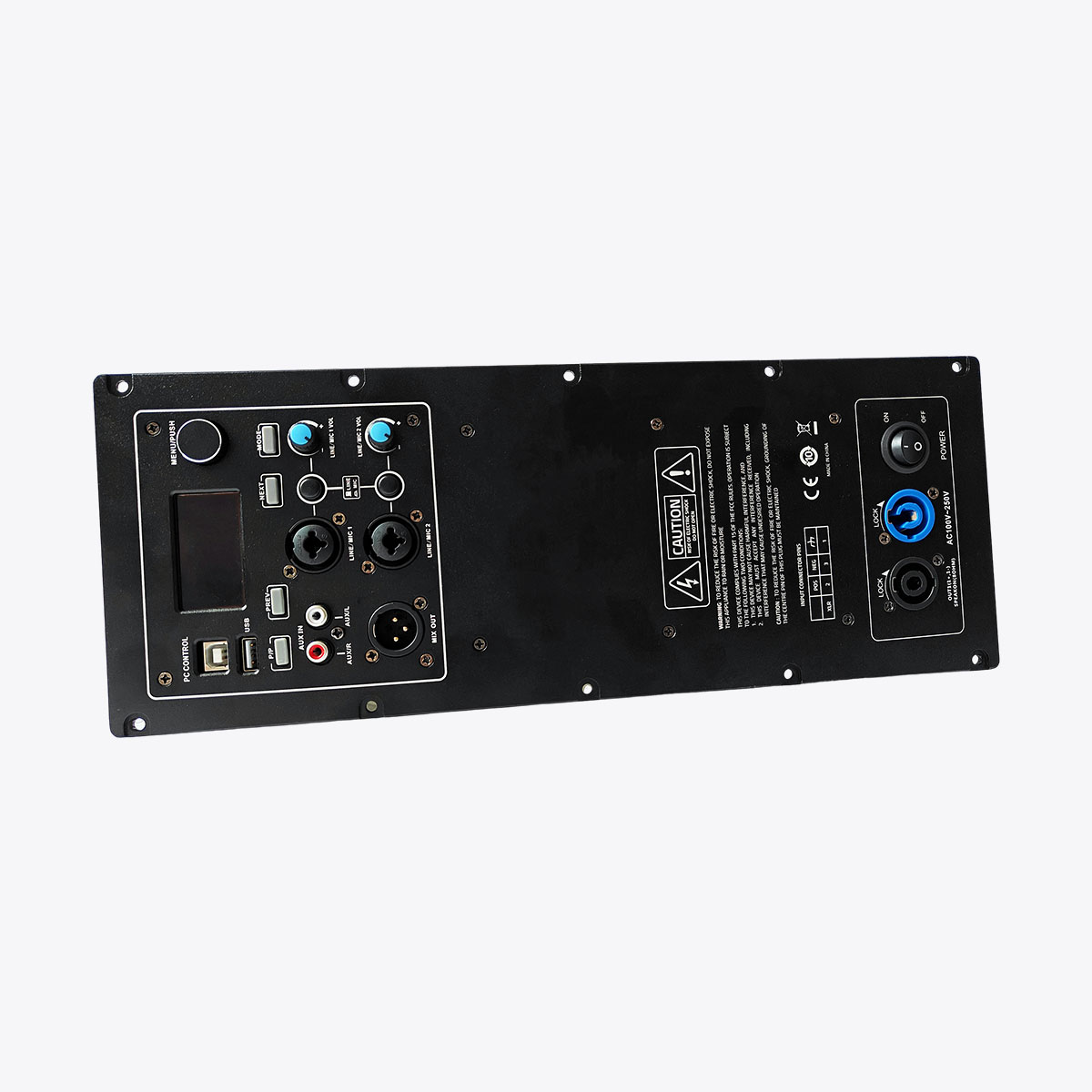

K Series 2in 2out + MP3 + Bluetooth(TWS)
Active Speaker Amplifier Module, Built-in DSP with digital karaoke effects, USB, MP3 and Bluetooth 5.3 inside
- 200W~1200W optional.
- Built-in DSP with digital karaoke effects, USB, MP3 and Bluetooth 5.3 inside. TWS is available. Software control by USB-B to do sound checking, LCD screen displays, allowing to adjust parameters and recall presets.
- Widely used in 2-way Speaker, Line Array System.
- Built-in high-performance DSP: Audio Effect Controller: 2in 2out + MP3 + Bluetooth(TWS).
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).

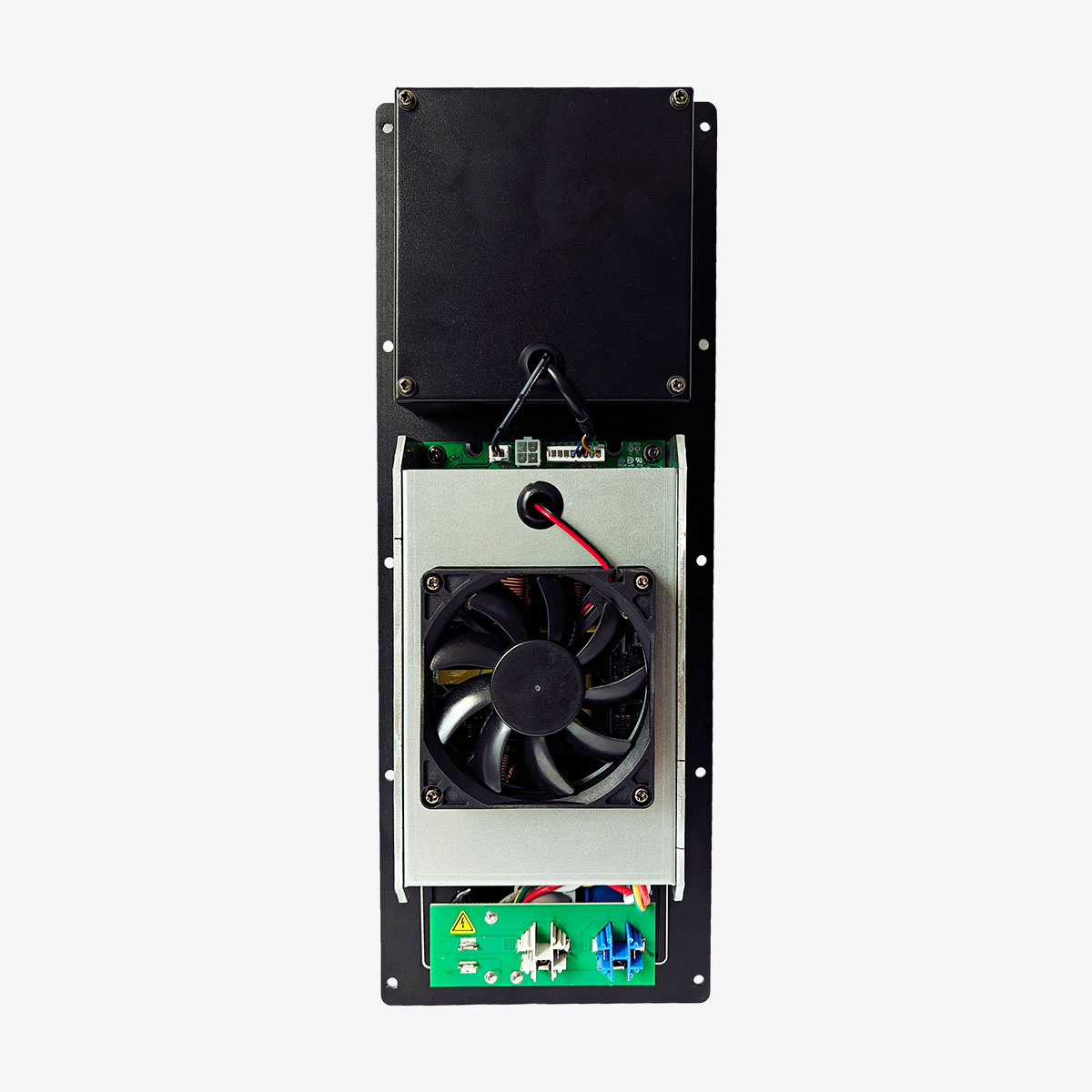

- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | K2.24, K2.26, K2.28, K2.6-SP, K2.8-SP |
| DSP Type | Audio Effect Controller: 2in 2out + MP3 + Bluetooth(TWS) |
| RMS | K2.24: OUT1: 200W @8Ω, 300W @4Ω; OUT2: 400W @8Ω, 600W @4Ω
K2.26: OUT1: 200W @8Ω, 300W @4Ω; OUT2: 600W @8Ω, 900W @4Ω K2.28: OUT1: 200W @8Ω, 300W @4Ω; OUT2: 800W @8Ω, 1200W @4Ω K2.6-SP: OUT1: 600W @8Ω, 900W @4Ω; OUT2: 600W @8Ω, 900W @4Ω K2.8-SP: OUT1: 800W @8Ω, N/A @4Ω; OUT2: 800W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | K2.24: 0.9V
K2.26: 0.9V K2.28: 1.1V K2.6-SP: 1.3V K2.8-SP: 1.3V (DSP Adjustable) |
| Input/Output Connector | XLR, Combo Jack, Speakon |
| Dimension(W*H*D) | 142*374*89mm |
| Logistics Information: | |
| Packing Size | 42*22*19cm |
| Shipping Weight | 3.5kg |
* Features and specifications are subject to change without prior notice.
