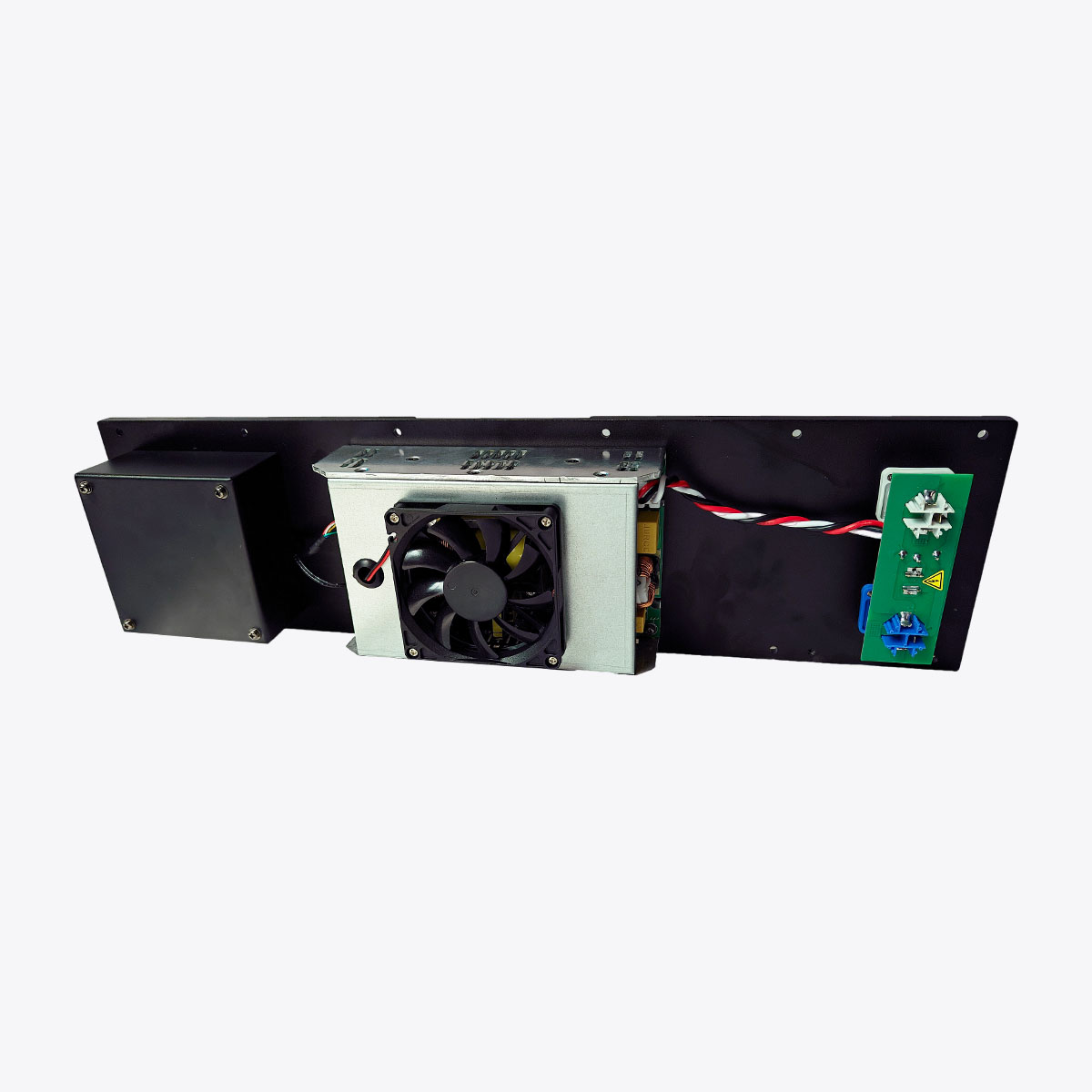

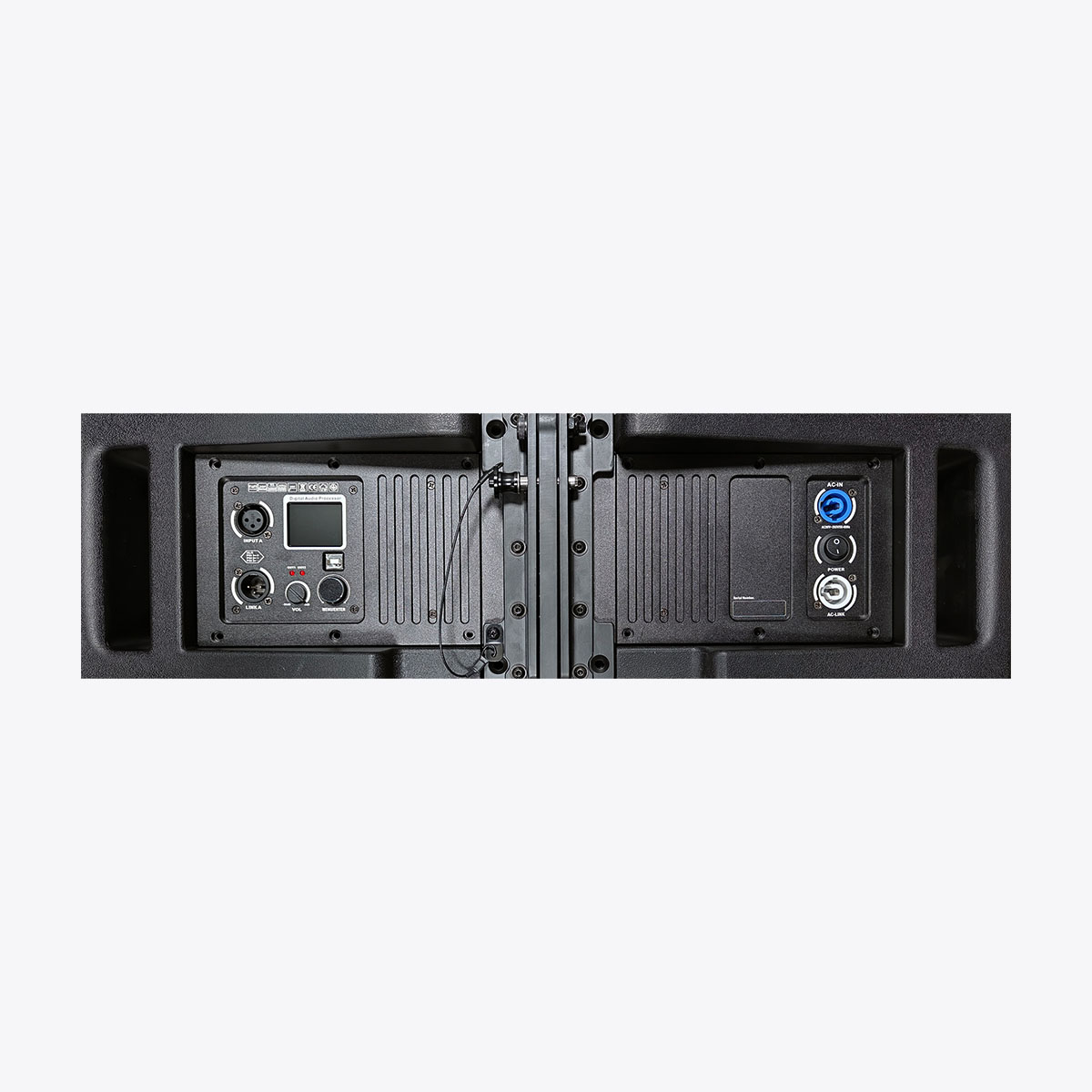

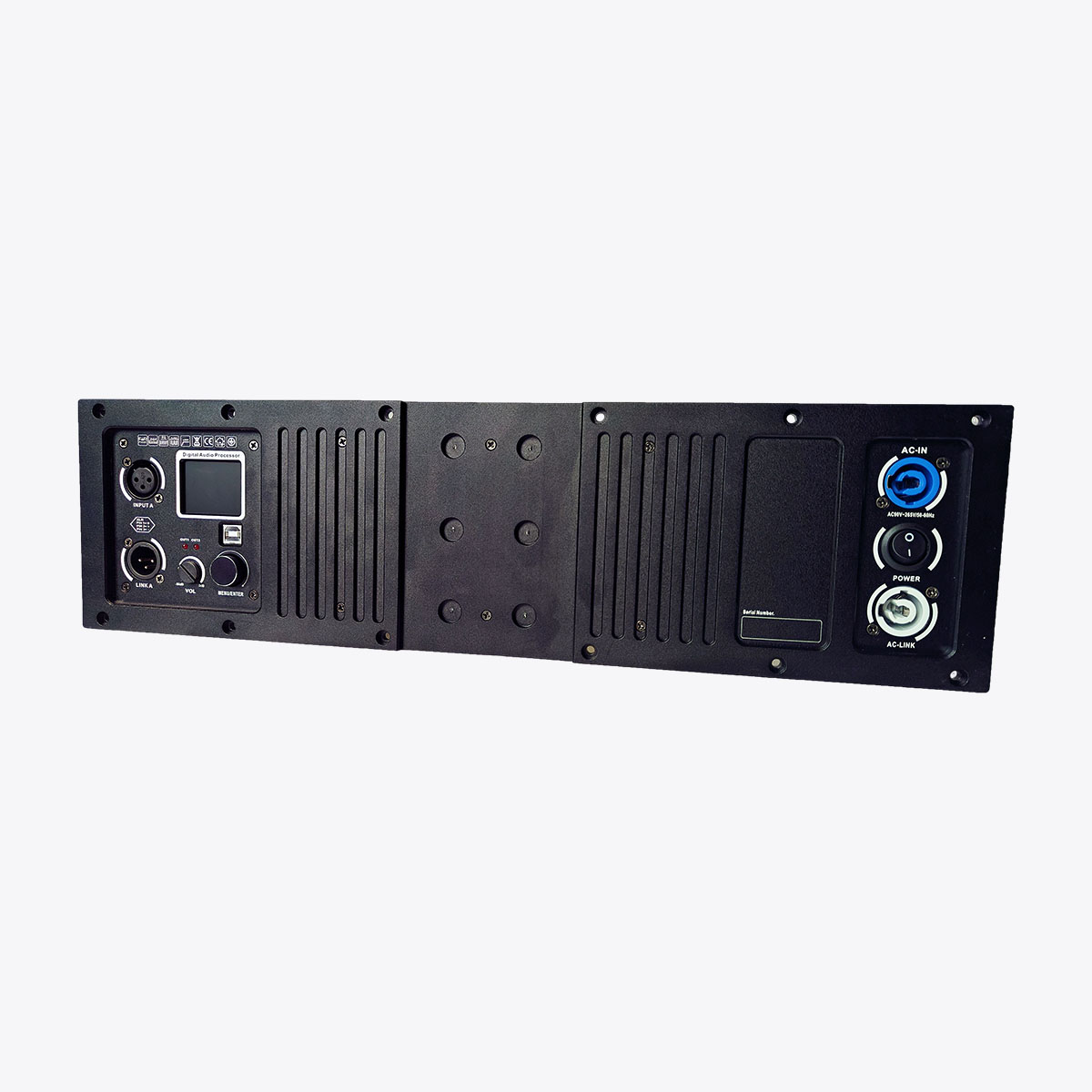

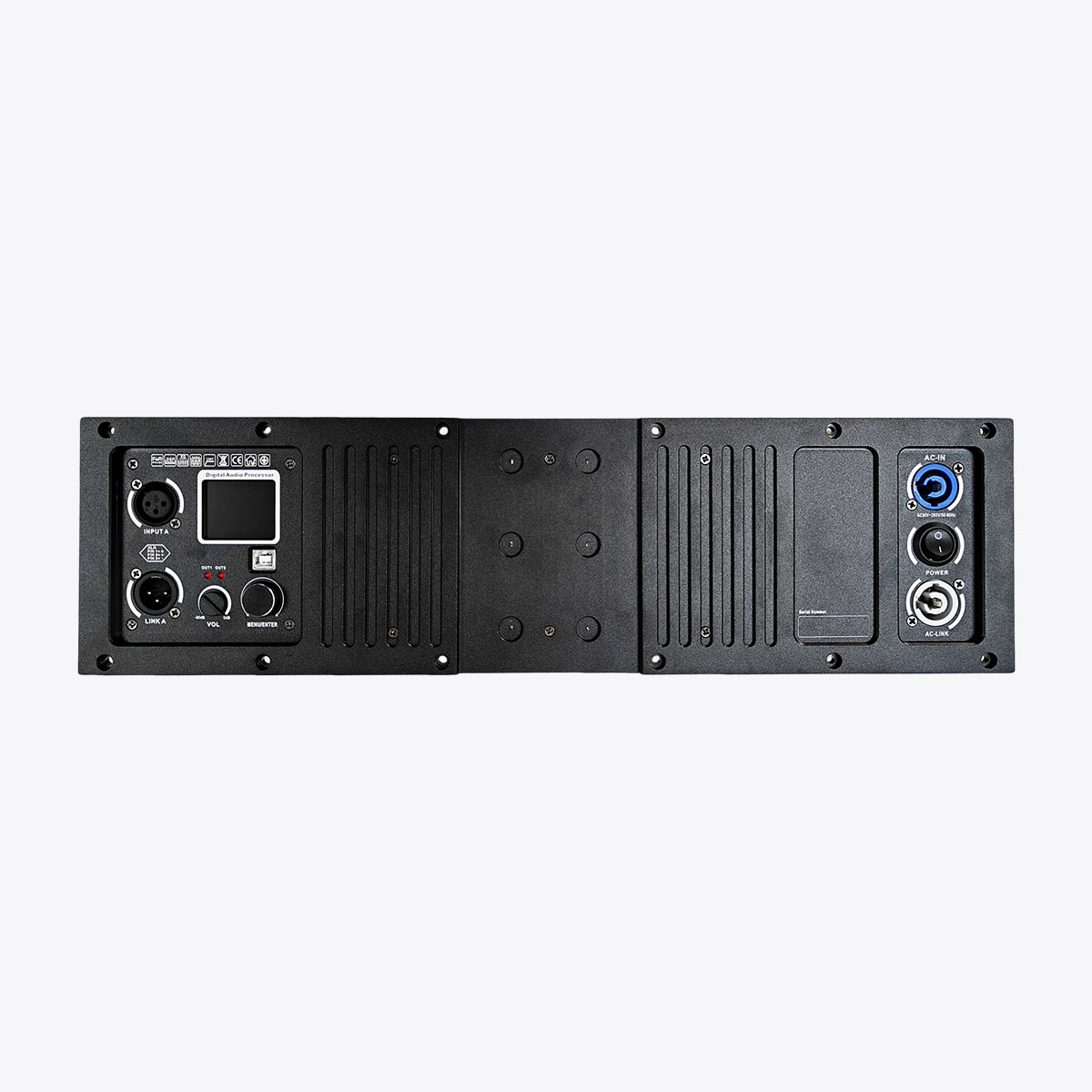

HDL Series 1in 2out
200W~1200W Dual Channel Active Speaker Amplifier Module, FIR designer + RMS Limiter
- 200W~1200W optional.
- Widely used in 2-way Speaker, Line Array System.
- Built-in high-performance DSP: AKM, AK7735, 48kHz, 1in 2out, FIR designer + RMS Limiter.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | HDL2.24, HDL2.26, HDL2.28, HDL2.310 |
| DSP Type | AKM, AK7735, 48kHz, 1in 2out, FIR designer + RMS Limiter |
| RMS | HDL2.24: OUT1: 200W @8Ω, 300W @4Ω; OUT2: 400W @8Ω, 600W @4Ω
HDL2.26: OUT1: 200W @8Ω, 300W @4Ω; OUT2: 600W @8Ω, 900W @4Ω HDL2.28: OUT1: 200W @8Ω, 300W @4Ω; OUT2: 800W @8Ω, 1200W @4Ω HDL2.310: OUT1: 300W @8Ω, 500W @4Ω; OUT2: 1000W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | HDL2.24: 0.9V
HDL2.26: 1.1V HDL2.28: 1.3V HDL2.310: 1.3V (DSP Adjustable) |
| Input/Output Connector | XLR |
| Dimension(W*H*D) | 478*130*83mm |
| Logistics Information: | |
| Packing Size | 52*28*18cm |
| Shipping Weight | 4.5kg |
* Features and specifications are subject to change without prior notice.
