DP Series 2in 1out
800W~1600W Single Channel Active Speaker Amplifier Module for Single & Double Subwoofer
- 800W 1200W 1600W optional.
- Widely used in Single & Double Subwoofer 18", 21", 2*18".
- Built-in high-performance DSP: 24bit 96kHz, 2in 1out.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).

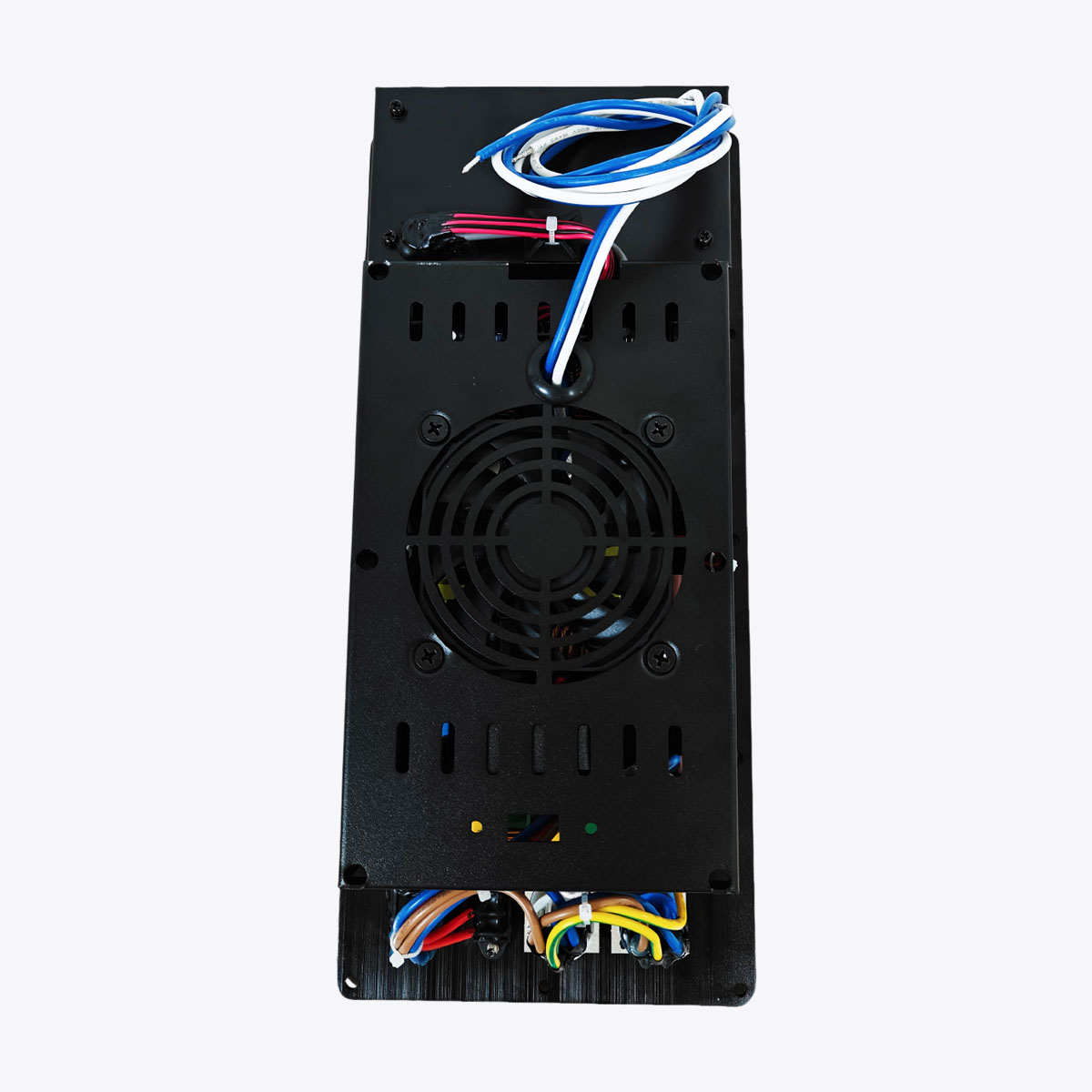

- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | DP800, DP1200, DP1600 |
| DSP Type | 24bit 96kHz, 2in 1out |
| RMS | DP800: 800W @8Ω , N/A @4Ω
DP1200: 1200W @8Ω, N/A @4Ω DP1600: 1600W @8Ω, 2400W @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Input Sensitivity | 0.775V(DSP Adjustable) |

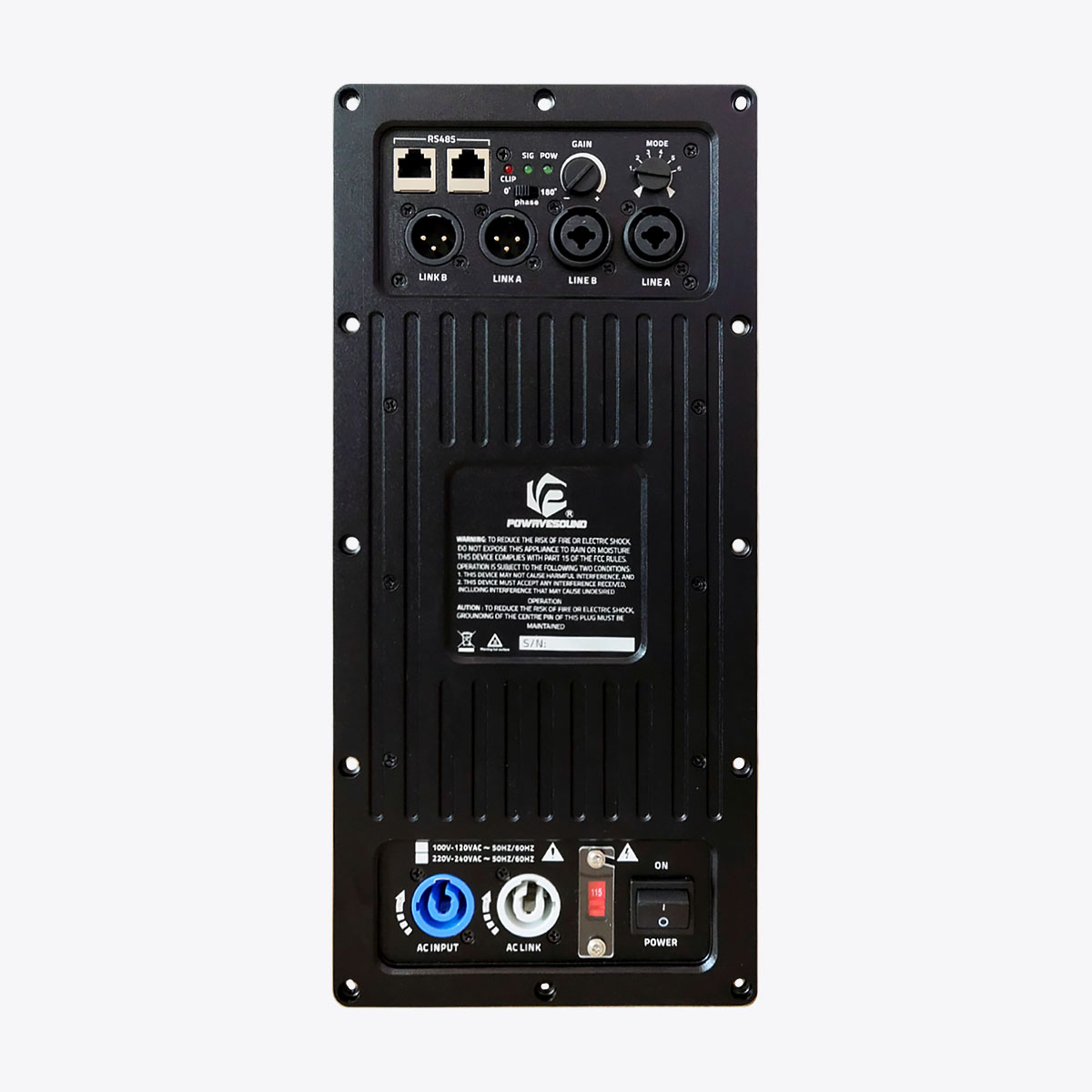

| Input/Output Connector | XLR, Combo Jack |
| Dimension(W*H*D) | 157.6*349.6*80mm |
| Logistics Information: | |
| Packing Size | 42*22*19cm |
| Shipping Weight | 4kg |
* Features and specifications are subject to change without prior notice.
