D Series 1in 1out/2out - High Power

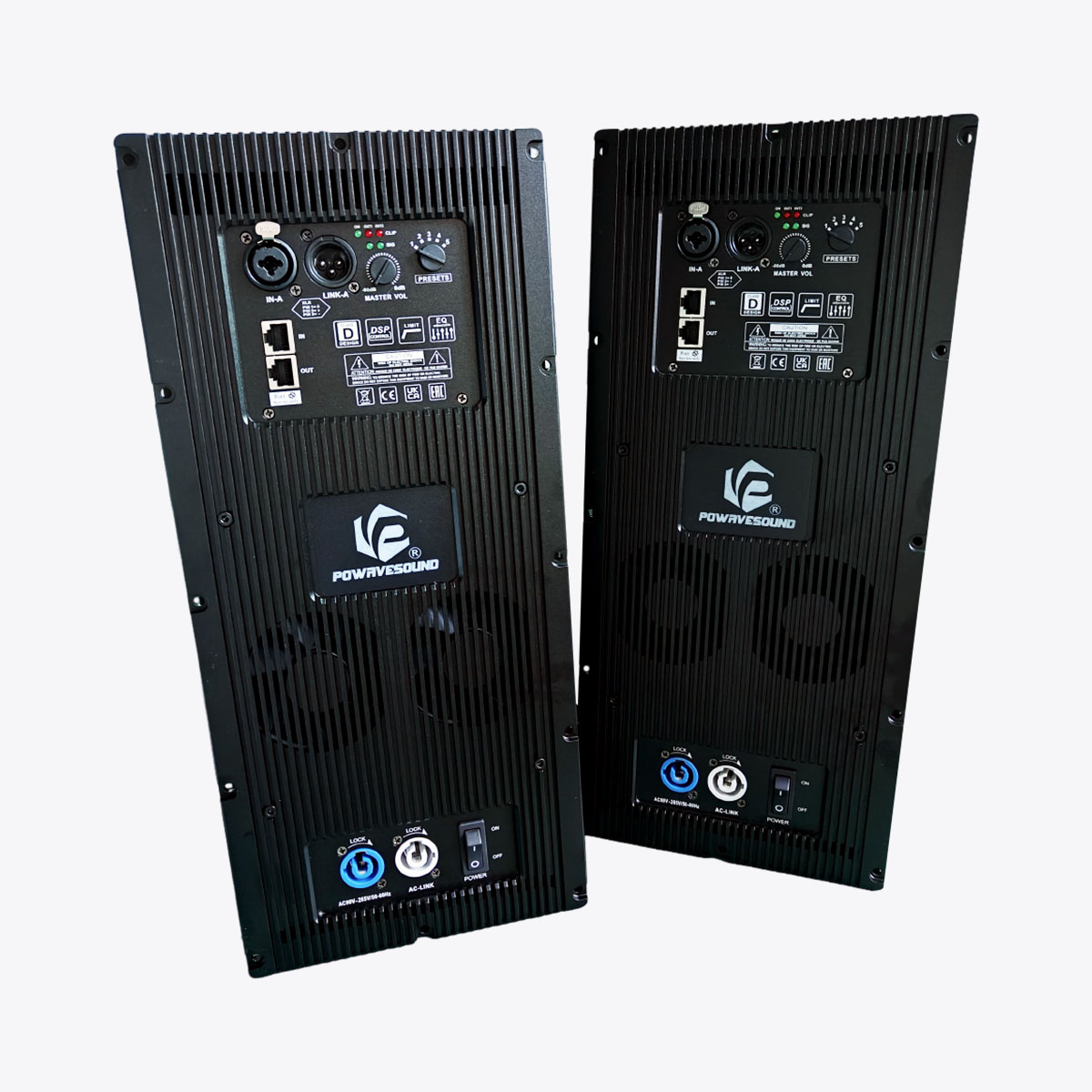

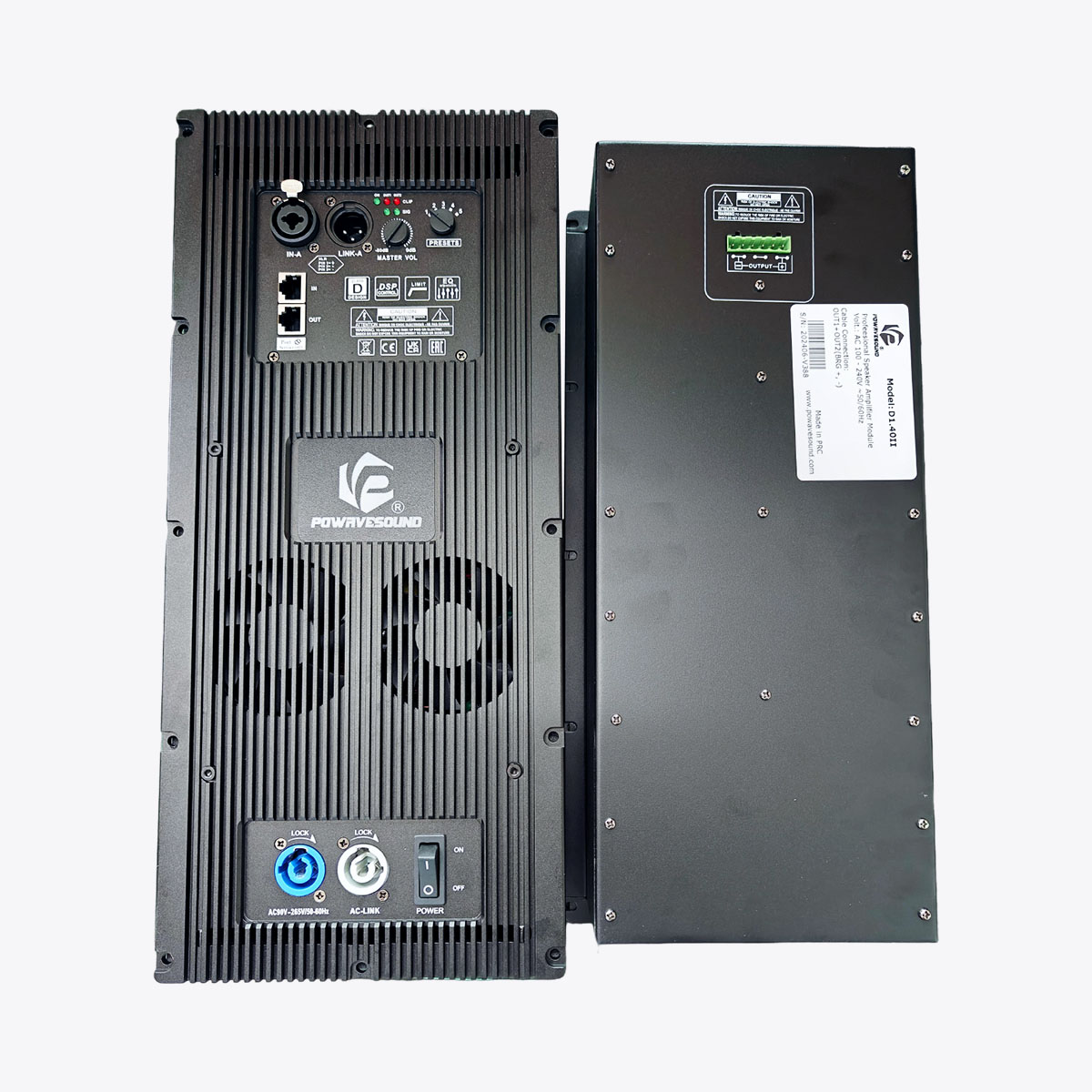

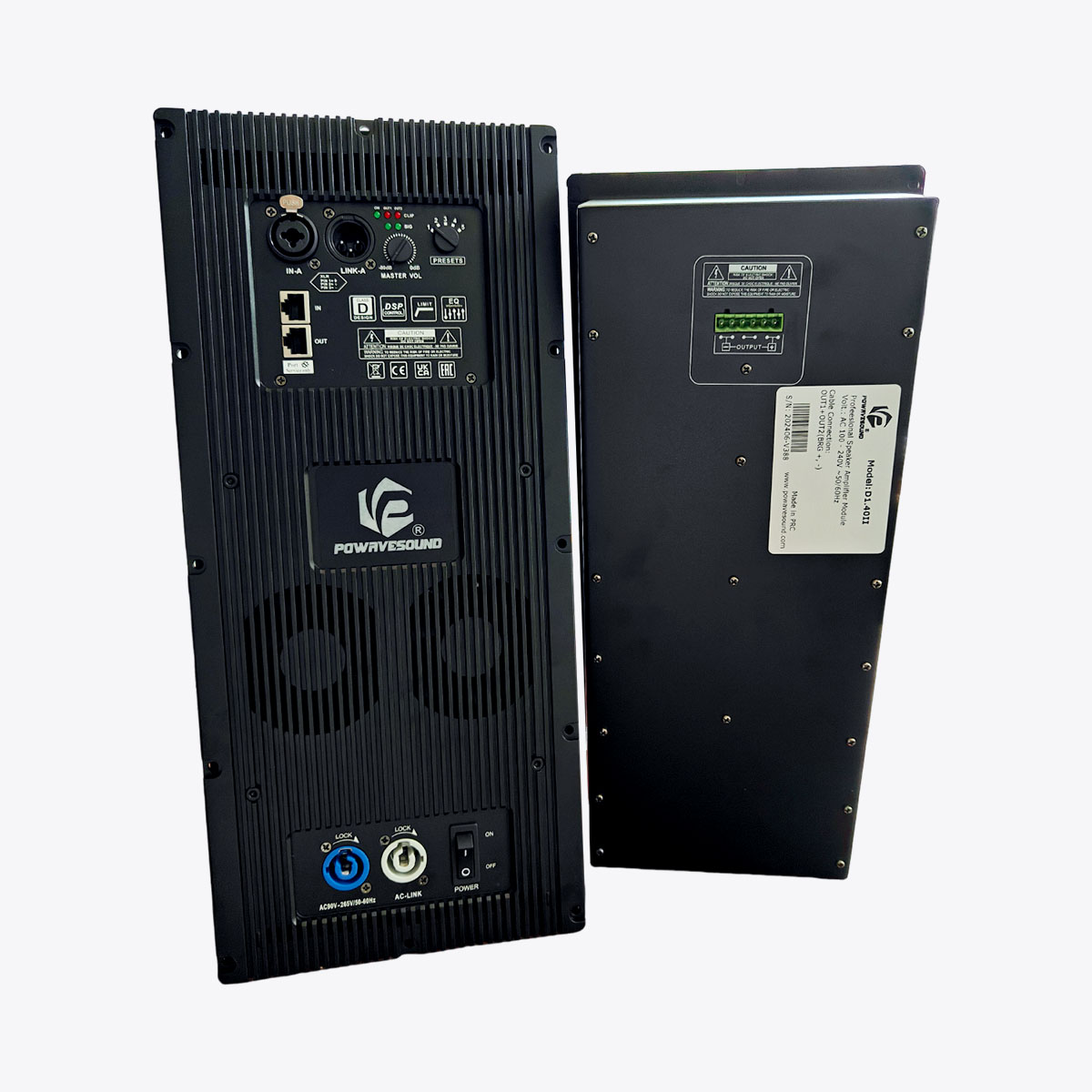

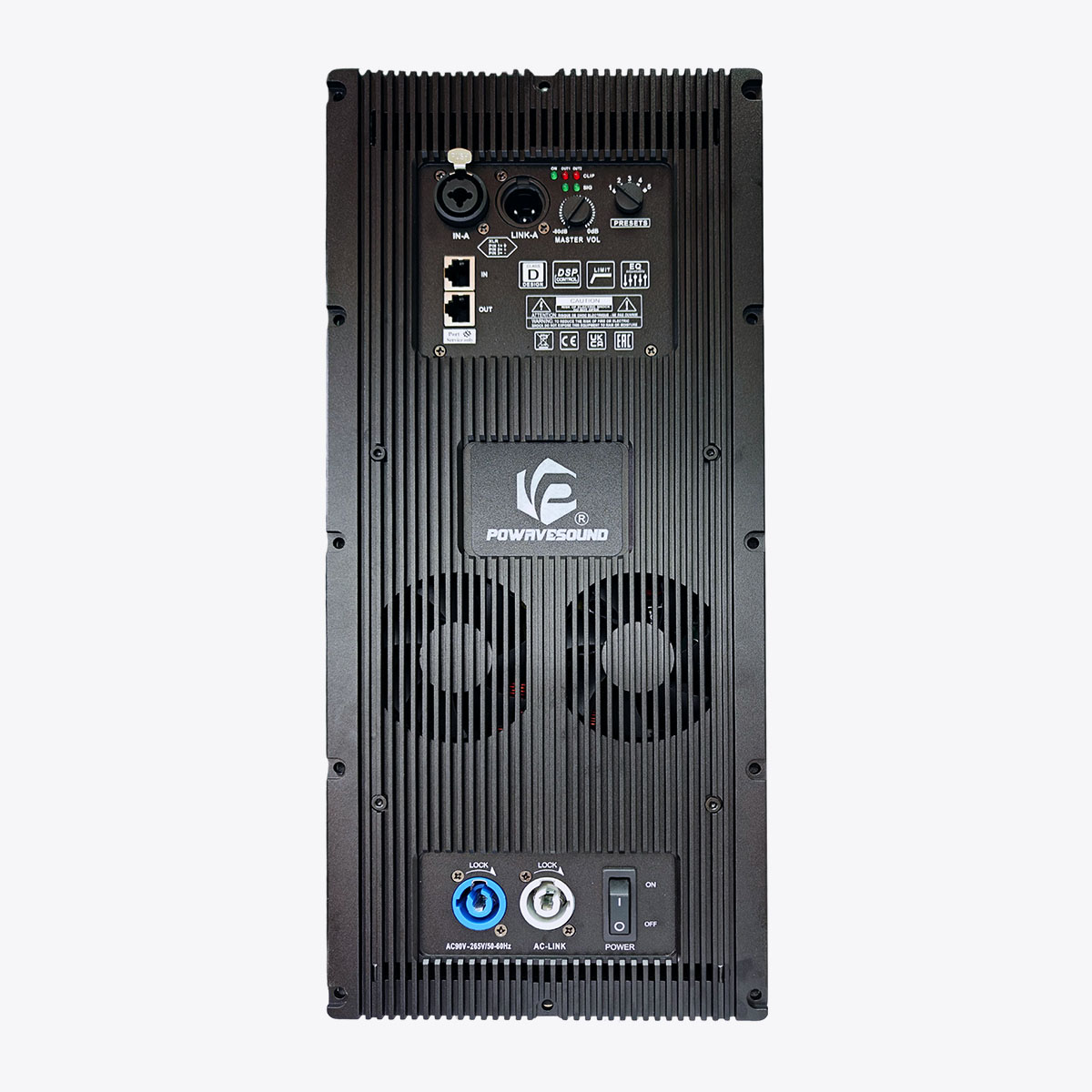

D1.40II D2.40II 4000W Active Speaker Amplifier Module for Single & Double Subwoofer
- 4000W 2*4000W optional.
- Widely used in Single & Double Subwoofer 18", 21", 2*15", 2*18", 2*21".
- Built-in high-performance DSP: ADI, ADAU1452, 96kHz, 1in 1out/2out.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | D1.40II, D2.40II |
| DSP Type | ADI, ADAU1452, 96kHz, 1in 1out/2out |
| RMS | D1.40II: 4000W @8Ω , N/A @4Ω
D2.40II: 2*4000W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥1000 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | 1.7V(DSP Adjustable) |
| Input/Output Connector | XLR |
| Dimension(W*H*D) | 192*426*93.5mm |
| Logistics Information: | |
| Packing Size | 52*28*18cm |
| Shipping Weight | 8kg |
* Features and specifications are subject to change without prior notice.
