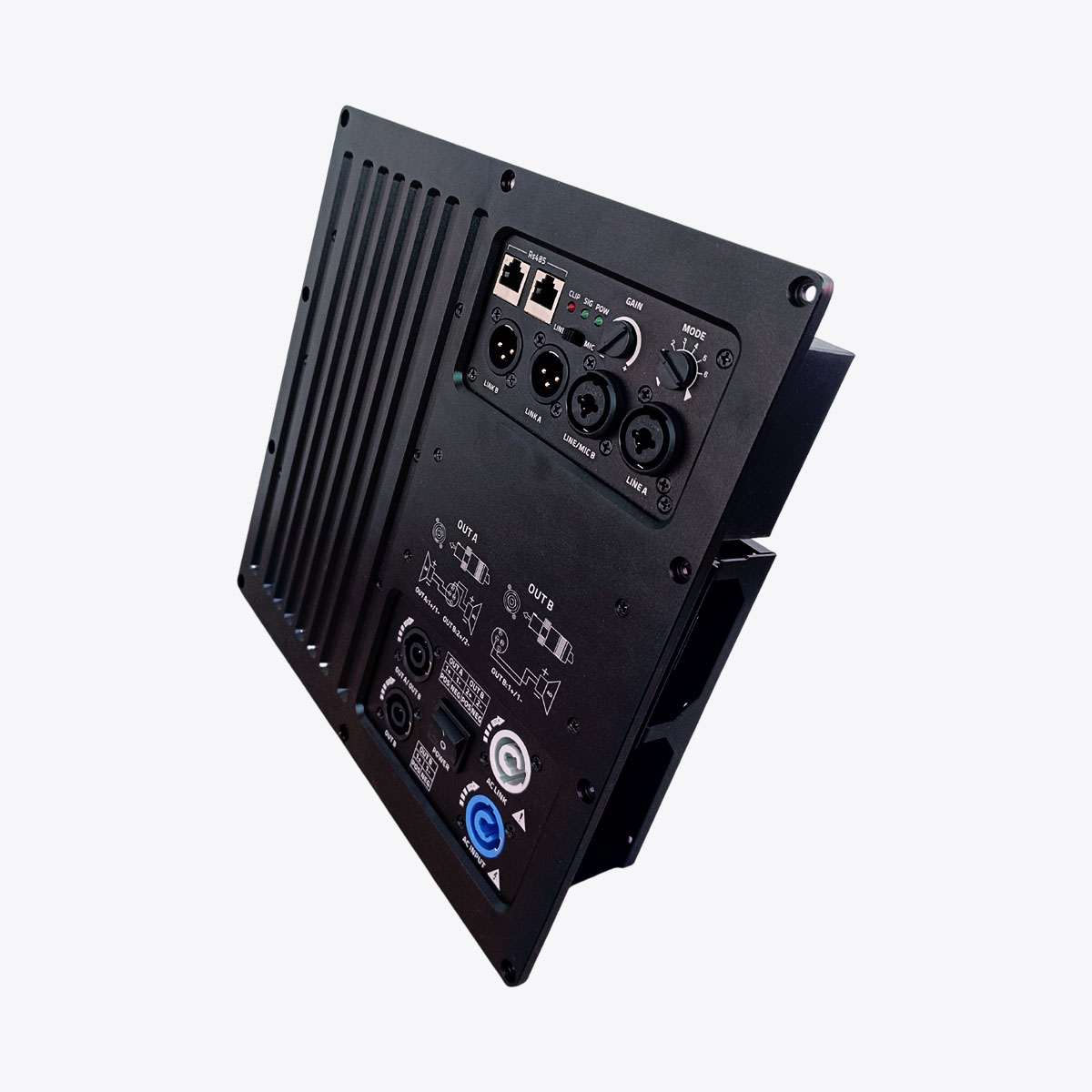

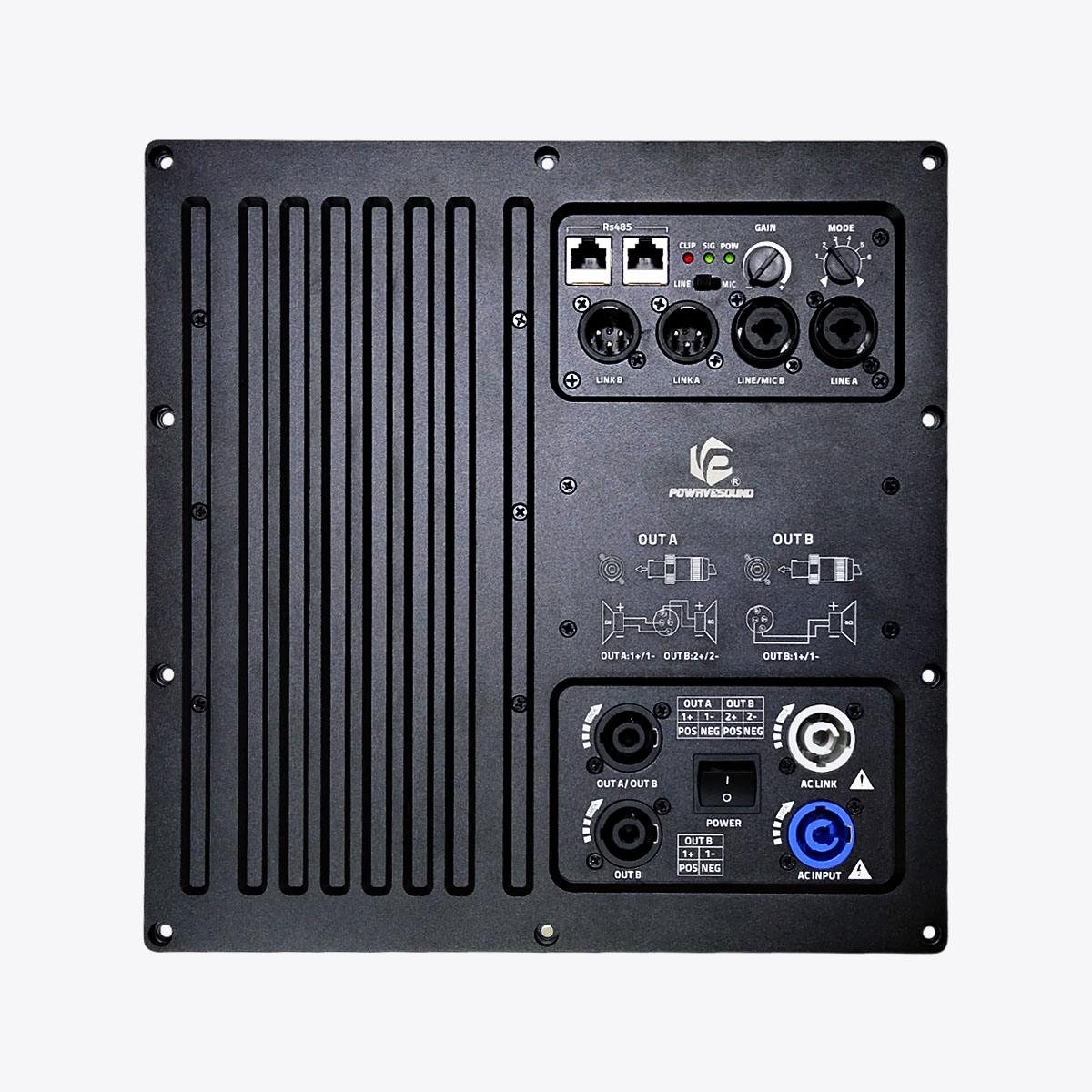

DP Series 2in 3out
Triple Channel Active Speaker Amplifier Module for 2.1 Combo Active Sound System
- 200W 350W 400W 600W 800W 900W 1200W optional.
- Widely used in 2.1 Combo Active Sound System(Subwoofer + Full Range Speaker).
- Built-in high-performance DSP: 24bit 96kHz, 2in 3out.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).

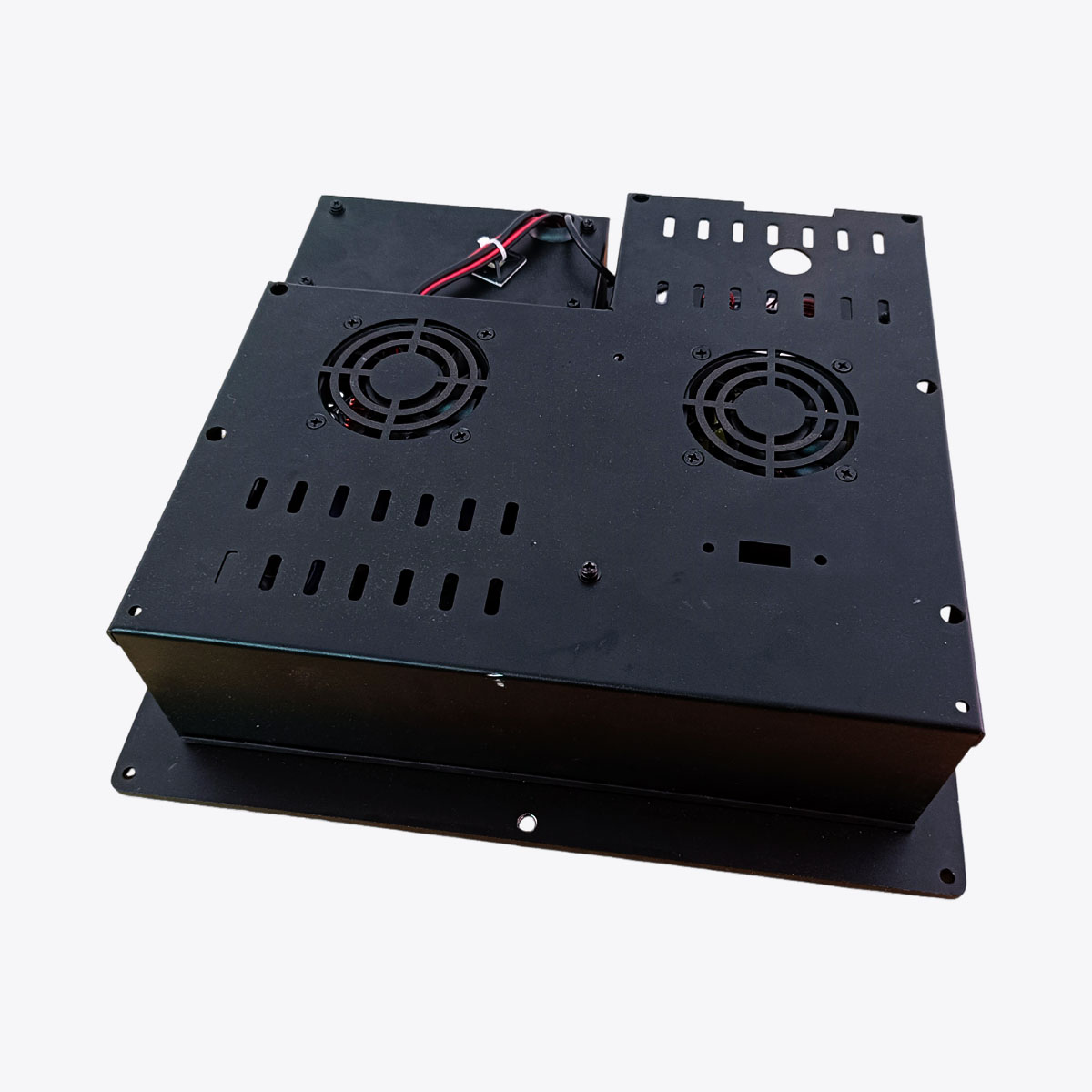

- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | DP3.26, DP3.48, DP3.412 |
| DSP Type | 24bit 96kHz, 2in 3out |
| RMS | DP3.26: L output: 200W @8Ω, 350W @4Ω; R output: 200W @8Ω, 350W @4Ω; Sub: 600W @8Ω, 900W @4Ω
DP3.48: L output: 400W @8Ω, N/A @4Ω; R output: 400W @8Ω, N/A @4Ω; Sub: 800W @8Ω, N/A @4Ω DP3.412: L output: 400W @8Ω, N/A @4Ω; R output: 400W @8Ω, N/A @4Ω; Sub: 1200W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | <0.01% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Input Sensitivity | 0.775V(DSP Adjustable) |
| Input/Output Connector | XLR, Combo Jack |
| Dimension(W*H*D) | 284.3*282.8*69mm |
| Logistics Information: | |
| Packing Size | 36*36*14CM |
| Shipping Weight | 5kg |
* Features and specifications are subject to change without prior notice.
