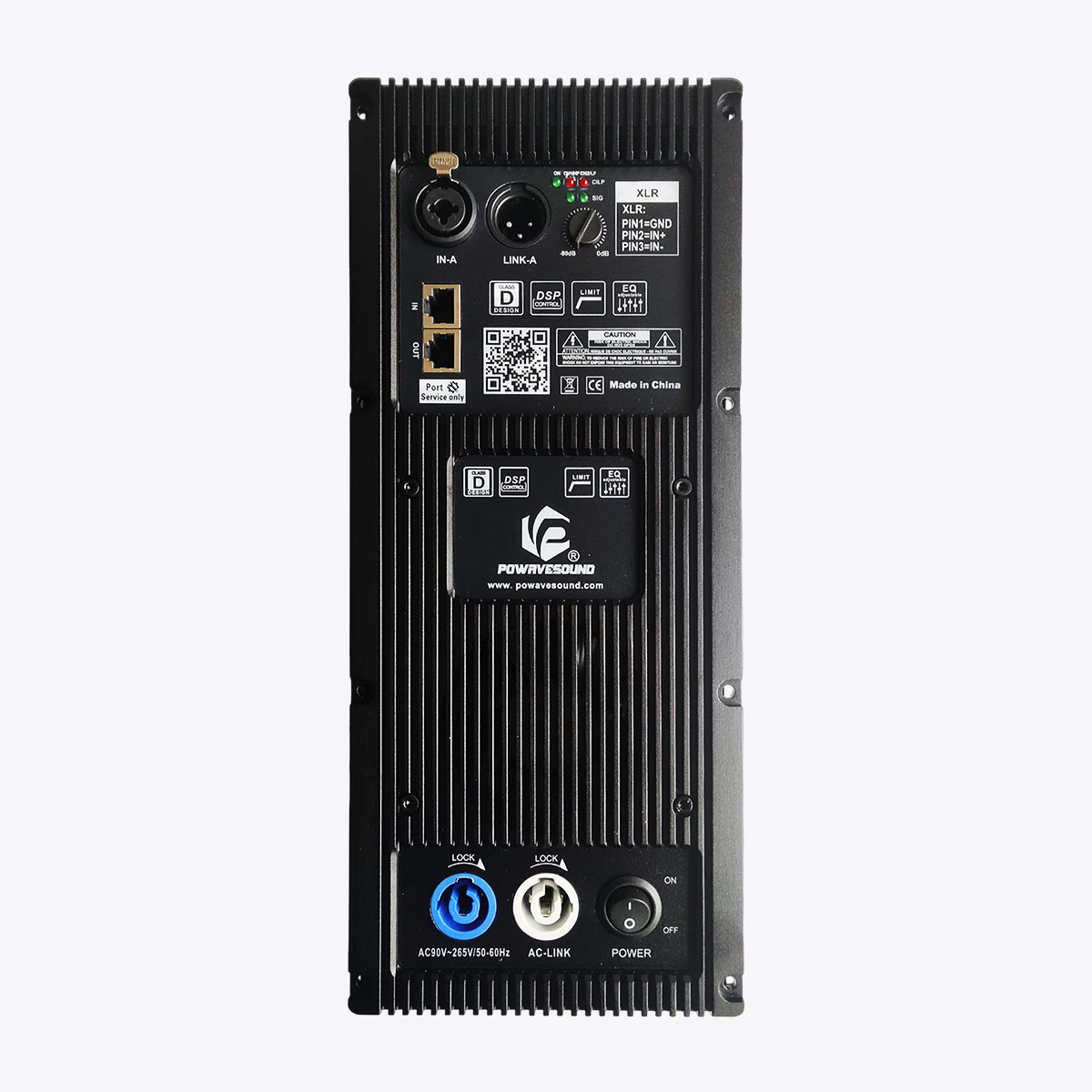

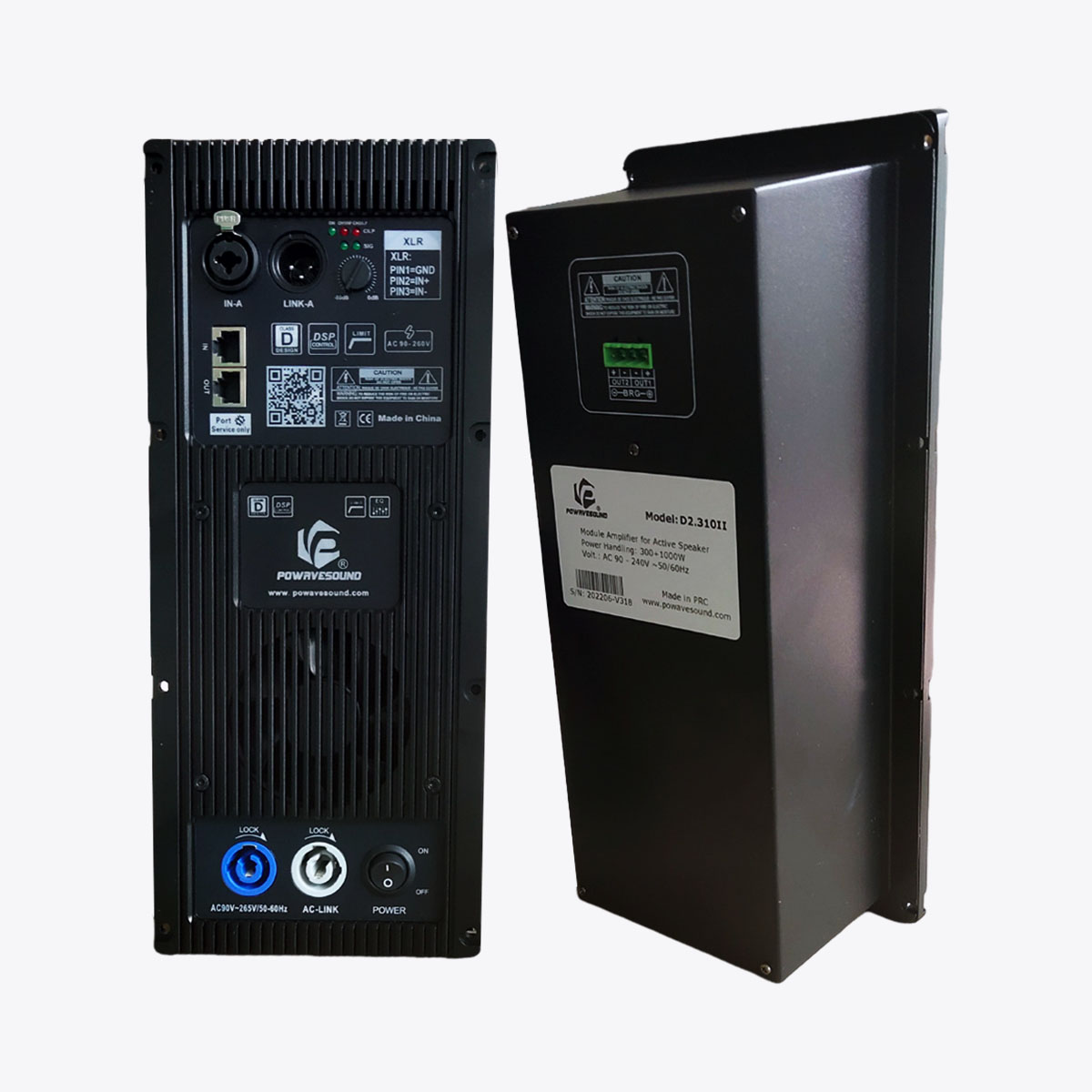

D Series 1in 1out
Single Channel Active Speaker Amplifier Module for Single & Double Subwoofer
- 800W 1200W 1500W 2000W 2500W 2800W 3000W optional.
- Widely used in Single & Double Subwoofer 8", 10", 12", 15", 18", 21", 2*15", 2*18".
- Built-in high-performance DSP: ADI, ADAU1452, 96kHz, 1in 1out.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | D1.08II, D1.12II, D1.15II, D1.20II, D1.25II |
| DSP Type | ADI, ADAU1452, 96kHz, 1in 1out |
| RMS | D1.08II: 800W @8Ω , 1200W @4Ω
D1.12II: 1200W @8Ω, 2000W @4Ω D1.15II: 1500W @8Ω, 2500W @4Ω D1.20II: 2000W @8Ω, 3000W @4Ω D1.25II: 2800W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400(D1.08II), ≥500 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | 1.7V(DSP Adjustable) |
| Input/Output Connector | XLR |
| Dimension(W*H*D) | 142*332*93.5mm |
| Logistics Information: | |
| Packing Size | 42*22*18cm |
| Shipping Weight | 4kg |
* Features and specifications are subject to change without prior notice.
