HD Series 1in 4out

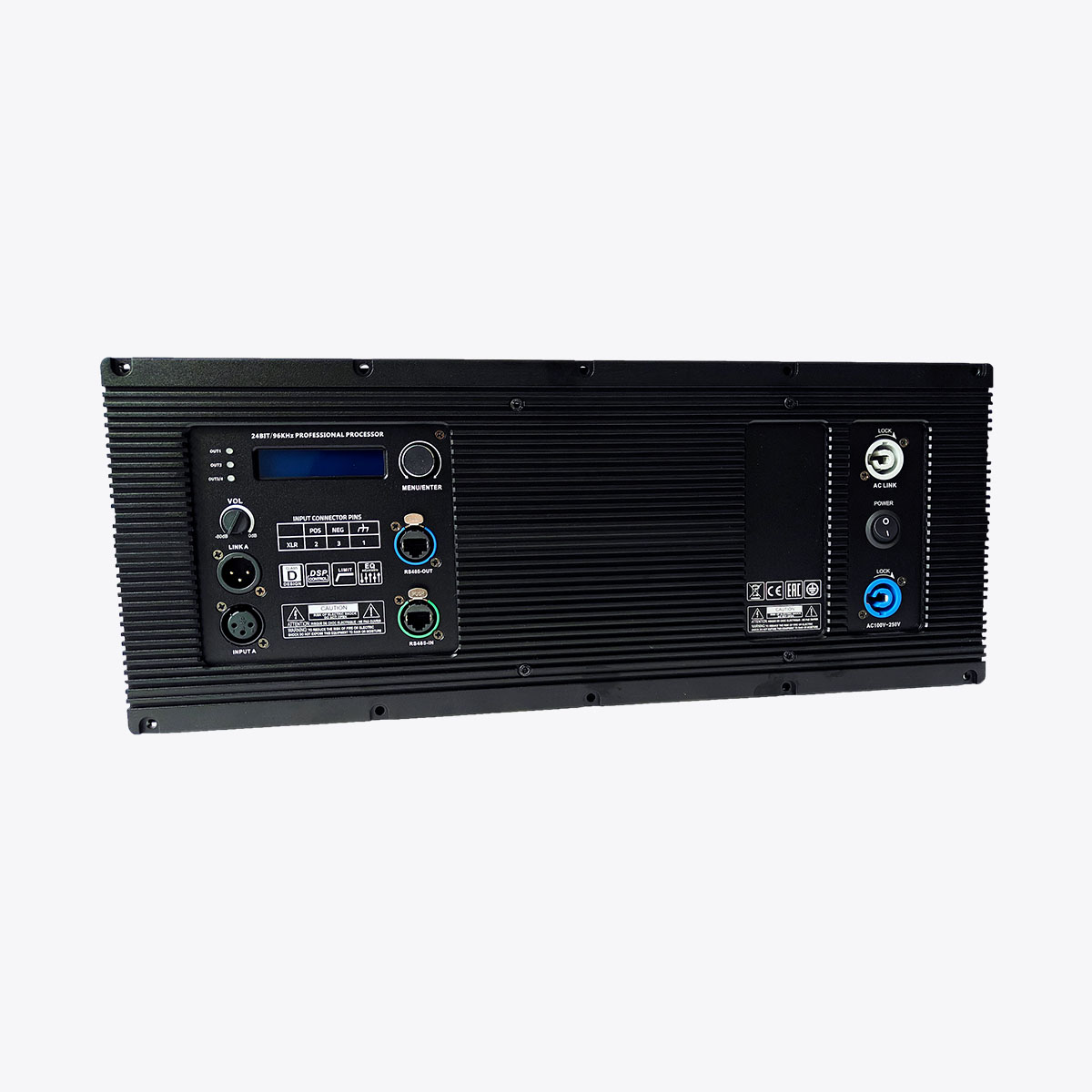

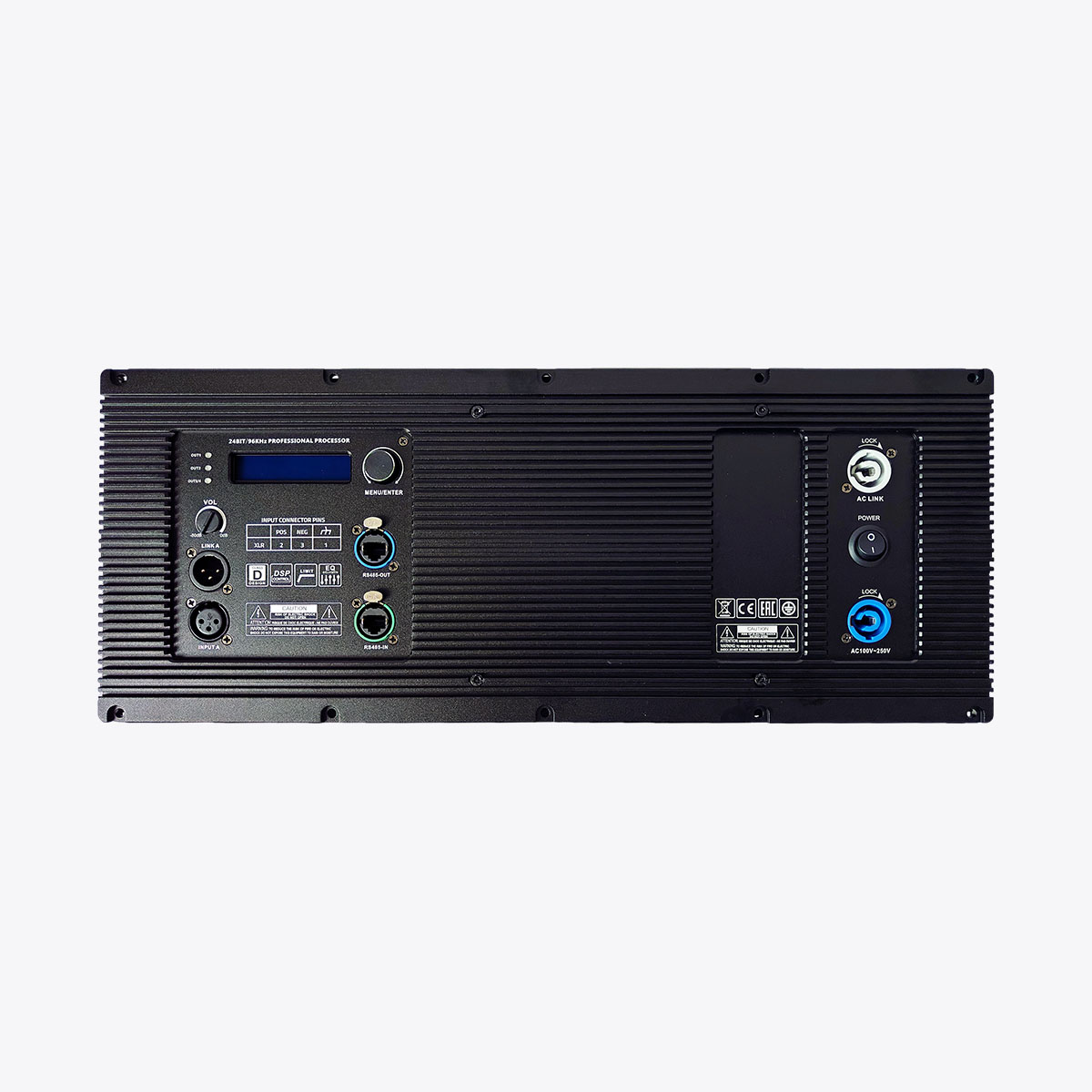

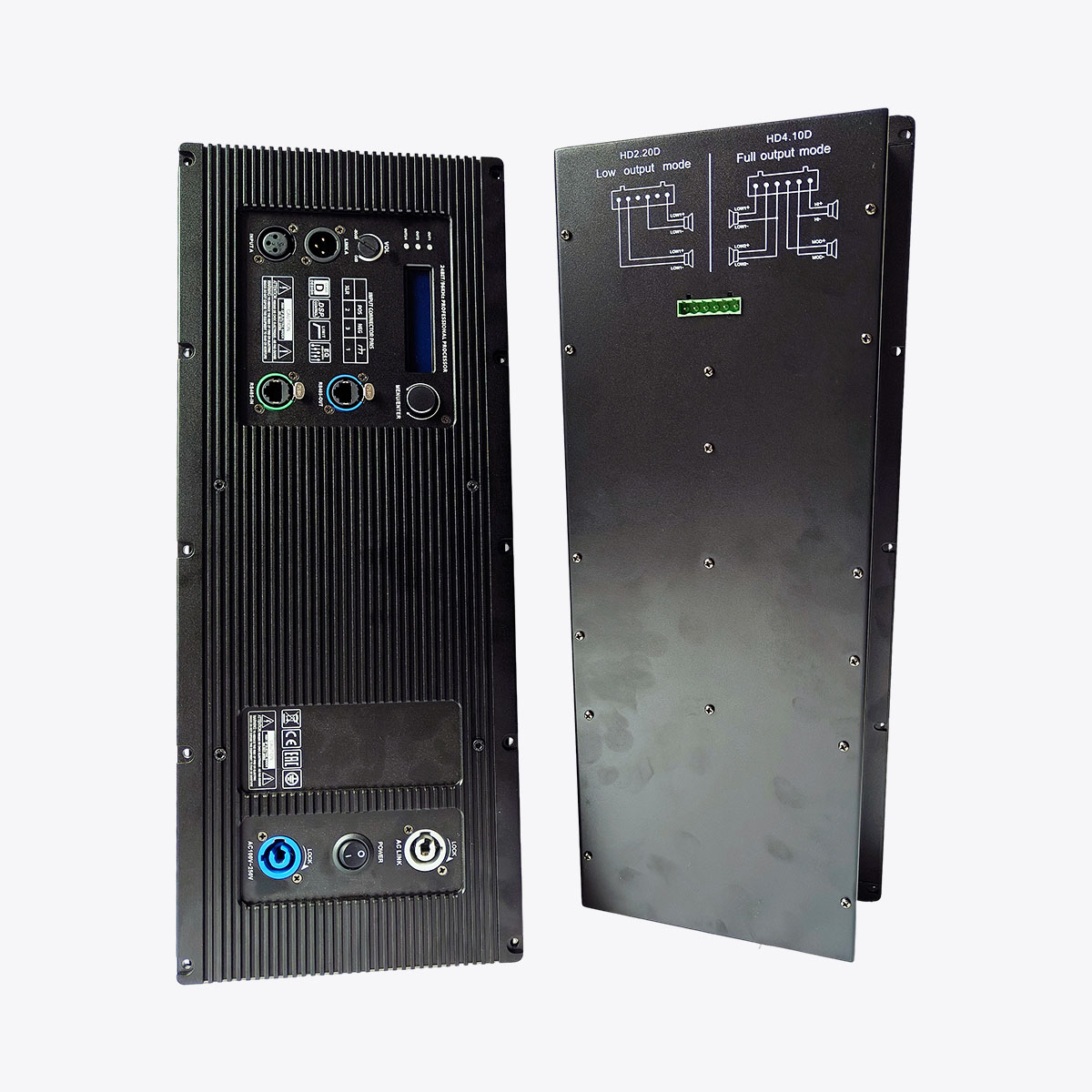

800W~1500W HD Series Active Speaker Amplifier Module, RMS Limiter + PEAK Limiter
- 800W~1500W optional.
- Widely used in 2-way Speaker, Line Array System, Single & Double Subwoofer 12'', 15'', 18", 21", 2*18".
- Built-in high-performance DSP: ADI, ADAU1452, 96kHz, 1in 3out, RMS Limiter + PEAK Limiter(AMP OUT3, OUT4 controled by DSP OUT3).
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | HD4.08, HD4.10 |
| DSP Type | ADI, ADAU1452, 96kHz, 1in 3out, RMS Limiter + PEAK Limiter(AMP OUT3, OUT4 controled by DSP OUT3) |
| RMS | HD4.08: OUT1: 800W @8Ω, 1200W @4Ω; OUT2: 800W @8Ω, 1200W @4Ω; OUT3: 800W @8Ω, 1200W @4Ω; OUT4: 800W @8Ω, 1200W @4Ω
HD4.10: OUT1: 1000W @8Ω, 1500W @4Ω; OUT2: 1000W @8Ω, 1500W @4Ω; OUT3: 1000W @8Ω, 1500W @4Ω; OUT4: 1000W @8Ω, 1500W @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥50V/μs |
| Damping Factor | ≥800 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage, PFC power supply) |
| Input Sensitivity | HD4.08: 1.25V
HD4.10: 1.45V (DSP Adjustable) |
| Input/Output Connector | XLR |
| Dimension(W*H*D) | 192*484*93.5mm |
| Logistics Information: | |
| Packing Size | 52*28*18cm |
| Shipping Weight | 8kg |
* Features and specifications are subject to change without prior notice.
