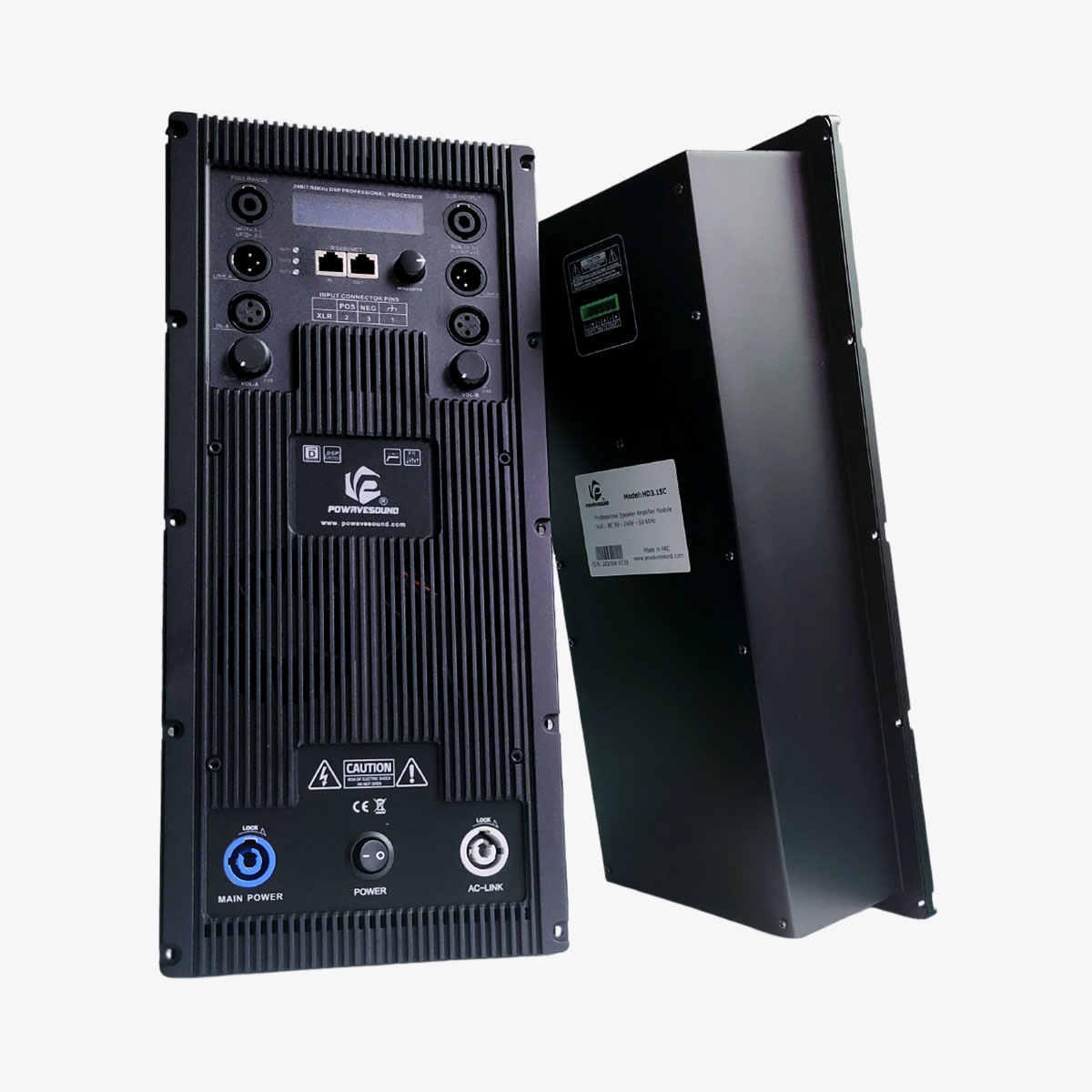

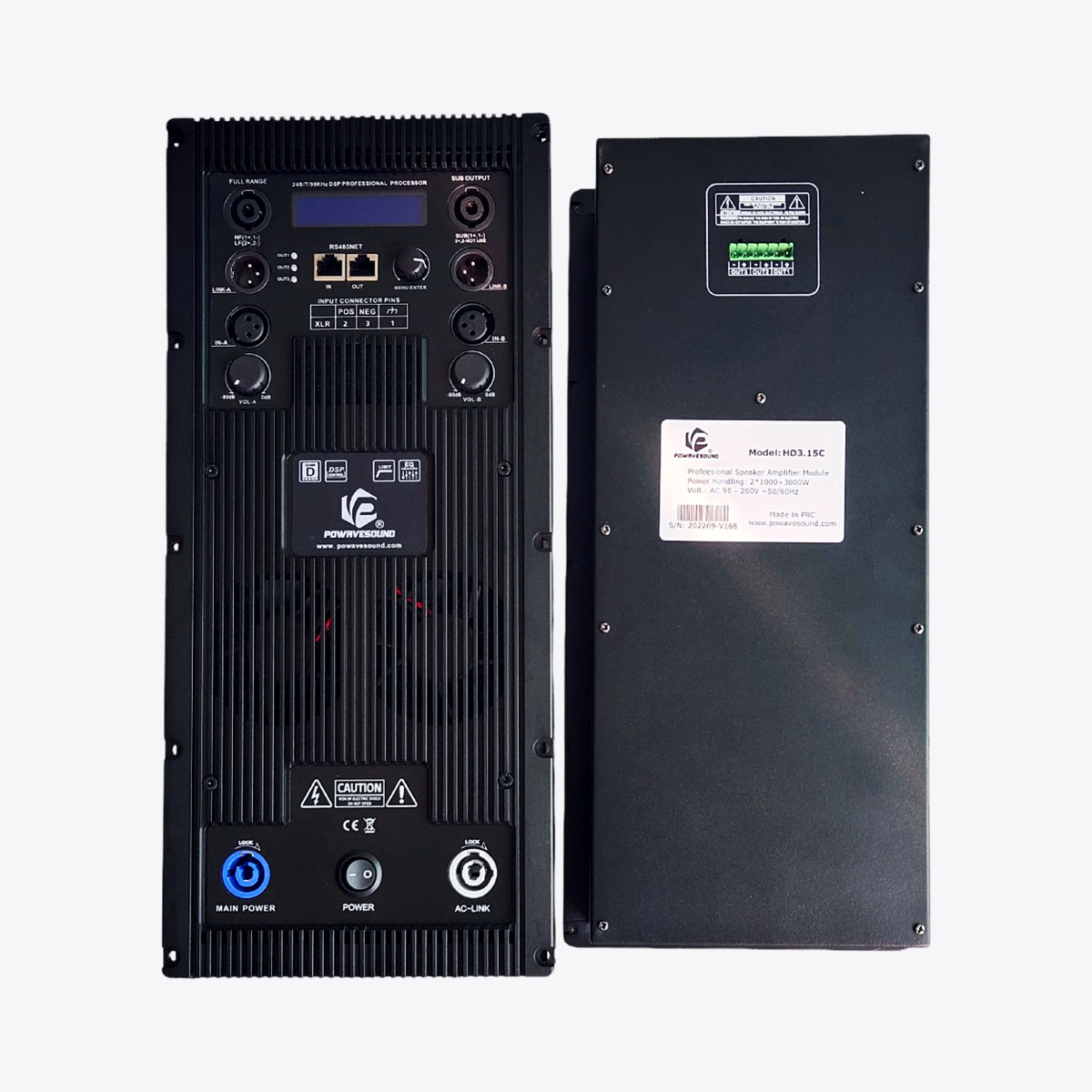

HD Series 2 in 3 out
600W~3000W Triple Channel Active Speaker Amplifier Module, RMS Limiter + PEAK Limiter
- 600W~3000W optional.
- Widely used in 2.1 Combo Active Sound System(Subwoofer + Full Range Speaker).
- Built-in high-performance DSP: ADI, ADAU1452, 96kHz, 2in 3out, RMS Limiter + PEAK Limiter.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | HD3.12, HD3.15, HD3.15C |
| DSP Type | ADI, ADAU1452, 96kHz, 2in 3out, RMS Limiter + PEAK Limiter |
| RMS | HD3.12: OUT1: 600W @8Ω, 1200W @4Ω; OUT2: 600W @8Ω, 1200W @4Ω; OUT3: 1200W @8Ω, 2400W @4Ω
HD3.15: OUT1: 800W @8Ω, 1200W @4Ω; OUT2: 800W @8Ω, 1200W @4Ω; OUT3: 1200W @8Ω, 2400W @4Ω HD3.15C: OUT1: 1000W @8Ω, 1500W @4Ω; OUT2: 1000W @8Ω, 1500W @4Ω; OUT3: 3000W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥50V/μs |
| Damping Factor | ≥500 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage, PFC power supply) |
| Input Sensitivity | HD3.12: 1.6V
HD3.15: 1.6V HD3.15C: 1.7V (DSP Adjustable) |
| Input/Output Connector | XLR, Speakon |
| Dimension(W*H*D) | 192*426*93.5mm |
| Logistics Information: | |
| Packing Size | 52*28*18cm |
| Shipping Weight | 7Kg |
* Features and specifications are subject to change without prior notice.
