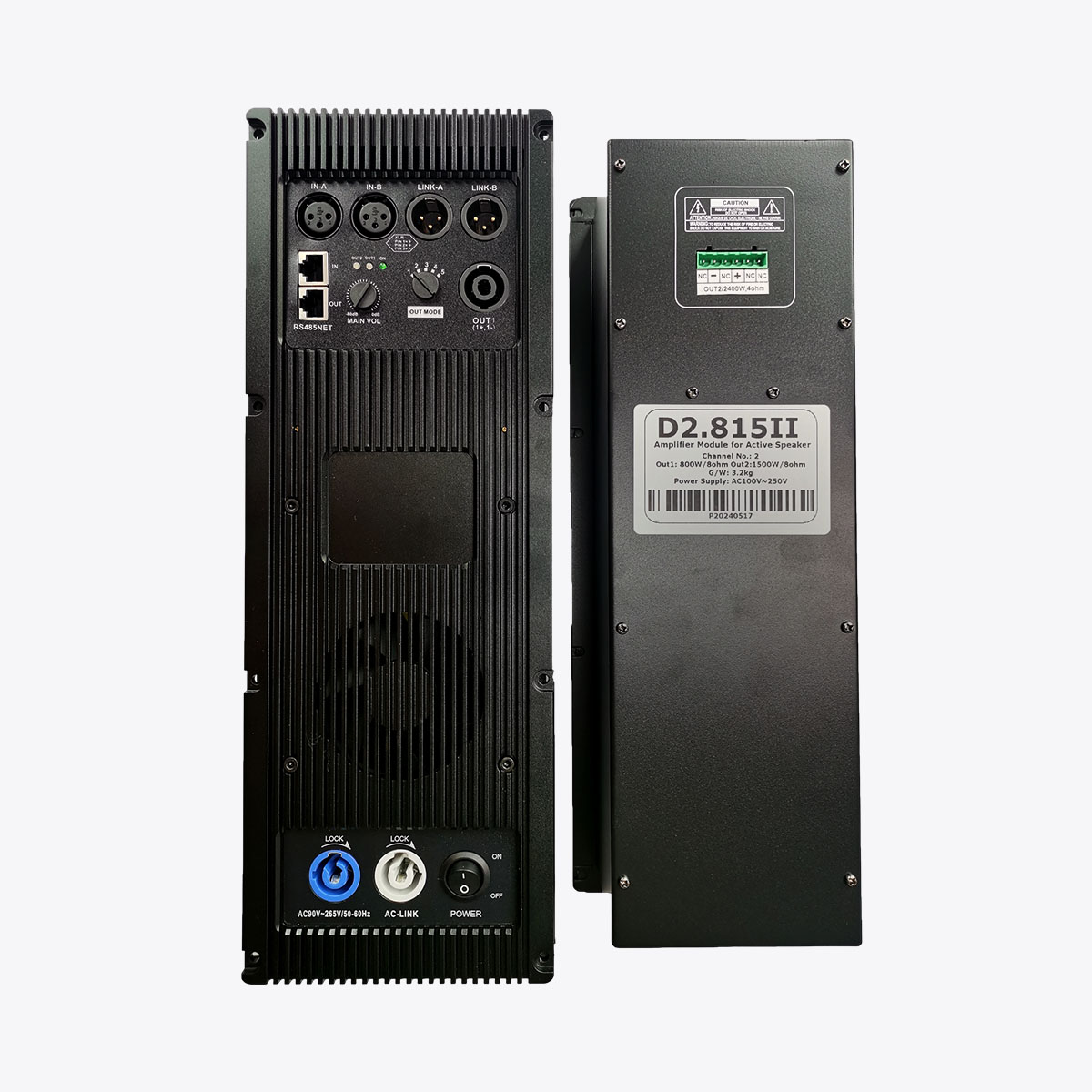

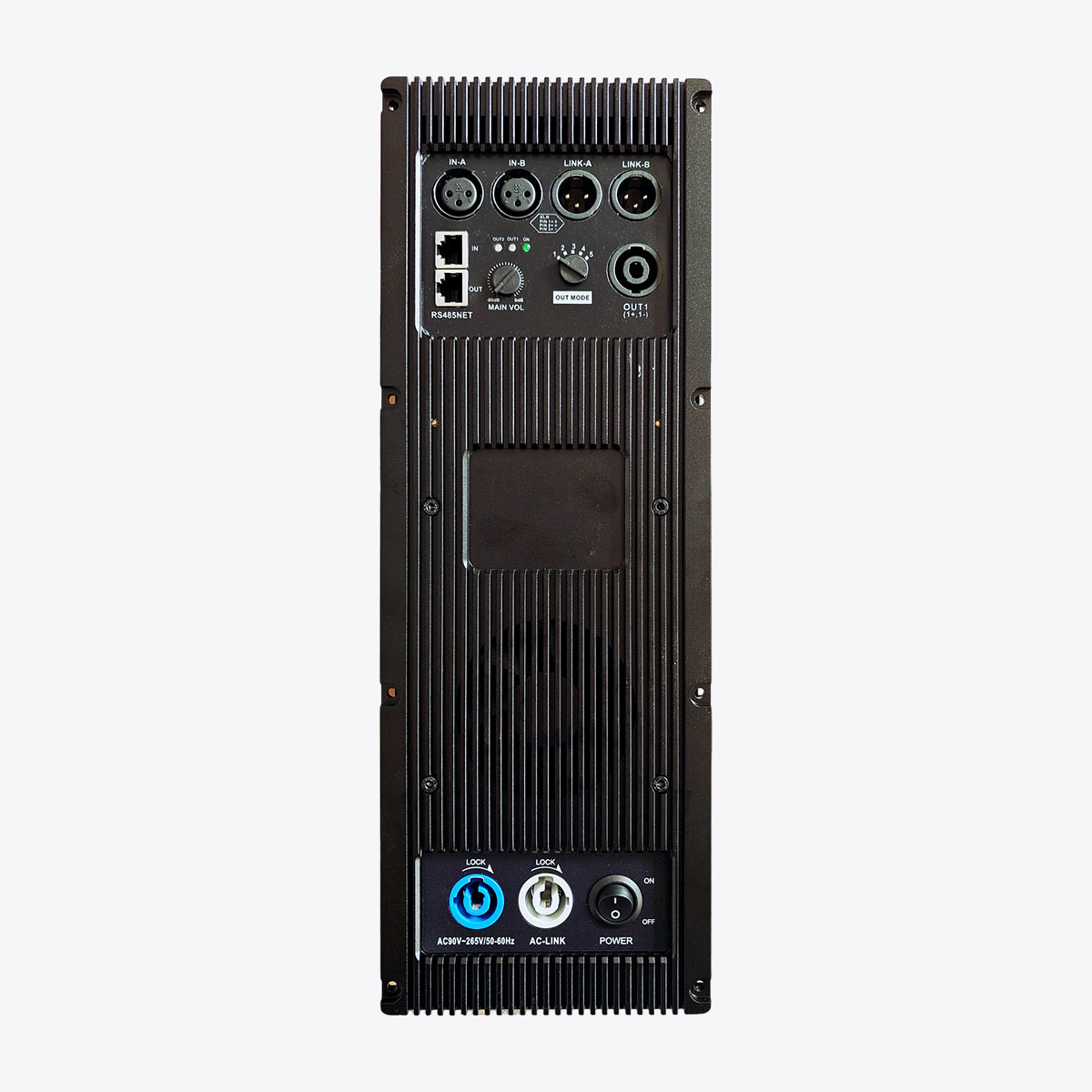

D-SP Series 2in 2out
Dual Channel Active Speaker Amplifier Module for Combo Active Sound System
- 600W 800W 900W 1200W 1500W 2400W optional.
- Widely used in 1.1 Combo Active Sound System(Subwoofer + Full Range Speaker).
- Built-in high-performance DSP: ADI, ADAU1452, 96kHz, 2in 2out.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | D2.615II-SP, D2.815II-SP |
| DSP Type | ADI, ADAU1452, 96kHz, 2in 2out |
| RMS | D2.615II-SP: OUT1(Speakon): 600W @8Ω, 900W @4Ω; OUT2(Rear): 1500W @8Ω, 2400W @4Ω
D2.815II-SP: OUT1(Speakon): 800W @8Ω, 1200W @4Ω; OUT2(Rear): 1500W @8Ω, 2400W @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥50V/μs |
| Damping Factor | ≥500 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | 1.7V(DSP Adjustable) |
| Input/Output Connector | XLR, Speakon |
| Dimension(W*H*D) | 142*398*93.5mm |
| Logistics Information: | |
| Packing Size | 52*28*18cm |
| Shipping Weight | 6kg |
* Features and specifications are subject to change without prior notice.
