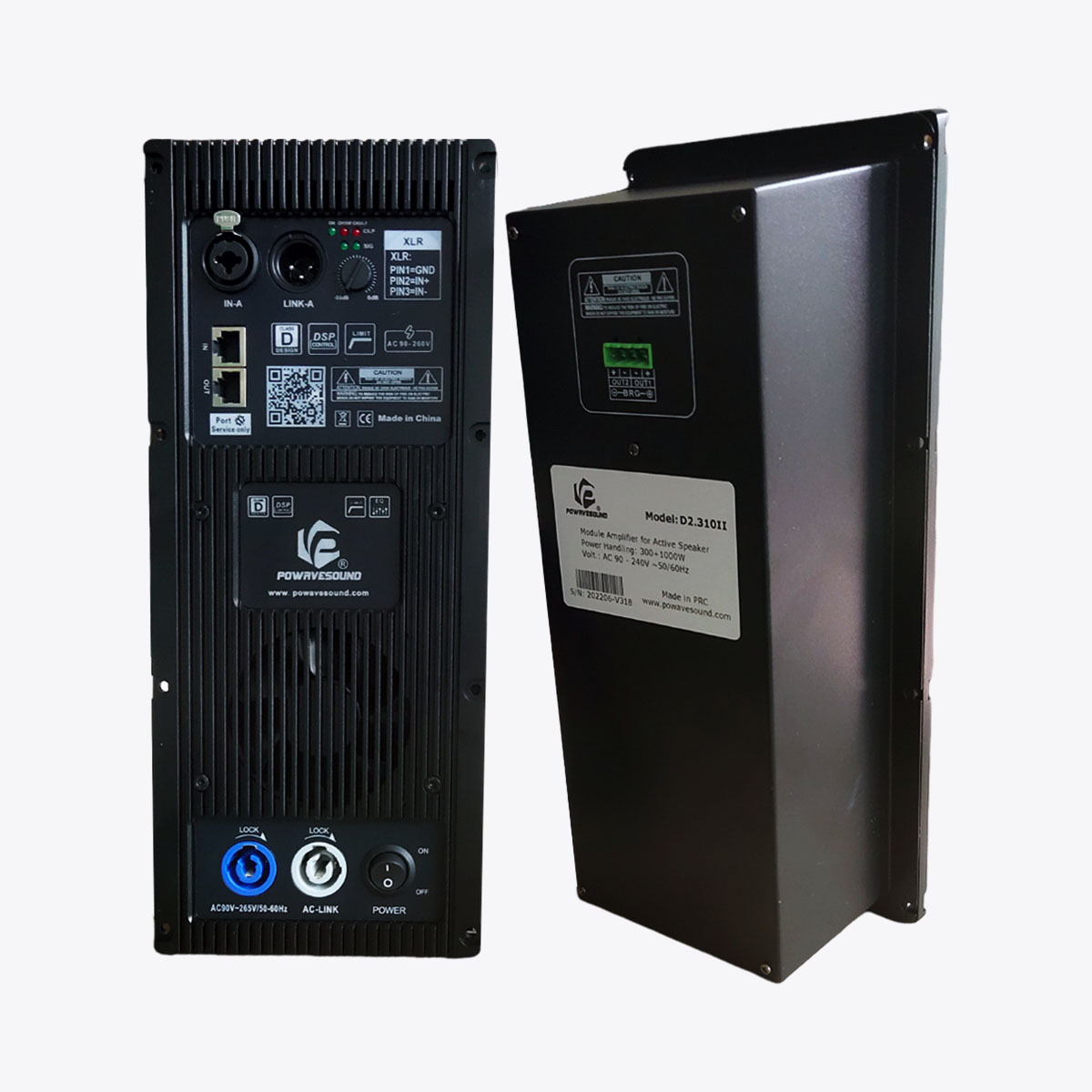

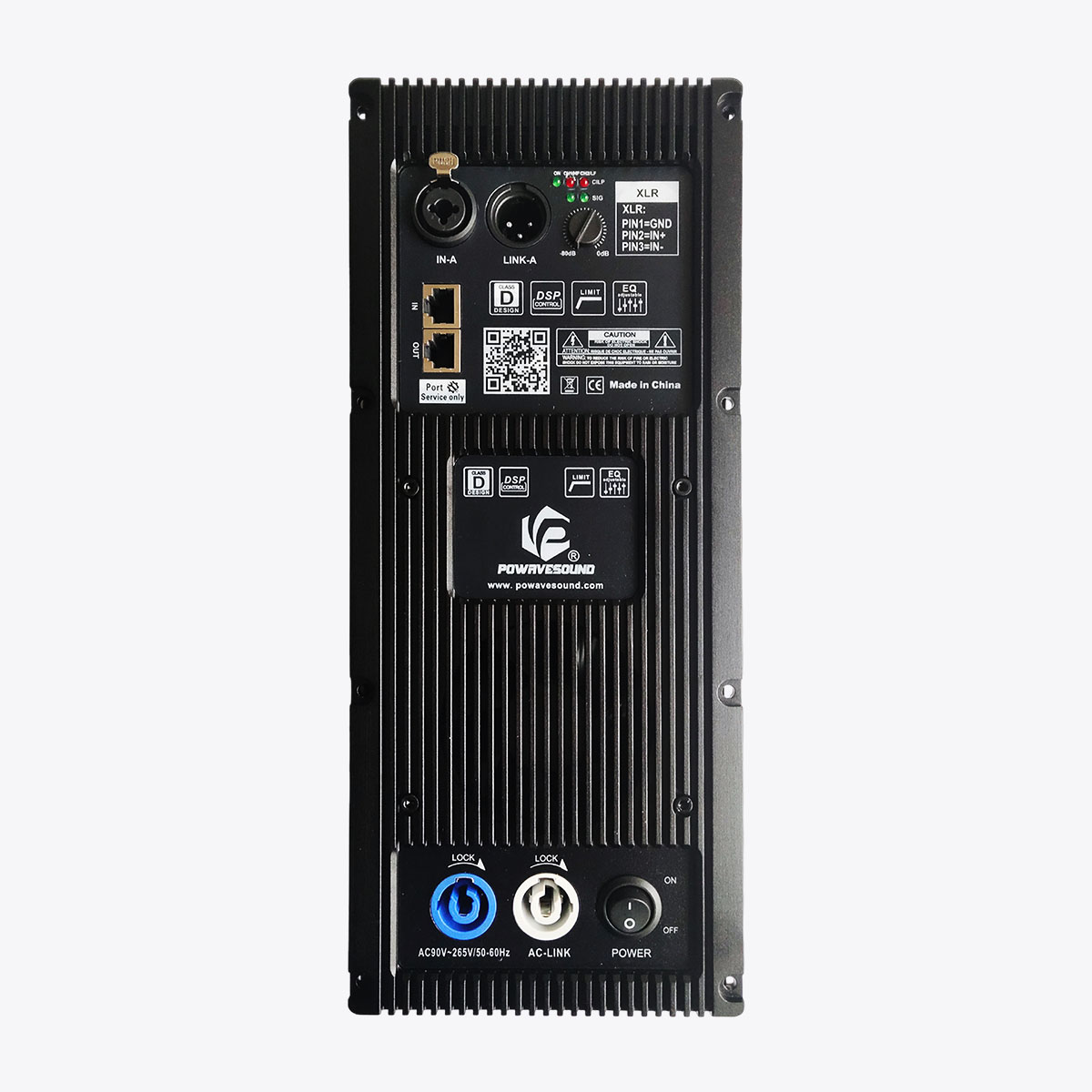

D Series 1in 2out
Dual Channel Active Speaker Amplifier Module for 2-way Speaker, Line Array System & Double Subwoofer
- 300W 500W 600W 800W 900W 1000W 1300W 1400W 2000W optional.
- Widely used in 2-way Speaker, Line Array System 10", 12", 2*8", 2*10", 2*12", 2*15", 2*18".
- Built-in high-performance DSP: ADI, ADAU1452, 96kHz, 1in 2out.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | D2.36II, D2.38II, D2.310II, D2.610II, D2.8II, D2.10II, D2.13II |
| DSP Type | ADI, ADAU1452, 96kHz, 1in 2out |
| RMS | D2.36II: OUT1: 300W @8Ω, 500W @4Ω; OUT2: 600W @8Ω, 1000W @4Ω
D2.38II: OUT1: 300W @8Ω, 500W @4Ω; OUT2: 800W @8Ω, 1400W @4Ω D2.310II: OUT1: 300W @8Ω, 500W @4Ω; OUT2: 1000W @8Ω, 2000W @4Ω D2.610II: OUT1: 600W @8Ω, 900W @4Ω; OUT2: 1000W @8Ω, 2000W @4Ω D2.8II: OUT1: 800W @8Ω, 1400W @4Ω; OUT2: 800W @8Ω, 1400W @4Ω D2.10II: OUT1: 1000W @8Ω, 2000W @4Ω; OUT2: 1000W @8Ω, 2000W @4Ω D2.13II: OUT1: 1300W @8Ω, N/A @4Ω; OUT2: 1300W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400, ≥500(D2.13II) |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | D2.36II: 1.4V
D2.38II: 1.6V D2.310II: 1.4V D2.610II: 1.4V D2.8II: 1.7V D2.10II: 1.7V D2.13II: 1.8V (DSP Adjustable) |
| Input/Output Connector | XLR |
| Dimension(W*H*D) | 142*332*93.5mm |
| Logistics Information: | |
| Packing Size | 42*22*19cm |
| Shipping Weight | 4kg |
* Features and specifications are subject to change without prior notice.
