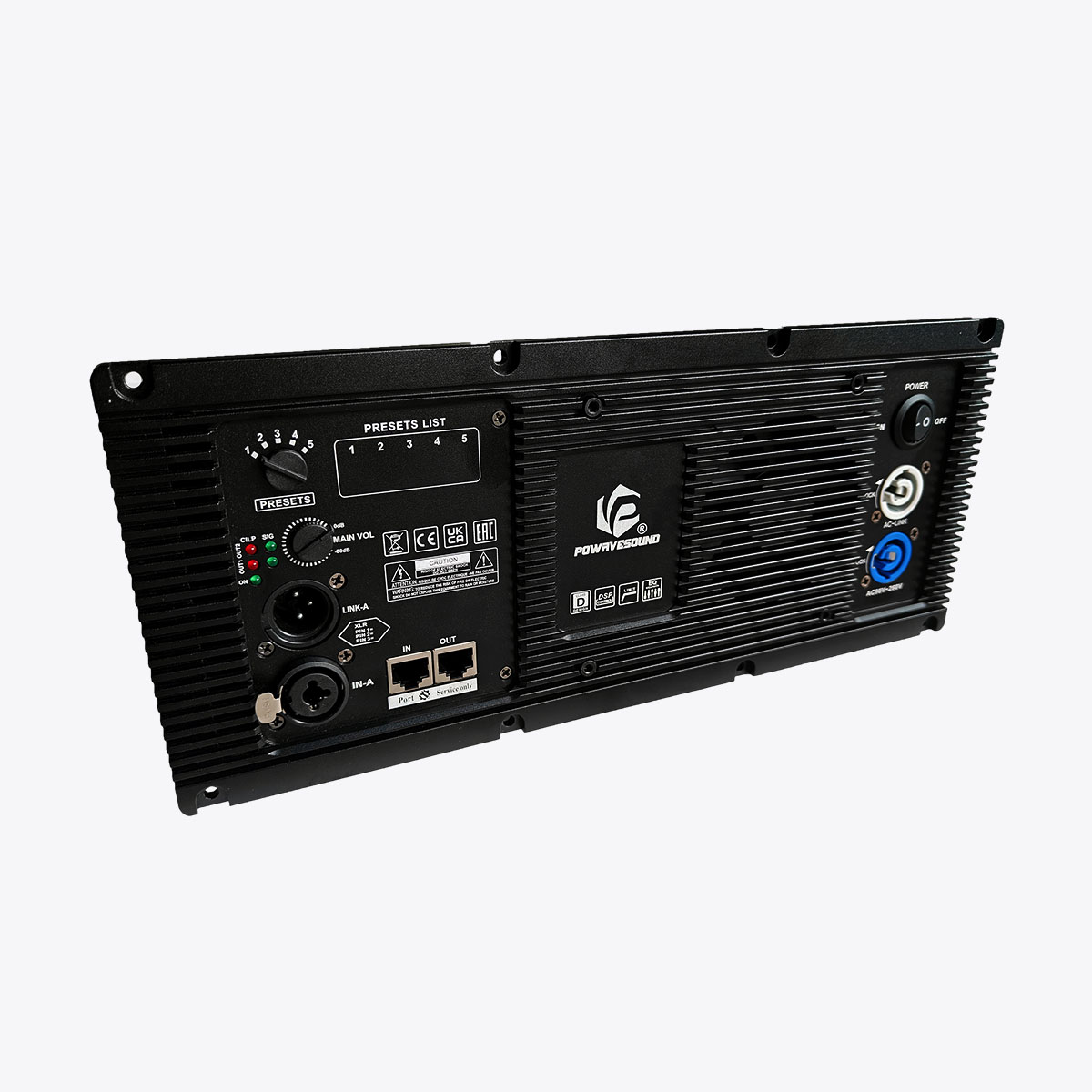

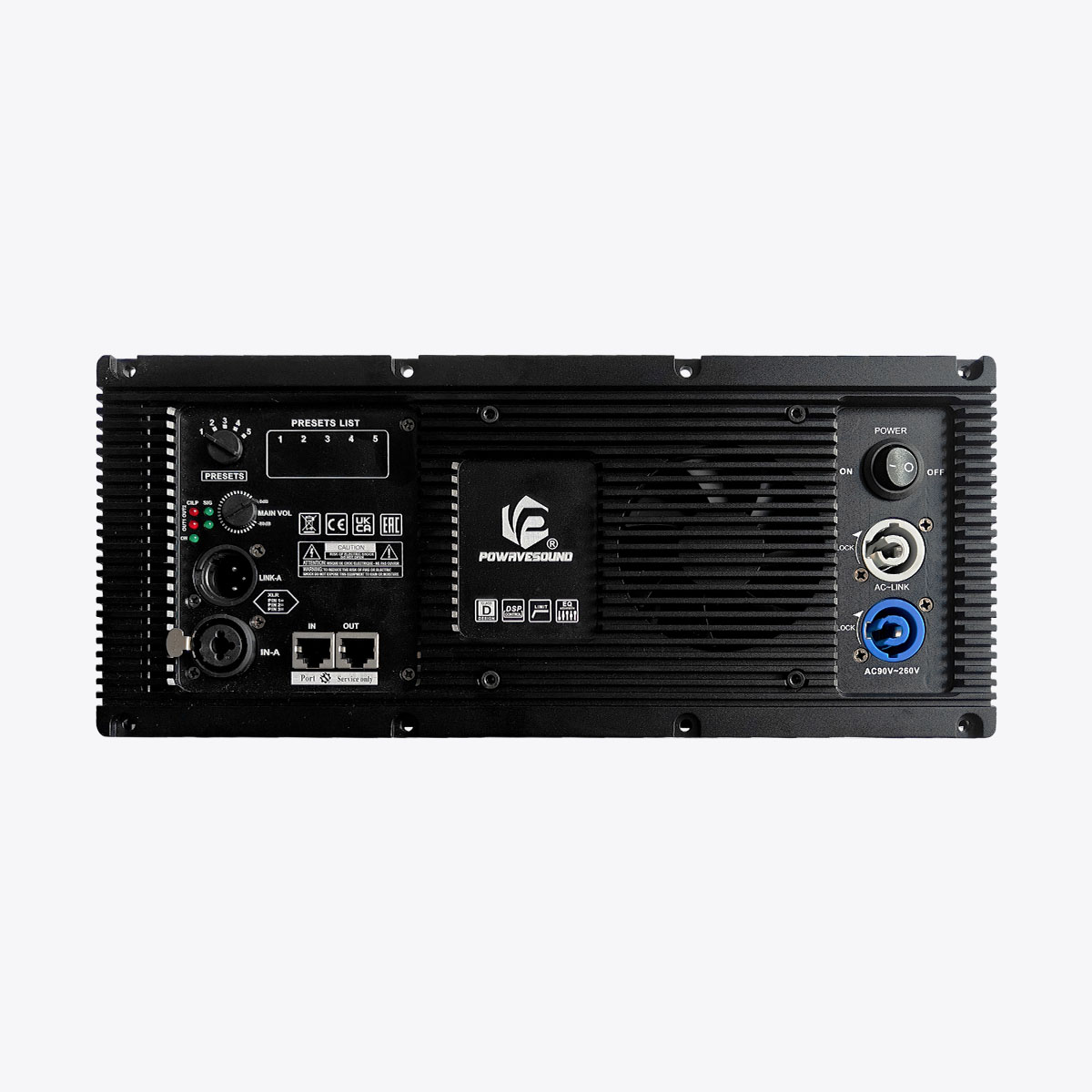

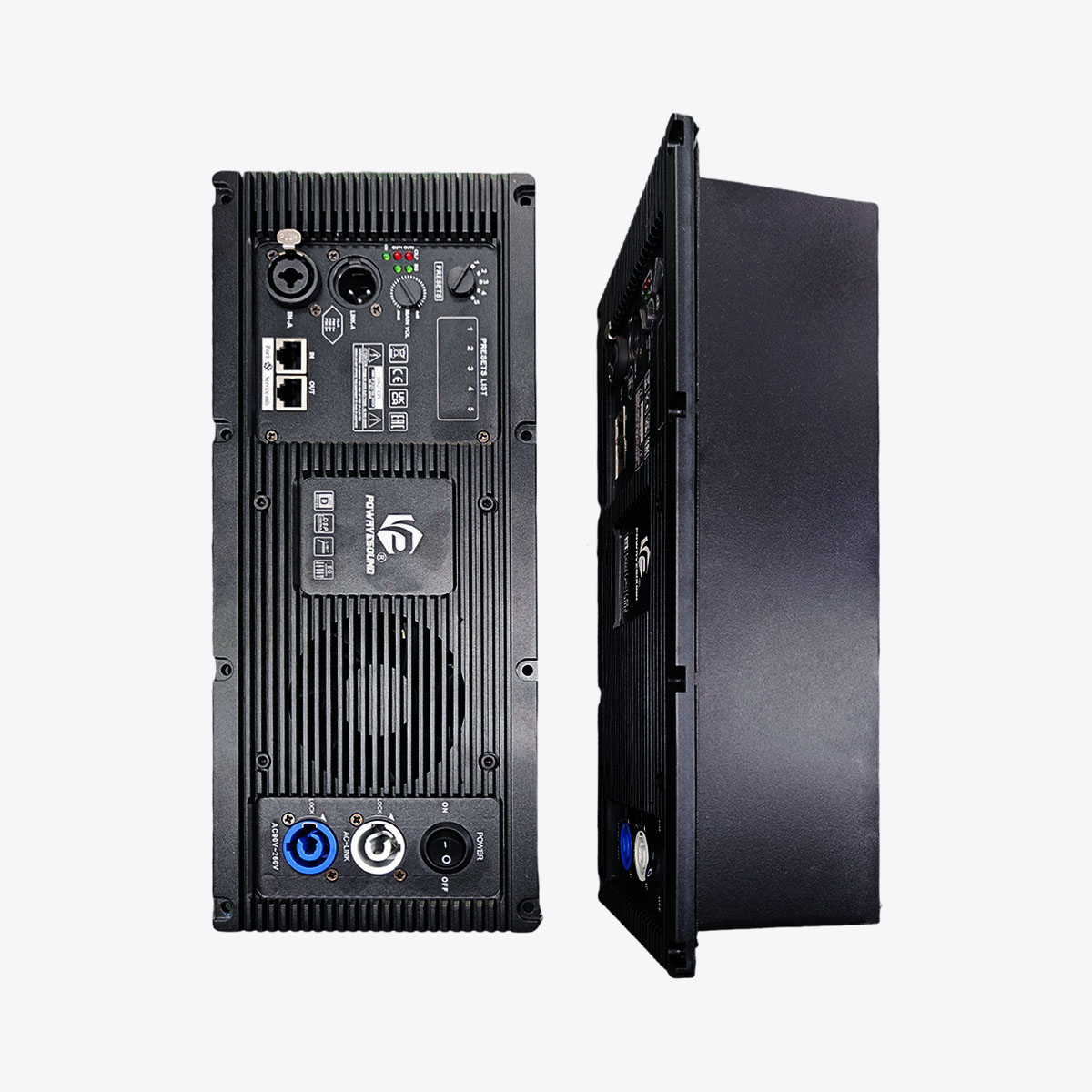

D LA Series 1in 2out

Dual Channel Active Speaker Amplifier Module for 2-way Line Array System

  • 300W 500W 600W 800W 1000W 1400W 2000W 2400W optional.
  • Widely used in 2-way Line Array System 10", 12", 2*8", 2*10", 2*12".
  • Built-in high-performance DSP: ADI, ADAU1452, 96kHz, 1in 2out.
  • Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
  • A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
  • Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
  • Compact design, easy integration.
  • OEM, ODM and customized services are available.
Categories: Module Amplifiers D-LA Series Dual Channel Line Array System
Request For Quotation
Technical Details :

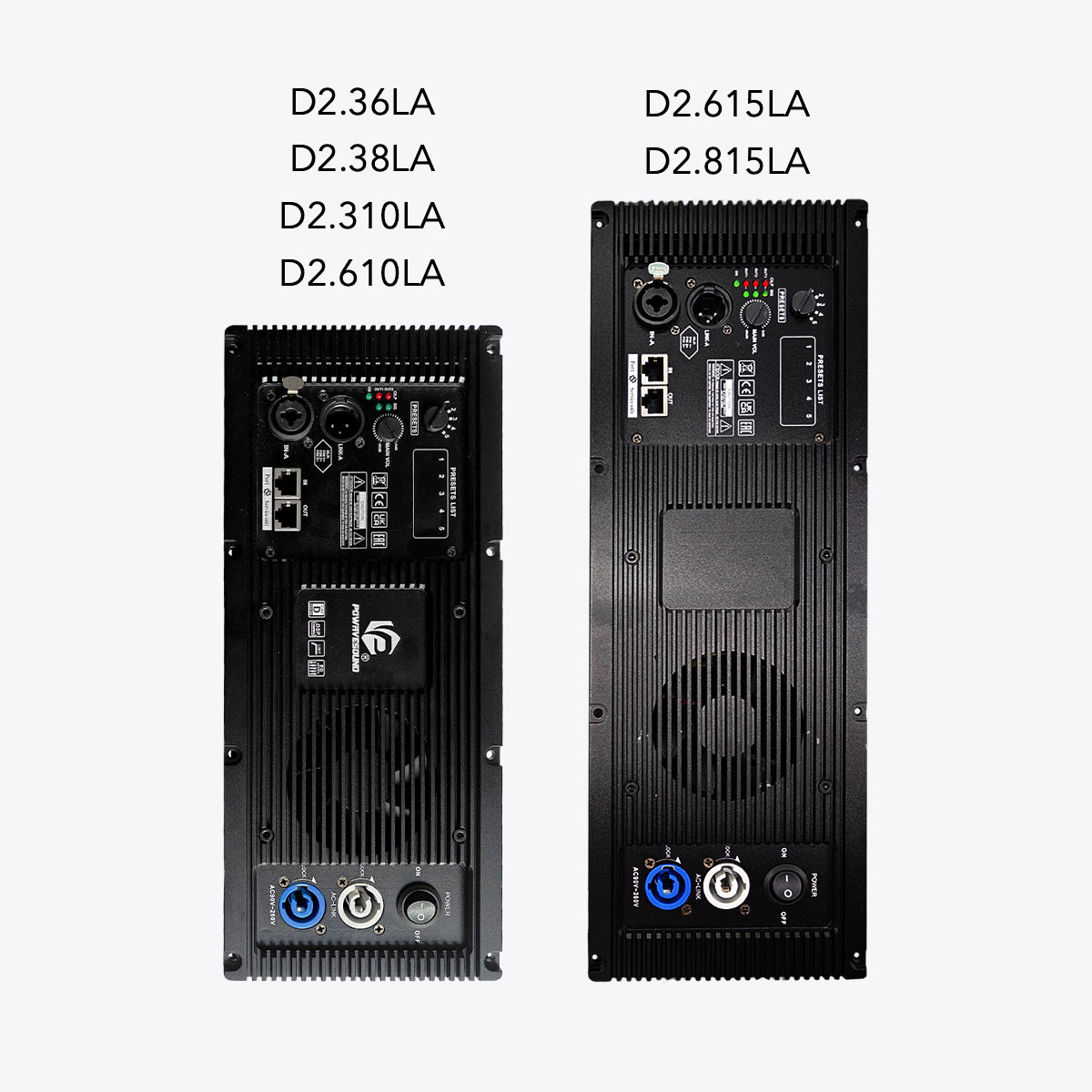

Models D2.36LA, D2.38LA, D2.310LA, D2.610LA, D2.615LA, D2.815LA
DSP Type ADI, ADAU1452, 96kHz, 1in 2out
RMS D2.36LA: OUT1: 300W @8Ω, 500W @4Ω; OUT2: 600W @8Ω, 1000W @4Ω
D2.38LA: OUT1: 300W @8Ω, 500W @4Ω; OUT2: 800W @8Ω, 1400W @4Ω
D2.310LA: OUT1: 300W @8Ω, 500W @4Ω; OUT2: 1000W @8Ω, 2000W @4Ω
D2.610LA: OUT1: 600W @8Ω, 1000W @4Ω; OUT2: 1000W @8Ω, 2000W @4Ω
D2.615LA: OUT1: 600W @8Ω, 1000W @4Ω; OUT2: 1500W @8Ω, 2400W @4Ω
D2.815LA: OUT1: 800W @8Ω, 1200W @4Ω; OUT2: 1500W @8Ω, 2400W @4Ω
Output Circuitry Class D
Frequency Response 20Hz-20kHz(±1dB)(DSP Adjustable)
Total Harmonic Distortion ≤0.05%
Slew Rate ≥40V/μs, ≥50V/μs(D2.615LA, D2.815LA)
Damping Factor ≥400, ≥500(D2.615LA, D2.815LA)
Input Impedance 10K/20K Ohms, unbalanced or balanced
S/N Ratio ≥95dB
Input Sensitivity D2.36LA: 1.4V
D2.38LA: 1.6V
D2.310LA: 1.4V
D2.610LA: 1.4V
D2.615LA: 1.7V
D2.815LA: 1.7V
(DSP Adjustable)
Input/Output Connector XLR
Dimension(W*H*D) 142*332*93.5mm, 142*398*93.5mm(D2.615LA, D2.815LA)
Logistics Information:
Packing Size 42*22*19cm, 52*28*18cm(D2.615LA, D2.815LA)
Shipping Weight 4kg, 6kg(D2.615LA, D2.815LA)
* Testing Standard: EIA, 1kHz sine wave, 40ms, 220V.
* Features and specifications are subject to change without prior notice.
