FIR SE Series 1in 1out
400W~2000W Single Channel Active Speaker Amplifier Module, FIR designer + RMS Limiter
- 400W/600W 600W/900W 800W/1200W 1200W/2000W optional.
- Widely used in 2-way Speaker, Line Array System, Subwoofer.
- Built-in high-performance DSP: AKM7735, 48kHz, 1in 1out, FIR designer + RMS Limiter.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).

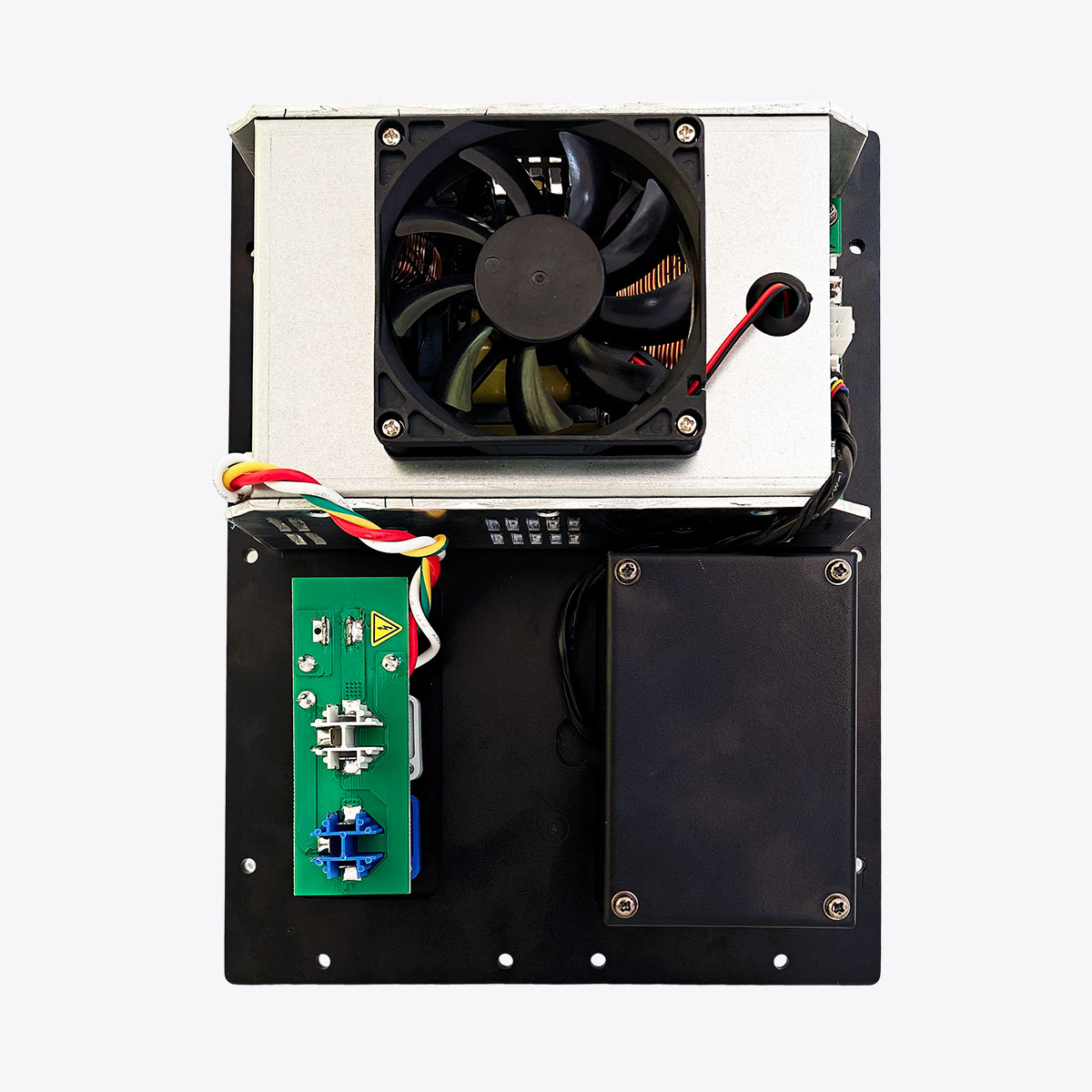

- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | FIR400SE, FIR600SE, FIR800SE, FIR1200SE |
| DSP Type | AKM7735, 48kHz, 1in 1out, FIR designer + RMS Limiter |
| RMS | FIR400SE: 400W @8Ω , 600W @4Ω
FIR600SE: 600W @8Ω, 900W @4Ω FIR800SE: 800W @8Ω, 1200W @4Ω FIR1200SE: 1200W @8Ω, 2000W @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥400 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage) |
| Input Sensitivity | FIR400SE: 0.9V
FIR600SE: 1.1V FIR800SE: 1.3V FIR1200SE: 1.25V (DSP Adjustable) |
| Input/Output Connector | XLR |
| Dimension(W*H*D) | 198*260*86mm |
| Logistics Information: | |
| Packing Size | 42*32*18cm |
| Shipping Weight | 3.5kg |
* Features and specifications are subject to change without prior notice.
