B FIR Series 1in 1out

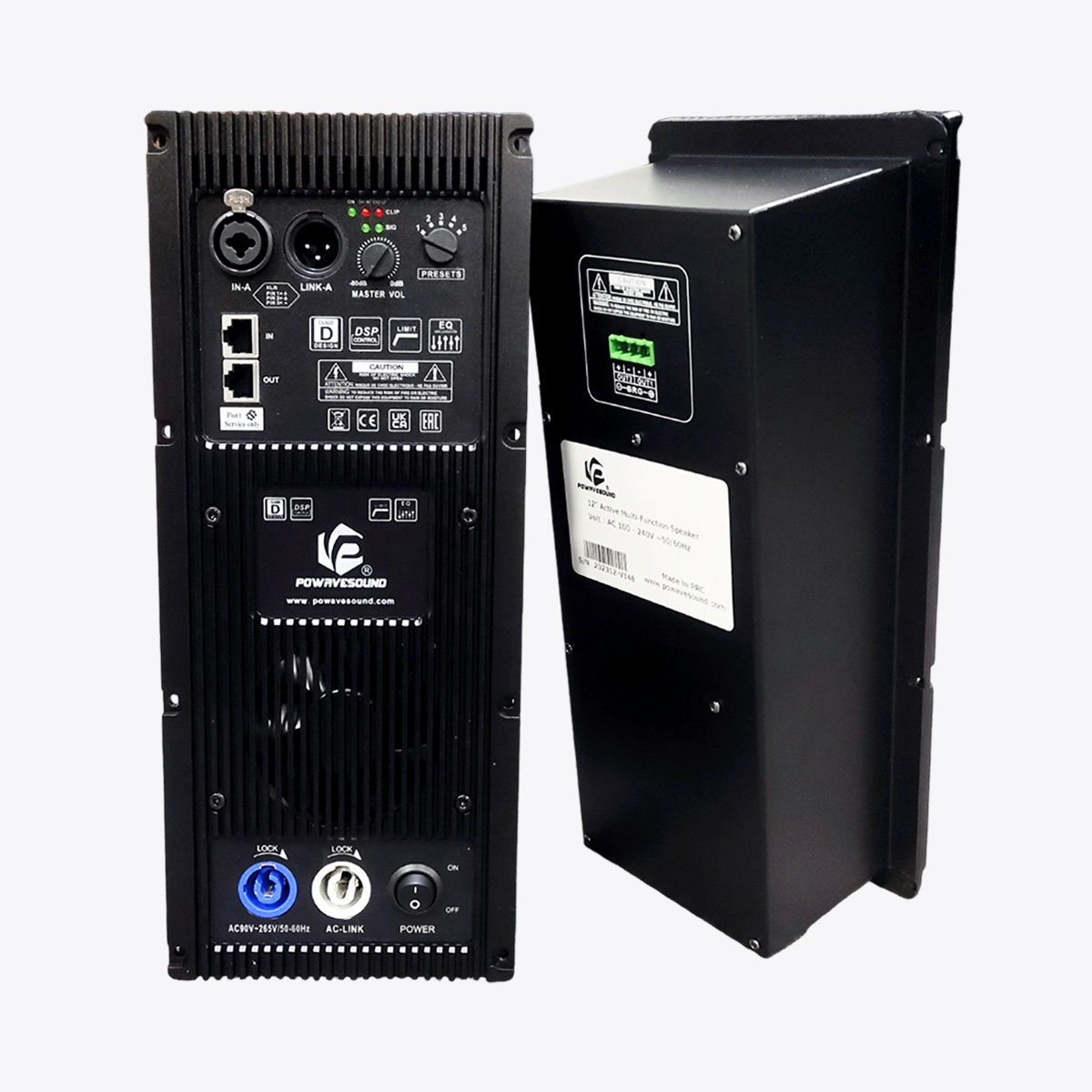

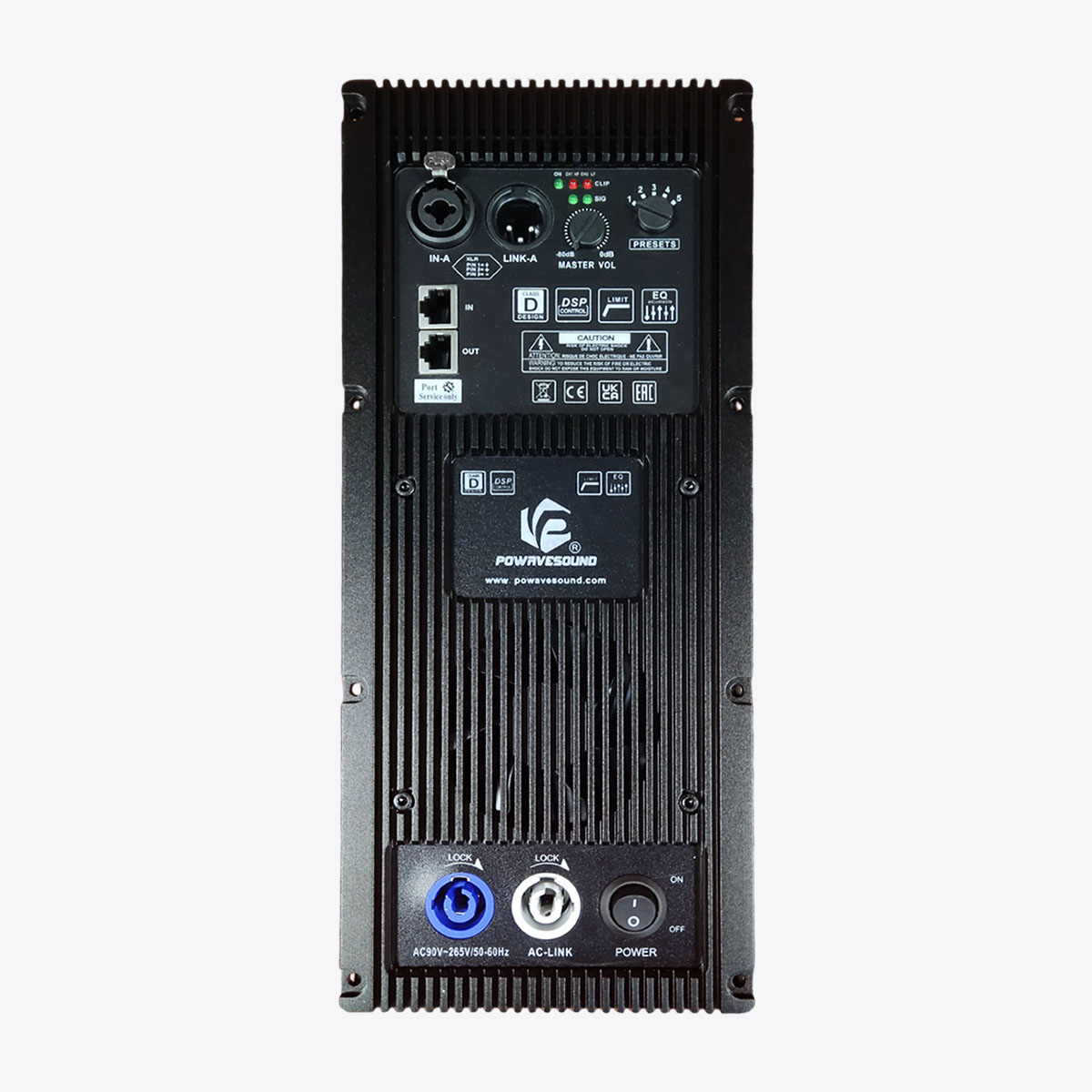

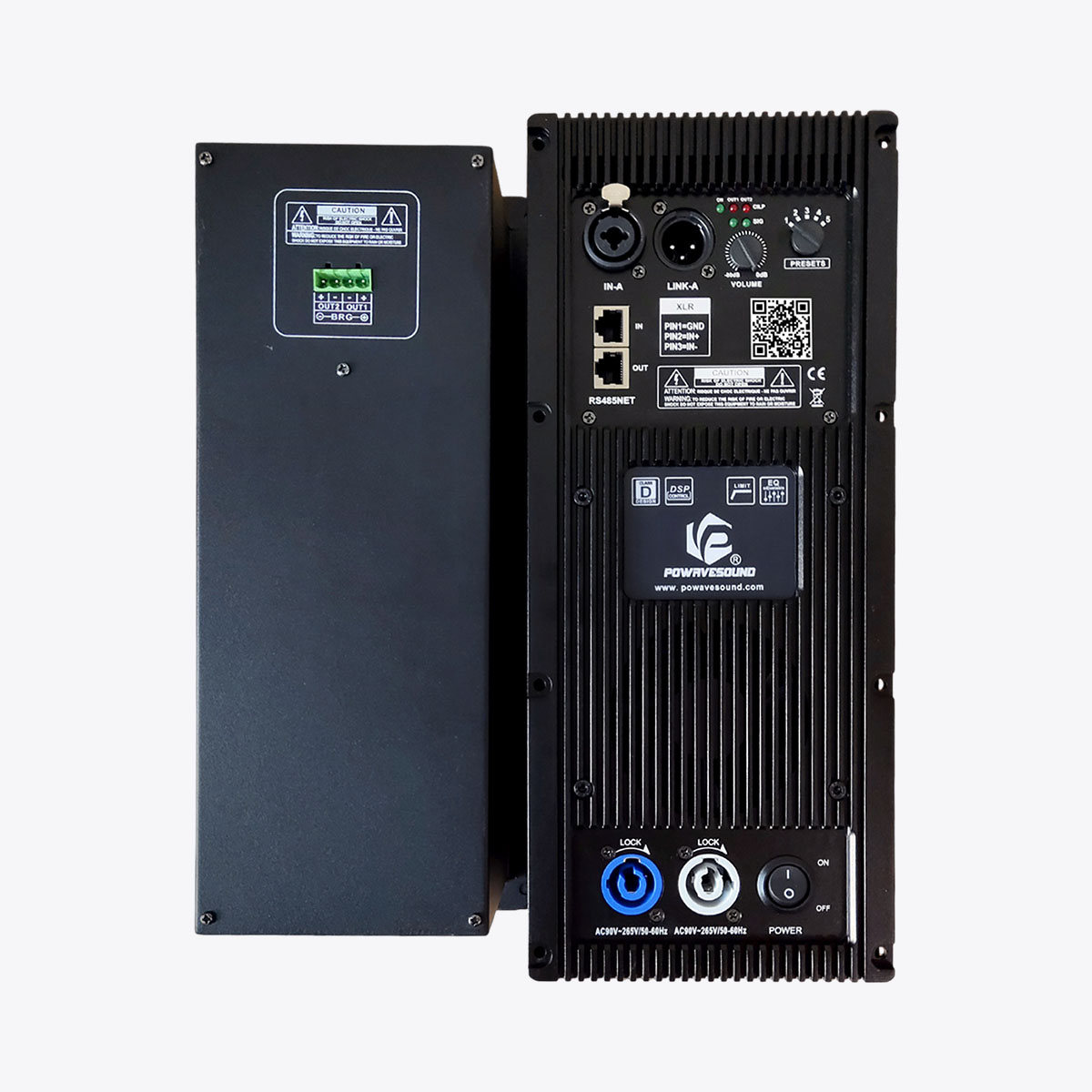

Single Channel Active Speaker Amplifier Module for Subwoofer
- 1500W 2000W 2500W 2800W 3000W 4000W optional.
- Widely used in Single & Double Subwoofer.
- Built-in high-performance DSP: AKM, AK7735, 48kHz, 1in 1out, FIR (512 Taps per Channel) designer.
- Professional-grade audio class D amplifier circuit, Bi-AMP design, RS485 networking.
- A-Guard Protection System: DC protection, Undervoltage protection, Smart overheat management, Soft startup protection, Output overload protection, Input/Output limiter (DSP Adjustable).
- Cooling System: Smart fan cooling system control, Variable speed fans, Back to front venting, Mandatory cooling.
- Compact design, easy integration.
- OEM, ODM and customized services are available.
| Technical Details : | |
|---|---|
| Models | B1.15FIR, B1.20FIR, B1.30FIR, B1.40FIR |
| DSP Type | AKM, AK7735, 48kHz, 1in 1out, FIR (512 Taps per Channel) designer |
| RMS | B1.15FIR: 1500W @8Ω , 2500W @4Ω
B1.20FIR: 2000W @8Ω, 3000W @4Ω B1.30FIR: 2800W @8Ω, N/A @4Ω B1.40FIR: 4000W @8Ω, N/A @4Ω |
| Output Circuitry | Class D |
| Frequency Response | 20Hz-20kHz(±1dB)(DSP Adjustable) |
| Total Harmonic Distortion | ≤0.05% |
| Slew Rate | ≥40V/μs |
| Damping Factor | ≥1000 |
| Input Impedance | 10K/20K Ohms, unbalanced or balanced |
| S/N Ratio | ≥95dB |
| Power Supply | AC 100V-240V ~50/60Hz(Regulated Voltage, SMPS+PFC) |
| Input Sensitivity | 1.7V(DSP Adjustable) |
| Input/Output Connector | XLR |
| Dimension(W*H*D) | 142*332*93.5mm, 192*426*93.5mm(B1.40FIR) |
| Logistics Information: | |
| Packing Size | 42*22*18cm, 52*28*18cm(B1.40FIR) |
| Shipping Weight | 4kg, 8kg(B1.40FIR) |
* Features and specifications are subject to change without prior notice.
